Measurement Configuration Selection - MICRO-EPSILON confocalDT 2421 Quick Manual

Initial Operation
Measurement Configuration
Selection
Conventional measurement con-
figurations (presets) for various
target surfaces are saved in the
controller.
Basic features such as the peak
and material selection and the
calculation functions are already
set in the Presets.

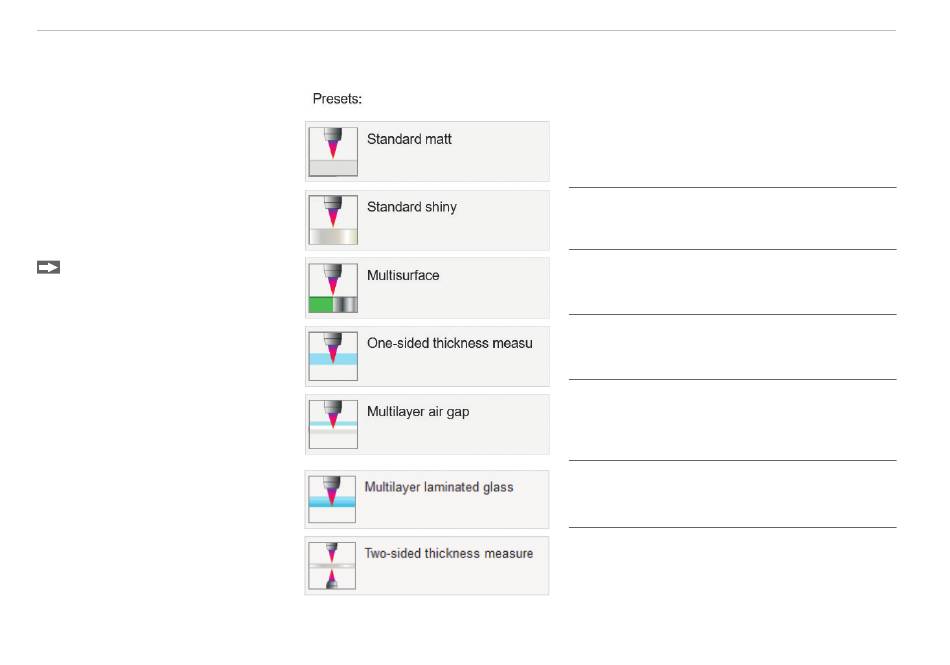

Go to the Home > Measu-
rement configuration
menu and start the Stored
configurations. Select a
configuration or setup.
Then, you can apply your own
settings (setups). When saving a
modified preset, the web inter-
face displays a dialog for ente-
ring a setup name.
confocalDT 2421 / 2422
1) Possible in IFC242x (001) MP controller. 2) Possible in IFC2422 controller.
Distance measurement, e.g., for ceramic mate-
rial, non-transparent plastics. Highest peak, no
averaging, distance calculation.
Distance measurement, e.g., for metal, polis-
hed surfaces. Highest peak, median over 5
values, distance calculation.
Distance measurement, e.g., for PCBs, hybrid
materials. Highest peak, median over 9 values,
distance calculation.
One-sided thickness measurement, e.g., for
glass, BK7 material. First and second peak, no
averaging, thickness calculation.
Layer thickness measurement
glass, e.g. windshield, 1st layer BK7, 2nd layer
PC, 3rd layer BK7, first and second peak, no
averaging.
1
Thickness measurement
glass. 1st layer BK7, 2nd layer air, first and
second peak, median over 5 values.
Two-sided thickness measurement
Highest peak, median over 5 values.
Formula: -1*01DIST -1*02DIST1 + 10
1
for laminated
e.g. for mask under
2
for metal.
