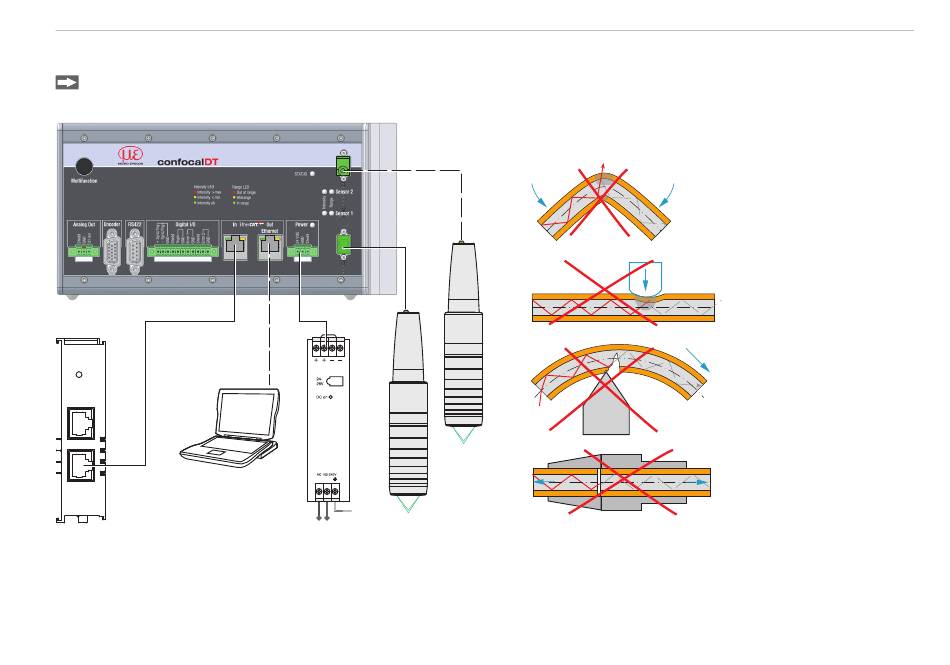

System Design, Connection Options

System Design, Connection Options
Connect the components to one another, install the
sensors in the holders.
Patch cable
Ethernet
Run
X1
X2
EtherCAT
BECKHOFF EK1122 2-port EtherCAT
branch
confocalDT 2421 / 2422
Controller
C240x
Optical fiber
PS2020
PC
N L
PE
PS 2020
230 VAC

Sensor Cable, Optical Fiber

The sensor is connected to the controller by means
of an optical fiber.
- Do not shorten or extend the optical fiber.
- Do not pull or carry the sensor by the cable.
Sensor
The plugs may only be cleaned by persons with the
appropriate expertise.
Do not kink the sen-
sor cable.
Do not squash the
sensor cable, do
not use cable ties to
secure it.
Do not pull the sensor
cable over sharp
edges.
Do not pull on the
sensor cable.
