Features - Danfoss SH090 Application Manuallines

Application Guidelines
SH090-105-120-140-161-184

Features

SH range is composed of SH090-105-120-140-
161-184 (light commercial platform) and SH180-
240-295-380-485 (large commercial platform).
The SH090-105-120-140-161-184 compressors
benefit from a further improved design to
achieve the highest efficiency.
• Gas circulation, motor cooling and oil
behaviour are improved on light commercial
platform models by a new patented motor cap
design.
• Part protection and assembly reduces internal
leaks and increases life durability.
• Improved part isolation reduces greatly
acoustic levels.

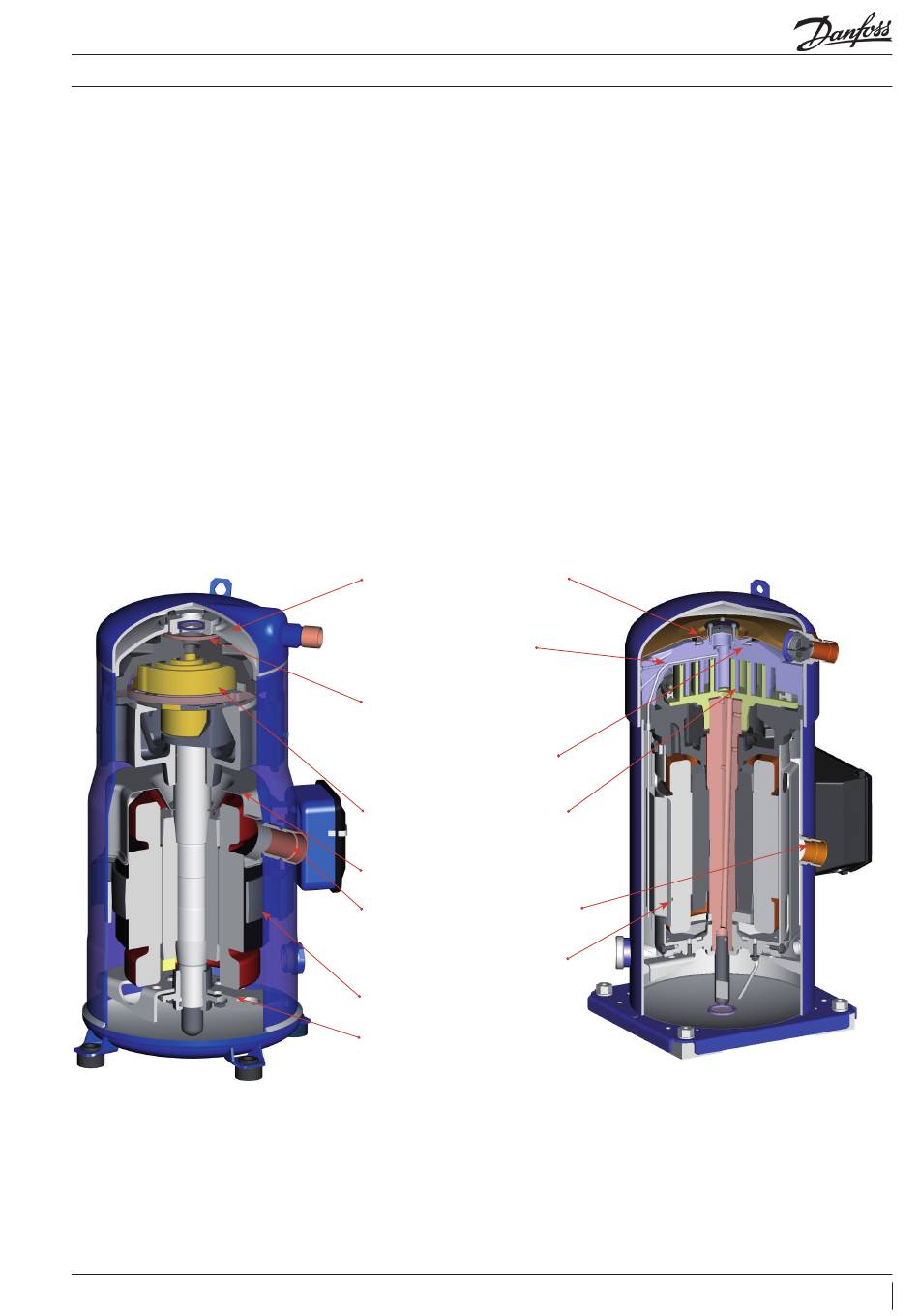

Heat shield that lowers the heat
transfer between discharge and
suction gas and the acoustic level
Integrated discharge gas
temperature protection (SH485)
New PTFE spring seal for even
lower leaks
Intermediate discharge valves
(SH485)
R410A optimized and dedicated
scroll profile
Patented motor cap
Liquid slug protection per suction
fitting in upper position
Patented gas path flow (SH485)
Patented motor centring spacer
Improved lower bearing centring
• Gas intake design induces higher resistance to
liquid slugging.
The SH485 compressors include additional
features for enhanced protection and efficiency:
• integrated discharge gas temperature
protection,
• intermediate discharge valves for higher
seasonal efficiency.
• patented gas path flow.
SH180-240-295-380-485
