Application Guidelines

Motor voltage

Wiring connections

S H 0 9 0 - 1 0 5 - 1 2 0 - 1 4 0 - 1 6 1
Except SH140-161 code 3
SH140&161 code 3 and
SH184
14
AB243586442172en-001301
Electrical data, connections and wiring
Danfoss SH scroll compressors are available in five different motor voltages as listed below.
Motor voltage code
Nominal voltage
50 Hz
Voltage range**
Nominal voltage 200-230V - 3 ph
60 Hz
Voltage range** 180-253 V
* SH295 and 485
** The voltage range indicates where the compressor can run in the majority of the application envelope. A boundary voltage supply
which accumulates under specific conditions such as high ambiance, high superheat, or map boundary conditions, may lead to a
compressor trip.

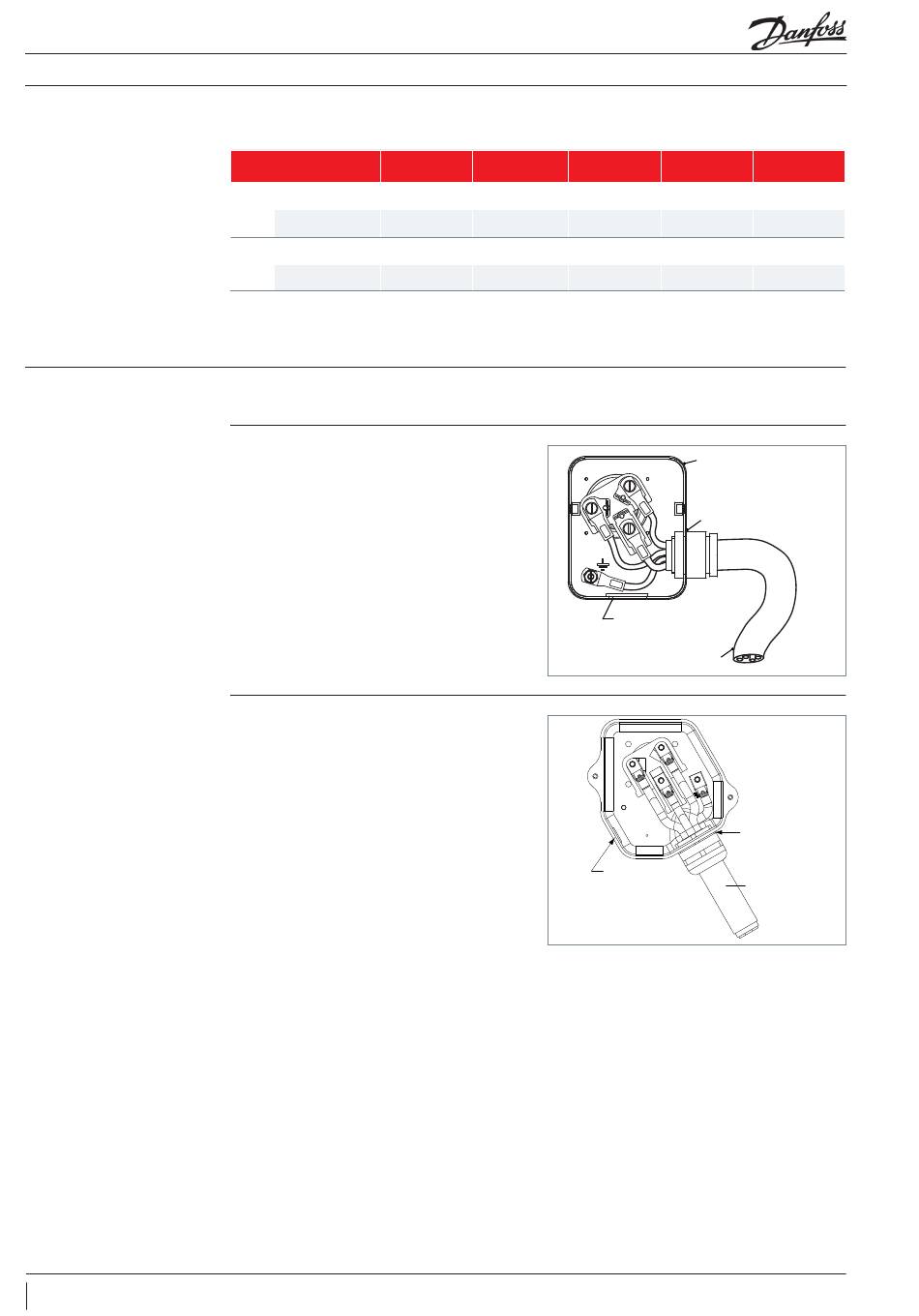

Electrical power is connected to the compressor
terminals by Ø 4.8 mm (3/16") screws.
The terminal box is provided with a Ø 25.5 mm
(ISO25) and a Ø 29 mm (PG21) knockouts.
The terminal box is provided with a
Ø40.5 mm hole (ISO40) for power supply and a
Ø16.5 mm knockout (ISO16).
Code 3 Code 4
380-400V - 3 ph
-
380-415V - 3 ph*
342-440 V
-
342-457V*
460V - 3 ph
414-506 V
The maximum tightening torque is 3 Nm. Use a
1/4" ring terminal on the power leads.
Code 6 Code 7
230V - 3 ph 500V - 3 ph
207-253 V 450 - 550 V
- 575 V-3 ph
- 517-632 V
Terminal box
Ø 25.5 mm knockout
Ø 29 mm knockout
Power supply
Ø 40.5 mm hole
Ø 16.5 mm
knockout
Power supply
Code 9
-
-
380V- 3 ph
342-418 V
