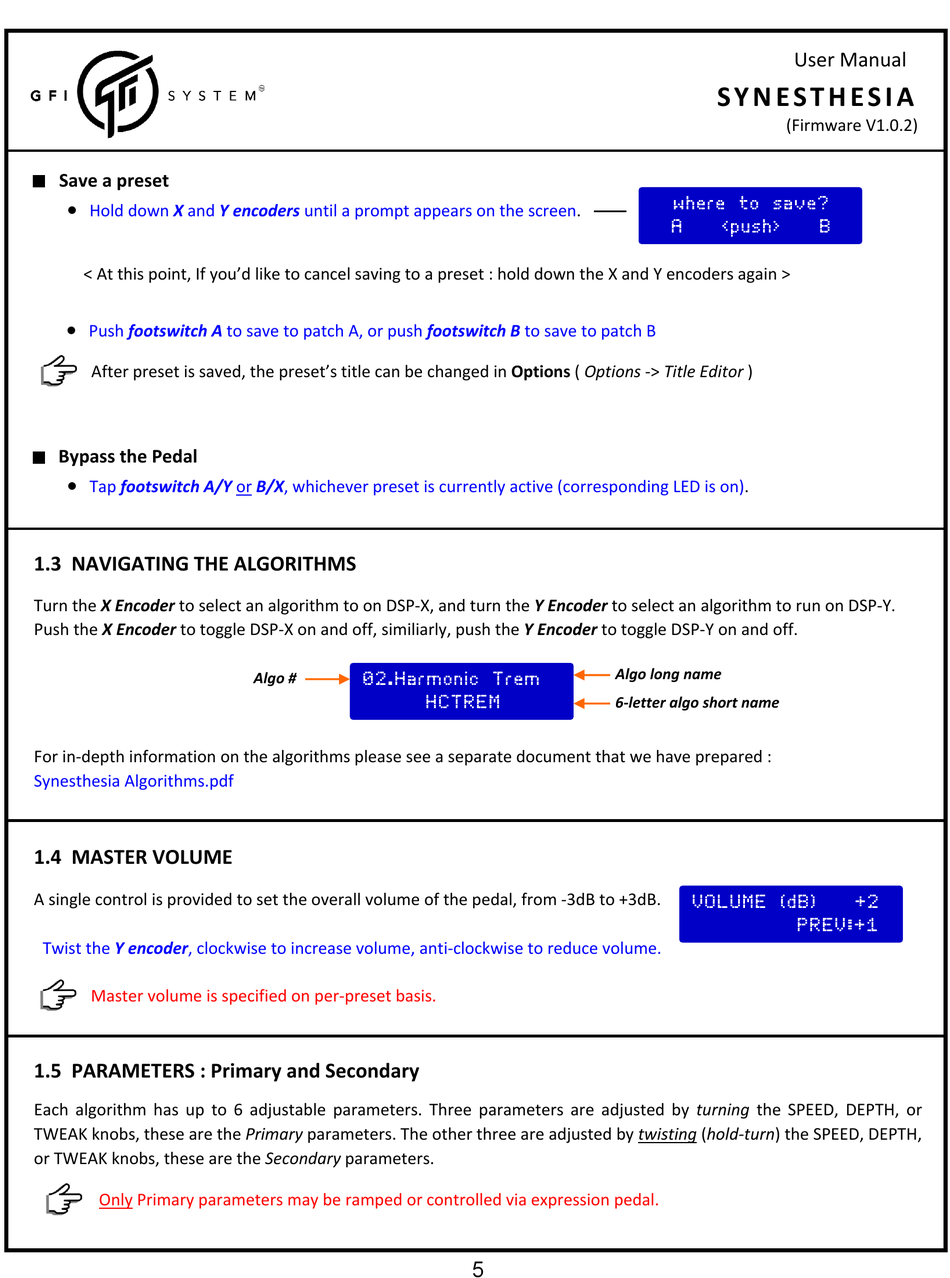

Navigating The Algorithms; Master Volume - GFI System Synesthesia User Manual

Save a preset

Hold down X and Y encoders until a prompt appears on the screen.
< At this point, If you'd like to cancel saving to a preset : hold down the X and Y encoders again >

Push footswitch A to save to patch A, or push footswitch B to save to patch B
After preset is saved, the preset's title can be changed in Options ( Options ‐> Title Editor )
Bypass the Pedal

Tap footswitch A/Y or B/X, whichever preset is currently active (corresponding LED is on).
1.3 NAVIGATING THE ALGORITHMS
Turn the X Encoder to select an algorithm to on DSP‐X, and turn the Y Encoder to select an algorithm to run on DSP‐Y.
Push the X Encoder to toggle DSP‐X on and off, similiarly, push the Y Encoder to toggle DSP‐Y on and off.
For in‐depth information on the algorithms please see a separate document that we have prepared :
Synesthesia Algorithms.pdf
1.4 MASTER VOLUME
A single control is provided to set the overall volume of the pedal, from ‐3dB to +3dB.
Twist the Y encoder, clockwise to increase volume, anti‐clockwise to reduce volume.
Master volume is specified on per‐preset basis.
1.5 PARAMETERS : Primary and Secondary
Each algorithm has up to 6 adjustable parameters. Three parameters are adjusted by turning the SPEED, DEPTH, or
TWEAK knobs, these are the Primary parameters. The other three are adjusted by twisting (hold‐turn) the SPEED, DEPTH,
or TWEAK knobs, these are the Secondary parameters.
Only Primary parameters may be ramped or controlled via expression pedal.
Algo #
02.Harmonic Trem
HCTREM
Algo long name
6‐letter algo short name
5
User Manual
S Y N E S T H E S I A
(Firmware V1.0.2)
where to save?
A <push> B
VOLUME (dB)
PREV:+1
+2
