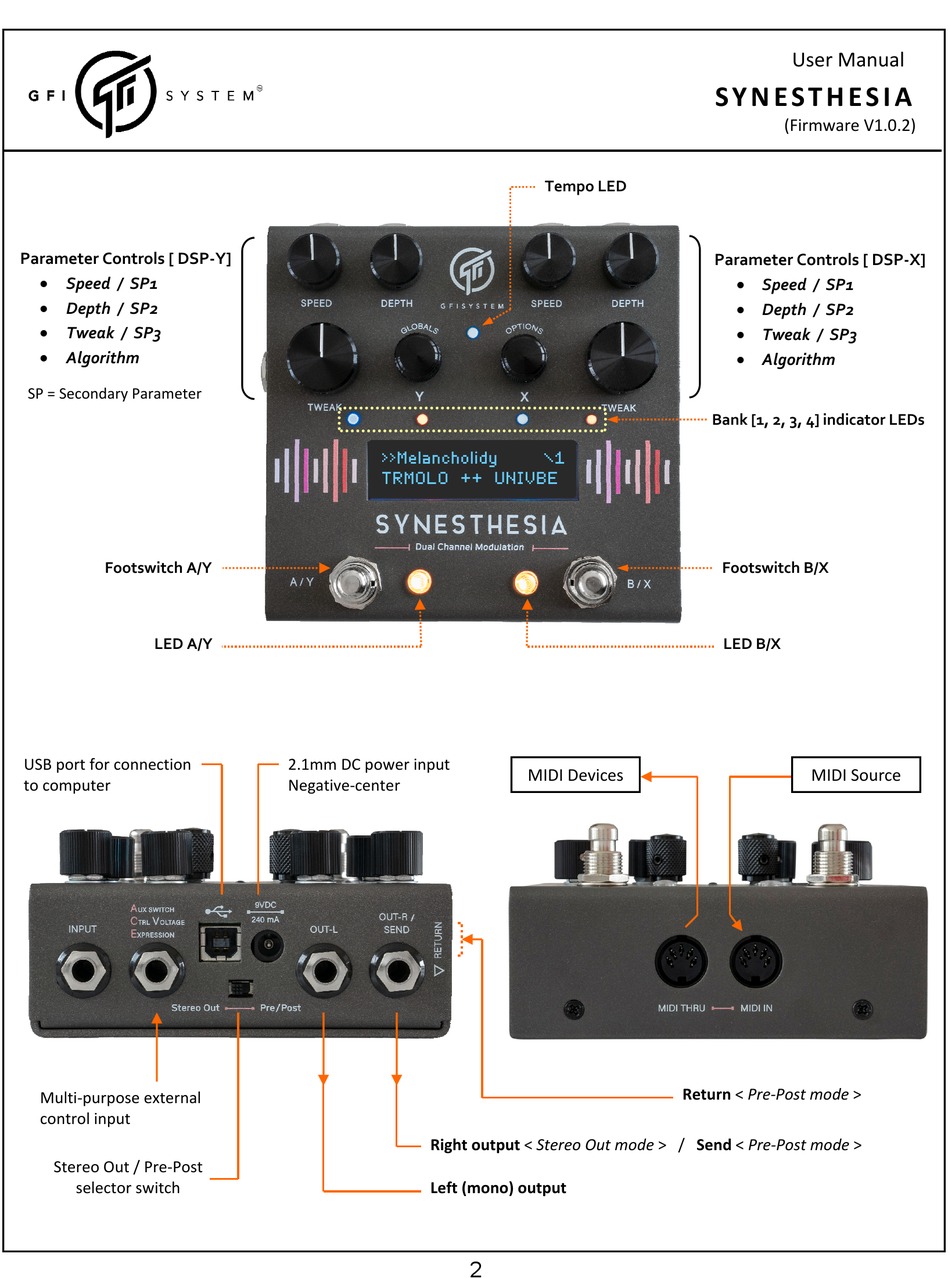

GFI System Synesthesia User Manual page 2

Parameter Controls [ DSP‐Y]

Speed / SP1

Depth / SP2

Tweak / SP3

Algorithm
SP = Secondary Parameter
Footswitch A/Y
LED A/Y
USB port for connection
to computer
Multi‐purpose external
control input
Stereo Out / Pre‐Post
selector switch
>>Melancholidy
TRMOLO ++ UNIVBE
2.1mm DC power input
Negative‐center
Right output < Stereo Out mode > / Send < Pre‐Post mode >
Left (mono) output
Tempo LED
\1
MIDI Devices
2
User Manual
S Y N E S T H E S I A
(Firmware V1.0.2)
Parameter Controls [ DSP‐X]

Speed / SP1

Depth / SP2

Tweak / SP3

Algorithm
Bank [1, 2, 3, 4] indicator LEDs
Footswitch B/X
LED B/X
MIDI Source
Return < Pre‐Post mode >
