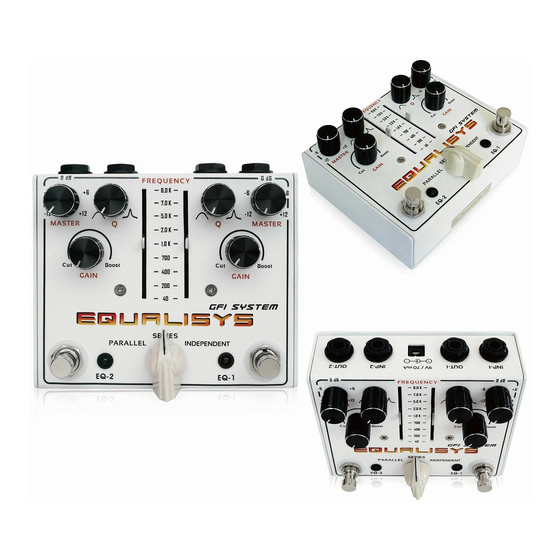

Thank you for purchasing Equalisys, please take some time to read this brief user guide to
help you get the best out of this extraordinary EQ pedal.
Equalisys consists of 2 separate parametric EQs which can be combined in three different
ways: series, parallel, and independent. Each EQ has its own gain, bandwidth (Q), center
frequency, and master volume. The variety of ways in which the two EQs can be combined
makes it a very versatile tool to sculpture your tone for various setups.

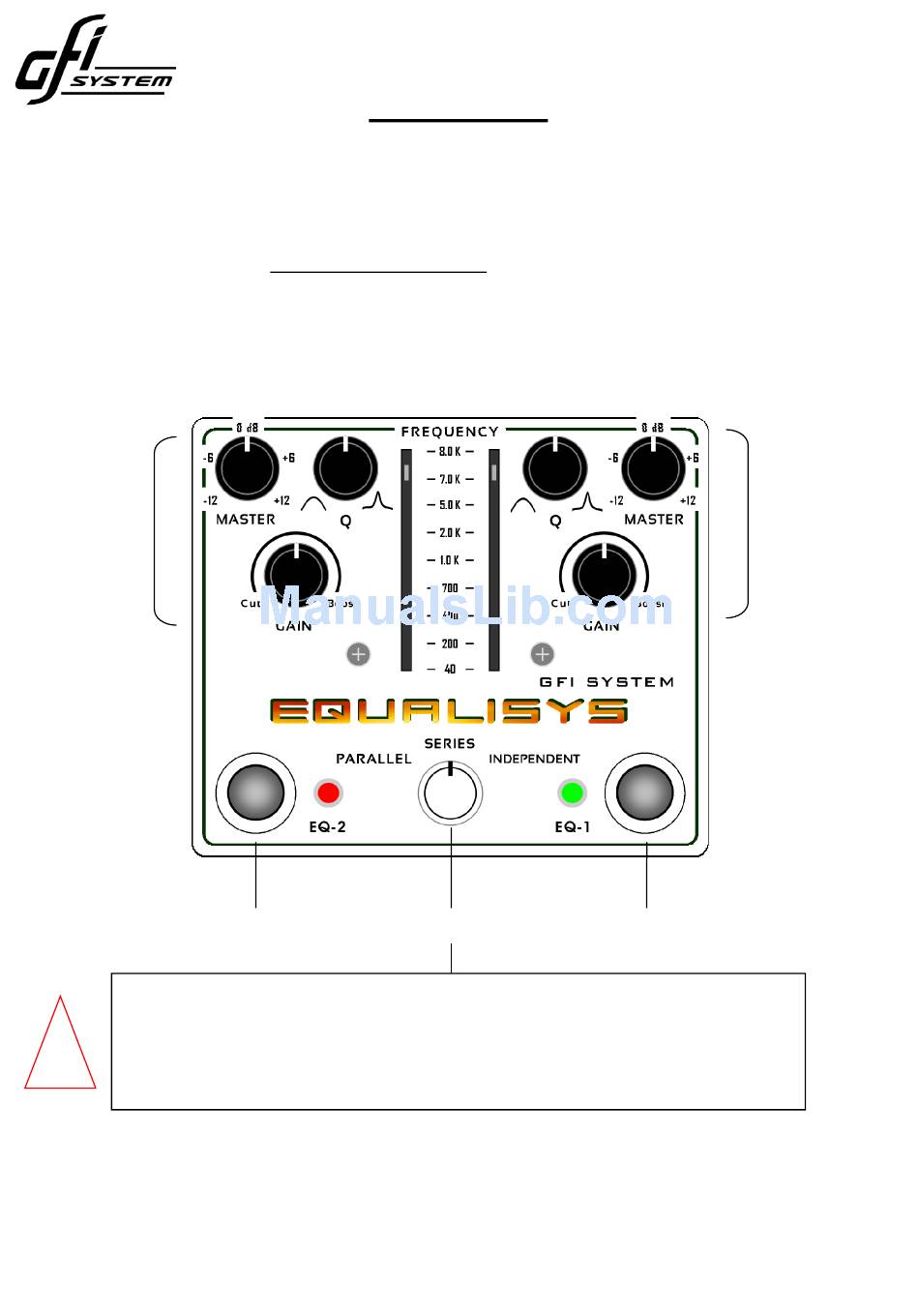

( EQ-2)
ENGAGE / BYPASS (EQ-2)
CAUTION
When the mode switch is operated with the EQs engaged a thump may be produced
!
at the amp's speaker. To avoid damaging your speaker disengage (bypass) the EQ
before changing the Series / Parallel / Independent configuration.
User Manual
EQUALISYS
Multimode Parametric EQ
MODE SWITCH
ENGAGE / BYPASS (EQ-1)
CONTROLS
(EQ-1)
1
Advertisement
Table of Contents
Related Manuals for GFI System Equalisys
Summary of Contents for GFI System Equalisys
- Page 1 EQUALISYS Multimode Parametric EQ Thank you for purchasing Equalisys, please take some time to read this brief user guide to help you get the best out of this extraordinary EQ pedal. Equalisys consists of 2 separate parametric EQs which can be combined in three different ways: series, parallel, and independent.
- Page 2 Parametric EQ Explained A Parametric EQ (PEQ) is a little harder to user than a Graphical EQ (GEQ), but it is a much more powerful tone-shaping tool. Unlike a GEQ, a PEQ gives you full control over all three EQ parameters : Gain, Frequency, and Q (bandwidth). Gain knob allows you to boost or cut your signal at a specific frequency.
- Page 3 User Manual EQUALISYS Multimode Parametric EQ Controls GAIN controls the boost / cut gain of the filter. Center position (12 o’clock) is flat setting, neither boost nor cut is applied. Range: -15 dB to +15 dB. Q controls the bandwidth (sharpness) of the filter’s resonance. Turn up the knob clockwise to get sharper resonance (smaller bandwidth).
- Page 4 (OUT-1 and OUT-2). This configuration is useful when you want to apply different EQ curves to two different effect chains or amps. You can also use Equalisys as a splitter pedal with individual volume control (set GAIN knob at mid- point).
- Page 5 User Manual EQUALISYS Multimode Parametric EQ EQUALISYS Overdrive/ EQ-2 EQ-1 Distortion OUT-2 INP-2 OUT-1 INP-1 Post-Equalization Pre-Equalization EQUALISYS EQ-2 EQ-1 SEND OUT-2 INP-2 OUT-1 INP-1 RETURN Post-Equalization Pre-Equalization Features: • 2 integrated parametric EQs with separate set of controls. •...
