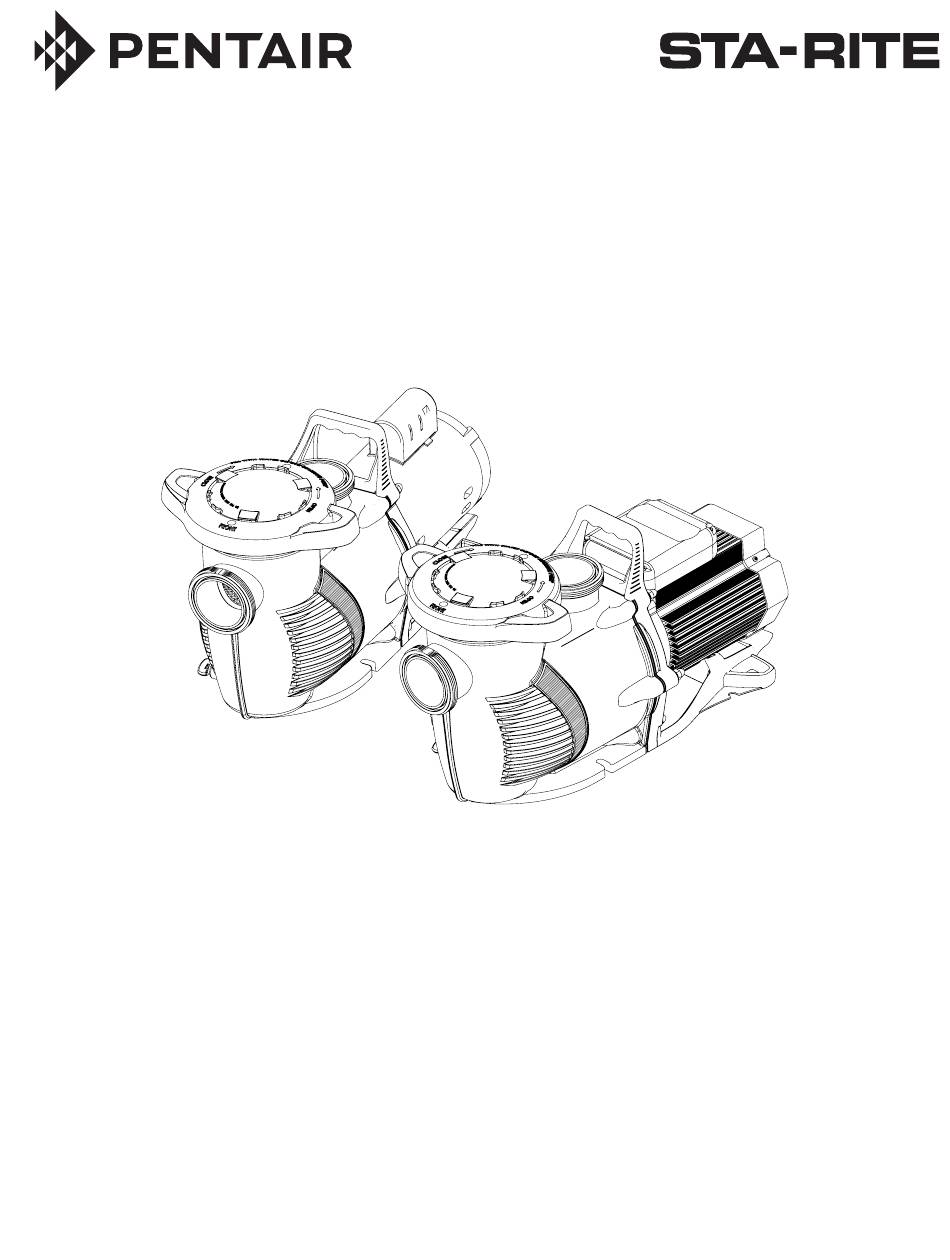

- Page 1 WHISPERFLO MAX-E-PRO ™ ™ HIGH PERFORMANCE PUMPS INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) -
Page 3: Important Pump Warning And Safety Instructions
230 VAC charge even when there is no This guide provides installation and operation instructions for this pump. power to the unit. Consult Pentair with any questions regarding this equipment. • The pump is not submersible. Attention Installer: This guide contains important information about the •... - Page 4 For Installation of Electrical Controls at Equipment Pad (ON/OFF Switches, Timers and Automation Load Center) Warnings and safety instructions for Pentair Aquatic Systems pumps Install all electrical controls at equipment pad, such as and other related products are available at: on/off switches, timers, and control systems, etc.
-
Page 5: Pump Overview
PUMP OVERVIEW Pump Features The WhisperFloXF and Max-E-ProXF High ™ ™ Performance Pumps are specifically designed to be the best choice for a variety of inground pools. A heavy duty 56 square flange motor, and highly engineered hydraulics make this rugged and tested design perfect for any pool, spa, water feature, or fountain. -
Page 6: Installation
4. For most installations Pentair recommends installing a 3. Use a check valve in the discharge line when using this valve on both the pump suction and return lines so that pump for any application where there is significant height the pump can be isolated during routine maintenance. -
Page 7: Electrical Installation
Note the rotation of the motor fan or shaft as it comes to a stop. If wired correctly the motor shaft and/or fan will Pentair offers GFCI breakers which offer appropriate personal protection while meeting 2008 to current NEC Standards for match the rotation arrow noted on the pump. -
Page 8: Operating The Pump
OPERATING THE PUMP DO NOT run the pump dry. If the pump is run dry, the mechanical seal will be damaged and the pump will start leaking. If this occurs, the damaged seal must be replaced. ALWAYS maintain proper water level in your pool (half way up skimmer opening). -
Page 9: Maintenance
MAINTENANCE DO NOT open the strainer pot if pump fails to prime or if pump has been operating without water in the strainer pot. Pumps operated in these circumstances may experience a build up of vapor pressure and may contain scalding hot water. Opening the pump may cause serious personal injury. -
Page 10: Servicing
SERVICING Always disconnect power to the pump at the circuit breaker and disconnect the communication cable before servicing the pump. Failure to do so could result in death or serious injury to service people, users or others due to electric shock. Read all servicing instructions before working on the pump. -
Page 11: Pump Reassembly
Pump Reassembly 1. Install the spring end of the mechanical seal onto the 8. Assemble the motor subassembly to the housing. impeller shaft. Be sure black/carbon face is facing Do not tighten the nuts and washers until all four outward. (4) motor bolts are in place. -
Page 12: Troubleshooting
TROUBLESHOOTING RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. Improperly installation will create an electrical hazard which could result in death or serious injury to pool users, installers, or others due to electrical shock, and may also cause damage to property. 1. If you are not familiar with your pool filtering system and/or heater: a. -
Page 13: Replacement Parts
REPLACEMENT PARTS Illustrated Parts List Item No. Description WhisperFlo XF Max-E-Pro XF 400000 401000 Wet End Assembly See Power End Table Power End Assembly 410020 Union Kit Without Tap 400006 401006 Lid/Locking Ring Assembly 400007z XF Series Replacement Basket 35505-1440 Lid/Locking Ring O-Ring 192115 Drain Plug O-Ring... -
Page 14: Motor Table
Motor Table Model Name and Specs Motor P/N Power End P/N WhisperFloXF Max-E-ProXF Description WhisperFloXF Max-E-ProXF WhisperFloXF Max-E-ProXF XF-8 XP-8 2hp Standard Eff 230V 355026s 355027s 400612z 401612z XF-12 XP-12 3hp Standard Eff 230V 355033s 355034s 400613z 401613z XFE-8 XPE-8 2hp High Eff 208-230V 355014s 355015s... -
Page 15: Technical Data
TECHNICAL DATA Pump Performance Curves Volumetric Flow Rate in US Gallons Per Minute Pump Model Performance Curve WhisperFloXF Max-E-ProXF XFE-20, XFJ-20, XPE-20, XPJ-20, XFK-20, XFET-20 XPK-20, XPET-20 XFE-12 XFJ-12, XPE-12, XPJ-12, XFK-12, XFET-12 XPK-12, XPET-12 XFDS-12 XPDS-12 XF-12 XP-12 XFE-8, XF-8, XFE-30, XPE-8, XP-8, XPE-30, XFET-8, XF-30, XFJ-8, XPET-8, XP-30, XPJ-8,... -
Page 16: Pump Dimensions
Pump Dimensions ALLOW 3” HORIZONTAL CLEARANCE FOR TEFC FAN CIRCULATION 12” [298mm] 11.4” [288mm] 14” [358mm] 9.125” [232mm] 10.2” 10.5” 4.4” [258mm] [267mm] [113mm] 1/2” WRENCH FLATS ON MOTOR SHAFT 6.5” 6.6” 166mm] [168mm] 11” HEIGHT TO 1/2” [276mm] ANCHOR BOLT MOUNTING LOCATIONS NPT CONDUIT RECEPTACLE DIMENSION “A”... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
Need help?
Do you have a question about the Sta-Rite WhisperfloXF and is the answer not in the manual?
Questions and answers

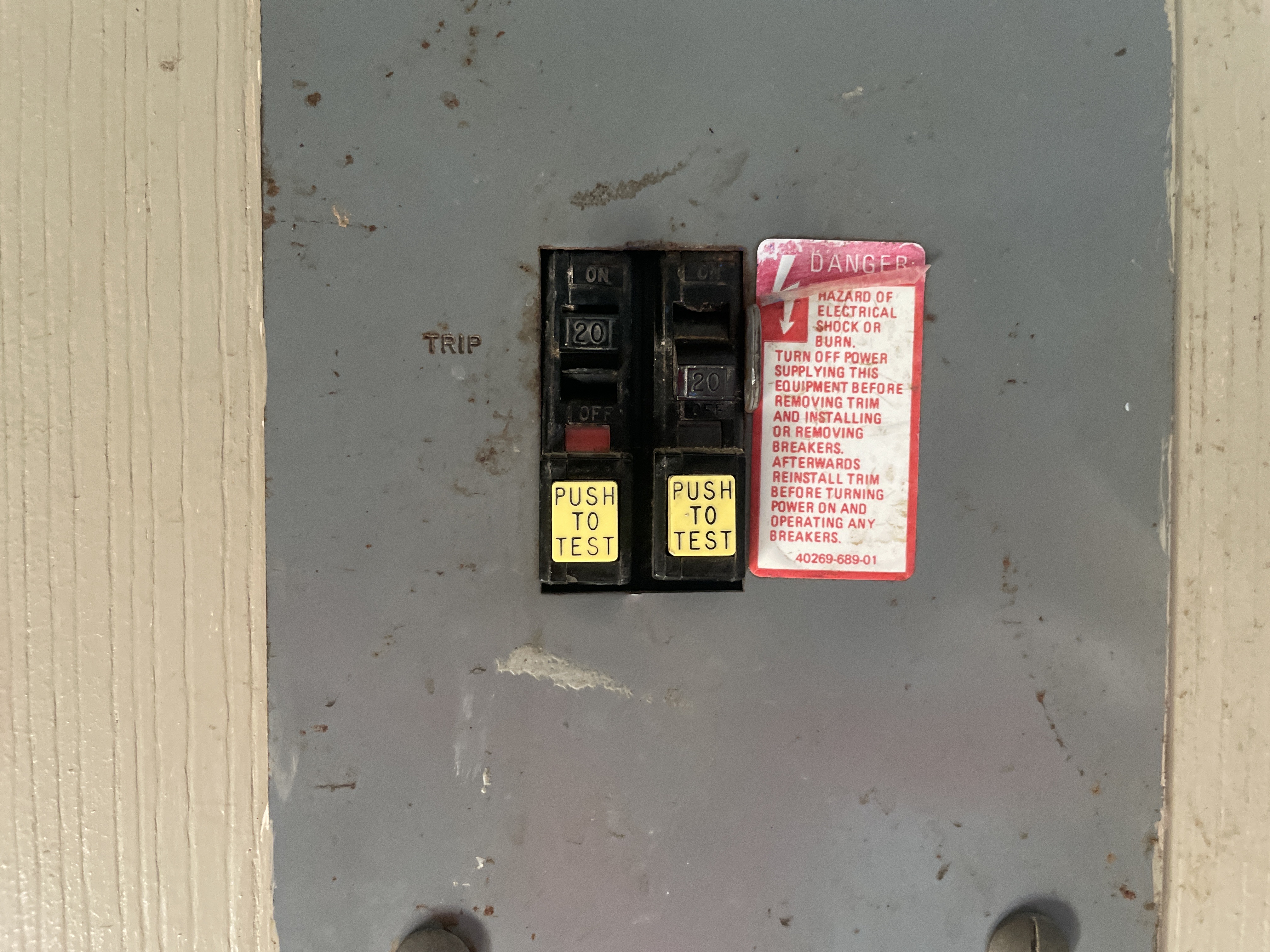

I have a new Pinter Superflow high-performance pump only one week old. I shut off the pump to turn the dial to backwash when I went to start the pump up again all it did was hum. I pressed reset on the breaker box on the wall and it still kicked it out When I went to start what could be wrong? Is there a reset button or breaker on the actual pump itself? Why does it keep throwing out the breaker box? I don’t understand..
