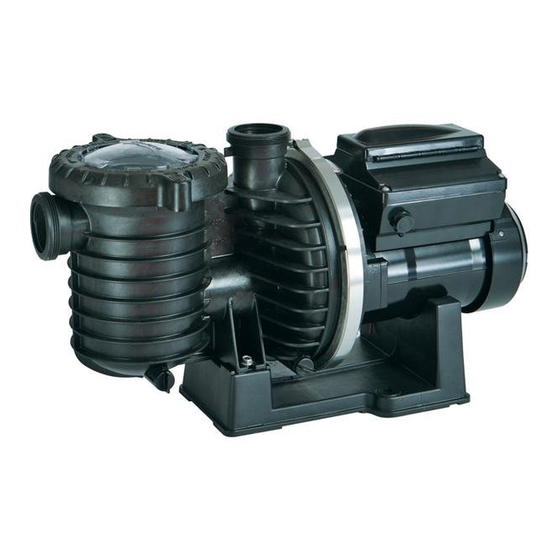

- Page 1 INTELLIPRO VARIABLE SPEED ® ULTRA ENERGY EFFICIENT PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS INTELLIPRO Variable Speed Pump Installation and User’s Guide ®...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Water Pool and Spa replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) -
Page 3: Important Pump Warning And Safety Instructions
This guide provides installation and operation instructions for the IntelliPro ® power to the unit. Variable Speed Pump. Consult Pentair with any questions regarding this • The pump is not submersible. equipment. • The pump is capable of high flow rates; use caution when installing... - Page 4 (D) Disabled submerged outlets, or (E) Suction outlets shall be reconfigured into return inlets. Warnings and safety instructions for Pentair Aquatic Systems For Installation of Electrical Controls at Equipment Pad (ON/OFF pumps and other related products are available at: http://www.pentairpool.com/pool-owner/safety-warnings/ or call...
-
Page 5: Pump Overview
PUMP OVERVIEW External Control The IntelliPro Variable Speed Pump can be ® programmed to run at specific speeds and time IntelliTouch, EasyTouch, SunTouch control systems intervals for maximum operating efficiency and energy and IntelliComm communication centers can remotely conservation for a variety of inground pools. control the IntelliPro Variable Speed pump. -
Page 6: Installation
INSTALLATION Only a qualified plumbing professional should install the IntelliPro Variable Speed Pump. Refer to “Pump Warning ® And Safety Instructions” on pages ii - iii for additional installation and safety information. Location REAR CLEARANCE Be sure the pump location meets the following 3 IN. -
Page 7: Electrical Wiring Installation
POWER LINE TERMINALS. Pentair offers 2-Pole 20 Amp GFCI breakers (P/N PA220GF) which offer 6 milliamp personnel protection while meeting 2008 to current NEC Standards for Pool Pumps. -
Page 8: Operating The Pump
OPERATING THE PUMP NOTE: Speed 1 is the default filtration speed. When setting up the IntelliPro Variable Speed Pump, the user must set the ® pump’s internal clock and establish an operation schedule by following the steps in this manual. Please refer to user’s guide sections: ‘Set Time’... -
Page 9: Using The Operator Control Panel
Using the Operator Control Panel Use the operator control panel to start and stop the IntelliPro ® Variable Speed Pump, program, set, and change speeds (RPM), and access pump features and settings. Controls and LEDs on Key Pad 12:15 Speed 1: Press to select Speed 1 (750 RPM). LED on 750 RPM indicates Speed 1 is active. -
Page 10: Starting And Stopping The Pump
Pump Operating Modes Stopping and Starting the Pump The IntelliPro Variable Speed Pump can be ® Starting the Pump programmed in three different modes: 1. Be sure the pump is powered on and the green Manual, Schedule, and Egg Timer. power LED is on. -
Page 11: Control Panel: Pump Menu Guide
Operator Control Panel: Pump Menu Guide MENU Press MENU button to access menus Pump Address (1-16) Default: ADDRESS 1 SETTINGS (pages 8-10) Set Time (hr:mm) Default: 12:00 AM AM/PM Set AM/PM 24 hr. Temperature Unit Fahrenheit - Default: F° C° Celsius Screen Contrast (1-5) Default 3 English - Default: English... -
Page 12: Pump Settings
MENU Pump Menu: Settings Set AM/PM or 24 Clock (1-16) Default: ADDRESS 1 Pump Address SETTINGS To change the time from a 12 hour clock (AM/PM) to a Set Time (hr:mm) Default: 12:00 AM Pump Address 24 hour clock: AM/PM Set AM/PM The default pump address is #1 and only needs to be 1. -
Page 13: Language
MENU Pump Menu: Settings 5. Press Select to change the setting. The cursor will Pump Address (1-16) Default: ADDRESS 1 SETTINGS appear in the first number column. Set Time (hr:mm) Default: 12:00 AM Language 6. Press the Up or Down arrows to change the minimum speed setting from 450 to 1700 RPM. - Page 14 MENU Pump Menu: Settings (1-16) Default: ADDRESS 1 Pump Address SETTINGS Set Time (hr:mm) Default: 12:00 AM Setting Password AM/PM Set AM/PM 1. Check that the green power LED is on. 24 hr. 2. Press Menu. Press Select to select “Settings”. Temperature Unit Fahrenheit - Default: F°...
-
Page 15: Setting Speeds 1-8
MENU Pump Menu: Speeds 1-8 Manual Speed 1 (1-4) Set Speed - Default: MANUAL SPEED 1-8 Schedule Set Speed Set Start Time Pump Operating Modes • Manual: Assigns a speed to one of the four Speed Set Stop Time buttons on the control panel. This mode can only be Egg Timer Set Speed The IntelliPro... -
Page 16: Setting Speeds 1-8 In Schedule Mode
MENU Pump Menu: Speeds 1-8 Manual Speed 1 (1-4) Set Speed - Default: MANUAL SPEED 1-8 Schedule Set Speed Set Start Time Set Speeds 1-8 in Schedule Mode Set Stop Time 12:15p 12:15p Egg Timer Set Speed In Schedule mode, Speeds 1-8 can be programmed Time Schedule 750 RPM... -
Page 17: Features
MENU Pump Menu: Features Time Out Duration (1 min. to 10 hrs.) Default: 3 hours Time Out FEATURES Set Speed (1100 -3450 RPM) Default: 3450 RPM Quick Clean Quick Clean 6. Then press Select again to choose “Timeout Time (1 min. to 10 hrs.) Default: 10 minutes Duration”. -
Page 18: Setting Priming Features
MENU Pump Menu: Priming PRIMING Default: Enabled DISABLED/ENABLED (1 min. to 30 min. hrs.) Default: 11 minutes MAX PRIMING TIME Priming Features (1 - 100%) Default: 1 PRIMED SENSITIVITY Default: ENABLED DISABLED/ENABLED (1 second - 10 minutes) Default: 20 seconds PRIMING DELAY Allows IntelliPro ®... -
Page 19: Disabling Priming With An Automation System
MENU Pump Menu: Priming PRIMING Default: Enabled DISABLED/ENABLED (1 min. to 30 min. hrs.) Default: 11 minutes MAX PRIMING TIME Disabling Priming with an Automation System (1 - 100%) Default: 1 PRIMED SENSITIVITY When the IntelliPro Variable Speed Pump is connected To disable priming with an automation system: ®... -
Page 20: Anti Freeze
MENU Pump Menu: Anti Freeze Disabled / Enabled - Default: Enabled ANTI FREEZE DISABLED/ENABLED PRIMING Default: Enabled DISABLED/ENABLED SET SPEED (1 min. to 30 min. hrs.) Default: 11 minutes MAX PRIMING TIME Set Speed (750 RPM - 3450 RPM) Default 1000 RPM To Set Anti Freeze Speed and Pump Temperature: The sensor for Anti Freeze is in the drive, on top of the motor. -
Page 21: Connecting To An Automation System
CONNECTING TO AN AUTOMATION SYSTEM External Control with IntelliComm Wiring Terminal Descriptions for IntelliComm ® Communication Center Communication Center Use the RS-485 communications cable to remotely Terminal Terminal Max. Phase Voltage Frequency control the pump from an IntelliComm communication Number Name Current Type... - Page 22 To connect the IntelliPro Variable Speed Pump ® IntelliTouch COM port (J7/8): Connect the GREEN communication cable to EasyTouch or IntelliTouch ® ® (#2) and YELLOW (#3) wires to the COM port (J20) Control System load center: screw terminals (#2 and #3). Be sure to match the 1.
-
Page 23: Connecting To Suntouch Systems
Connecting the Pump to a SunTouch Control System ® The IntelliPro Variable Speed Pump can be controlled by ® Switch OFF main system power to the SunTouch a SunTouch control system via the RS-485 communication system power center before making any cable. -
Page 24: User Maintenance
MAINTENANCE DO NOT open the strainer pot if the IntelliPro Variable Speed Pump fails to prime or if pump has been operating without water in ® the strainer pot. Pumps operated in these circumstances may experience a build up of vapor pressure and may contain scalding hot water. -
Page 25: Servicing
SERVICING Always disconnect power to the IntelliPro ® Variable Speed Pump at the circuit breaker and disconnect the communication cable before servicing the pump. Failure to do so could result in death or serious injury to service people, users or others due to electric shock. -
Page 26: Pump Reassembly
Pump Reassembly/Installing New Seal Note: Clamp knob can be located in any position 1. Clean the ceramic seat of dirt, grease, dust, etc. Wet the outer edge of the rubber cup on the ceramic around volute; if it is moved after assembly, tighten seat with water. -
Page 27: Alerts And Warnings
Drive Assembly Removal and Installation Alerts and Warnings The IntelliPro Variable Speed Pump displays all alarms ® Before installing this product, read and follow all and warnings on the control panel display. When an alarm warning notices and instructions on page ii - iii. or warning condition exists, the corresponding light will be lit on the display. -
Page 28: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Pump failure. Pump will not prime - Air leak in suction. Check suction piping and valve glands on any suction PRIME ERROR may be displayed. gate valves. Secure lid on pump strainer pot and be (For alert display sure lid gasket is in place. - Page 29 Troubleshooting, Continued Problem Possible Cause Corrective Action Inadequate circulation. Filter or pump basket dirty. Check trap basket; if plugged, turn pump off and clean basket. (For alert display messages, refer to Alerts Check and clean pool filter. and Warning on page 23). Increase piping size.
-
Page 30: Replacement Parts
REPLACEMENT PARTS IntelliPro Variable Speed Pump Replacement Parts (Black Colored Pumps) ® 18 10 Box A Pkg. 188 2” Slip Union Kit: (Included with the pump) 24 23 U11-200PS Union Collar (2) U9-362 O-Ring (2) 17 27 U11-196PS 2” Slip Adapter (2) Pkg. -
Page 31: Pump Dimensions
Pump Dimensions 11 1/8 26 1/4 11 7/16 14 1/2 14 1/2 10 3/4 Pump Performance Curves 3450 rpm 3110 rpm 2350 rpm 1500 rpm 750 rpm U.S. Gallons per minute Cubic Meters per hour Electrical Specifications Circuit Protection: Two-pole 20 AMP device at the Electrical Panel. Input: 230 VAC, 50/60 Hz, 3200 Watts INTELLIPRO Variable Speed Pump Installation and User’s Guide... -
Page 32: Operator Control Panel Quick Reference Guide
Operator Control Panel: Pump Menu Quick Reference Guide MENU Press MENU button to access menus Pump Address (1-16) Default: ADDRESS 1 SETTINGS (pages 8-10) Set Time (hr:mm) Default: 12:00 AM Set AM/PM AM/PM 24 hr. Temperature Unit Fahrenheit - Default: F° C°... - Page 33 NOTES...
- Page 34 NOTES...
- Page 35 NOTES...
- Page 36 United States and/ or other countries. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
