• Briefly press the UP or DOWN (25%) value buttons to add or subtract 1 for the
value above the underline (the value is automatically carried and the position of the
underline remains unchanged) and press LEFT (0%) or RIGHT (100%) to change
the position of the underline.
• Long press C/F button until the buzzer beeps, 0mV can be used as the value of 0%.
• Similarly, use the four value buttons to increase the output to 100.0mV
• Long press SLOPE/STEP button until the buzzer beeps, 100mV can be used as the
value of 100%.

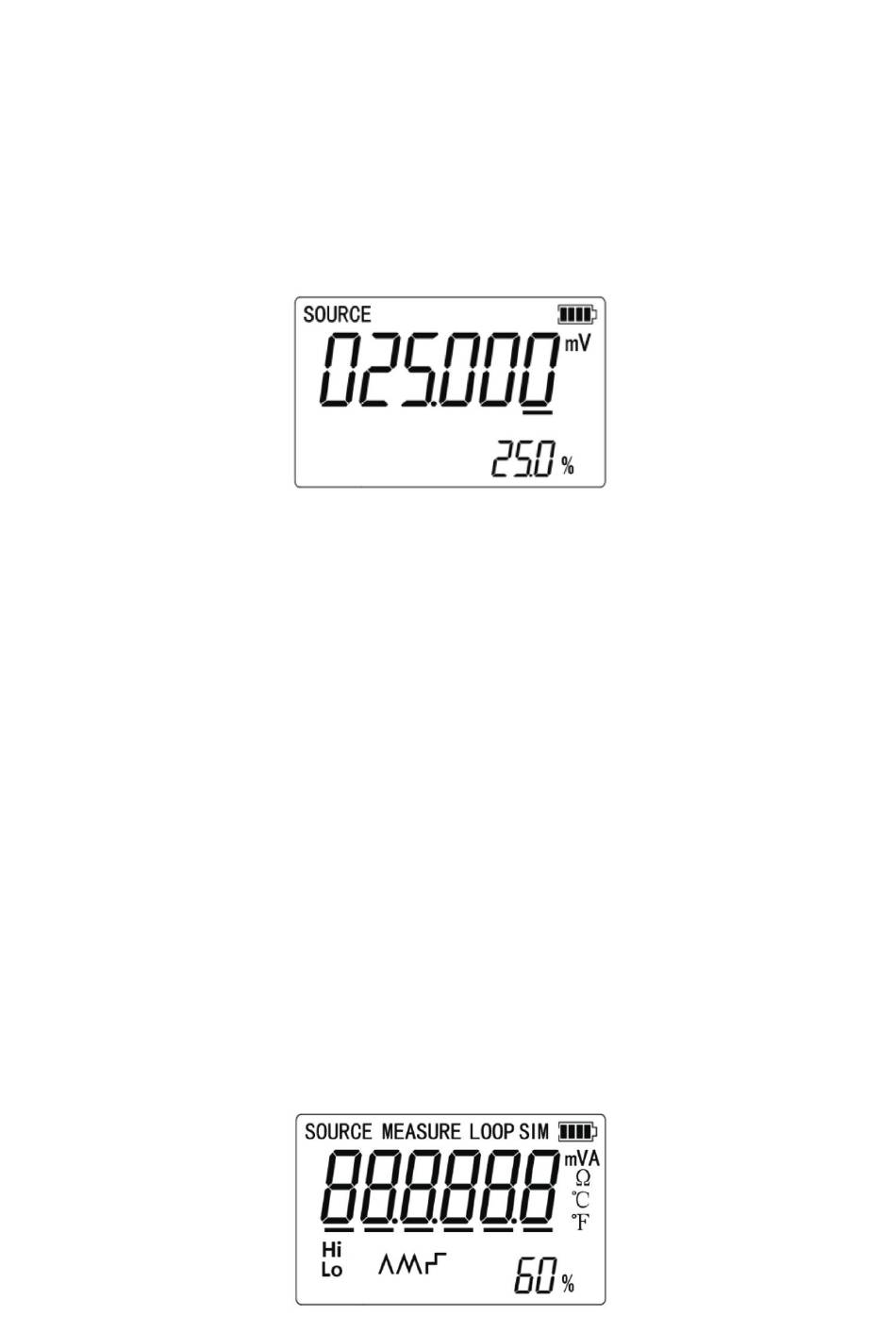

• Long press UP or DOWN (25%) value buttons to increase or decrease the output
between 0% and 100% in 25% steps as shown:
Auto Power Off
• The calibrator will automatically shut down if there is no button or communication
operation within the 30min (factory setting), which is enabled by default and is
displayed for about 2s during the booting process.
• To disable auto power off, press down LEFT (0%) value button while turning on the
calibrator until the buzzer beeps.
To enable auto power off, press down RIGHT (0%) value button while turning on the
calibrator until the buzzer makes a "beep" sound.
• To adjust the auto power off time, press down RIGHT (0%) value button while
turning on the calibrator until the buzzer beeps, then adjust the time between
1-30 min with the UP or DOWN (25%) value buttons, then short press TC button
to save the setting (if the time is not saved, the calibrator will exit settings mode
automatically in 5 seconds) and then enter the operating mode.
Backlight Brightness Control
• Press down UP (25%) value button while turning on the calibrator until the buzzer
makes a "beep" sound.
• Then adjust the backlight brightness by using the UP or DOWN (25%) value
buttons, the brightness value is displayed on the screen as shown:
• Long press TC button to save the setting (if the settings are not saved, the
calibrator will exit settings mode automatically in 5 seconds) and then enter the
operating mode.
