multicomp pro MP780002 Manual page 3

FUNCTIONS
Source
• Connect the red test lead to V terminal, black to COM terminal, and connect the red
probe to the positive terminal of voltmeter, black to negative terminal.
• Press the POWER button (>2s) to turn on the calibrator and it will perform self-test,
which includes the internal circuit and LCD display testing. The LCD screen will
display all symbols for 1s during self-test.
• Press V/Ω button to switch between mV low range and high-range output, press
again to switch to resistance output, low and high ranges.
8
3

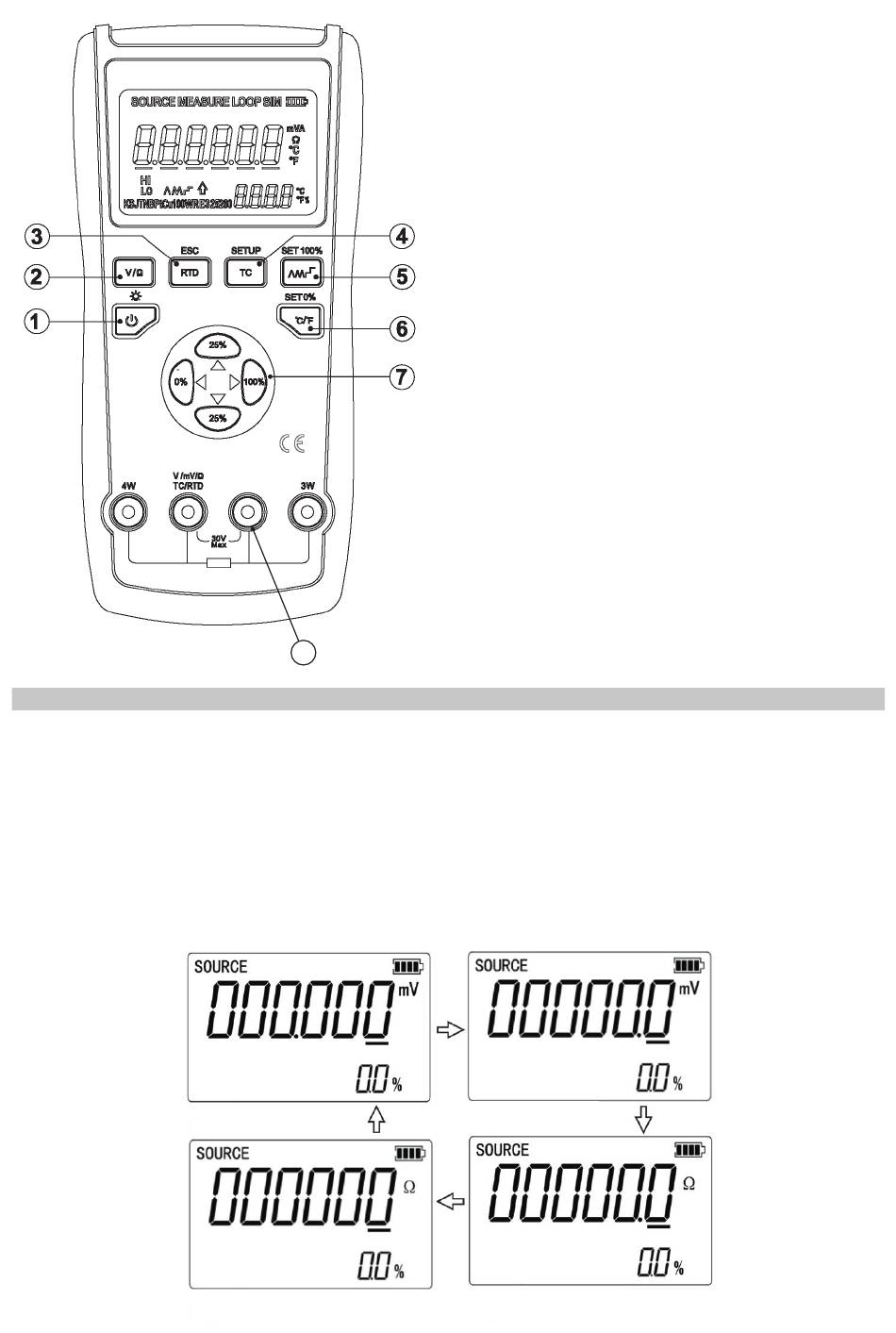

1. Power ON/OFF button
2. Mode button V/Ω
3. RTD output button
4. Thermocouple output mode button
5. SLOPE/STEP mode button
6. C/F Temperature scale button
7. Value setting buttons
8. Test lead connection terminals
