Summary of Contents for multicomp pro MP780522

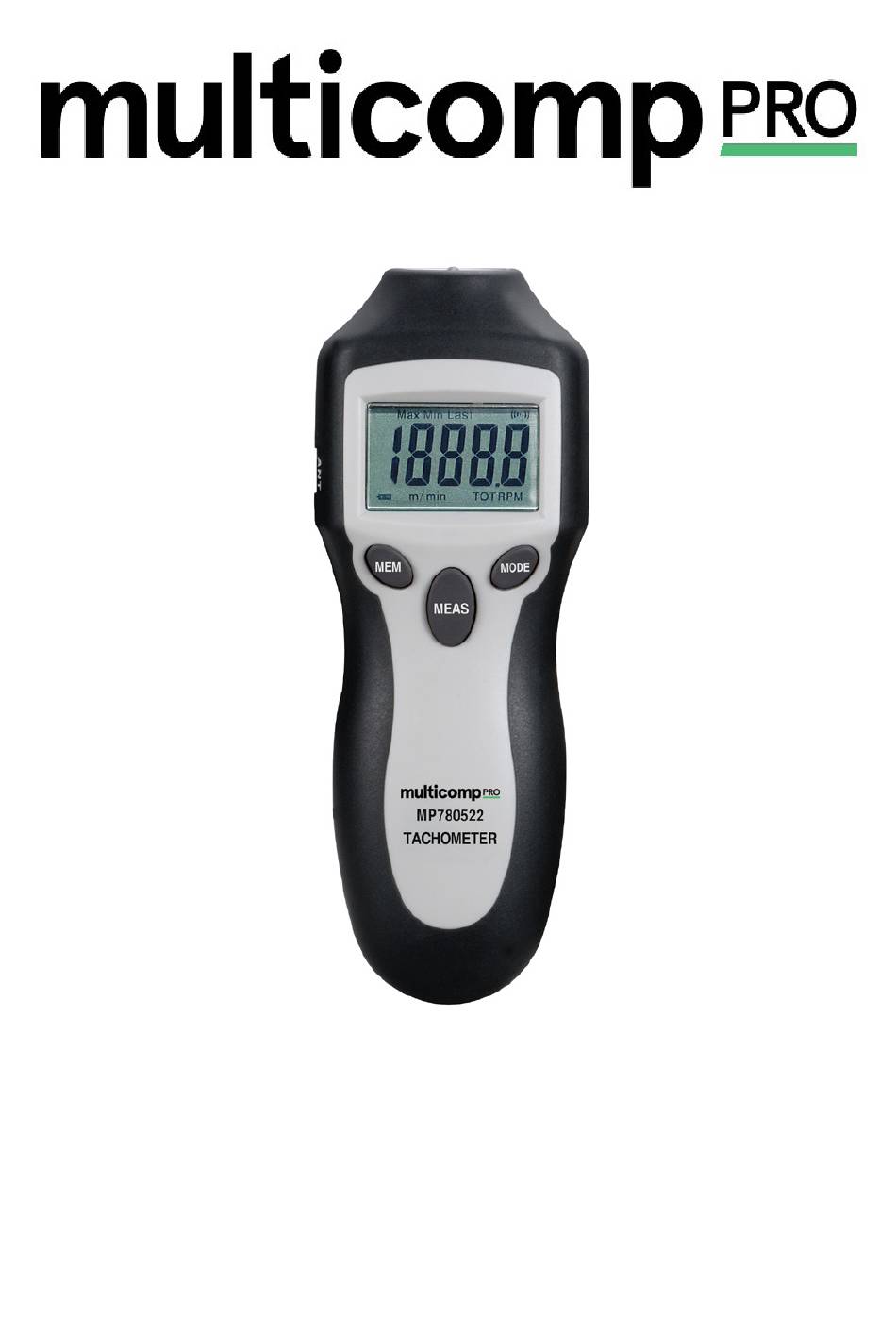

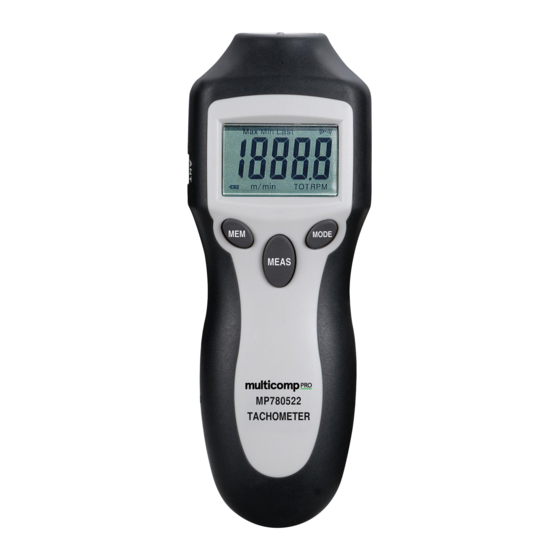

- Page 1 Digital Tachometer MP780522...
- Page 2 SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • To avoid injuries to animal or human eyes, Please do not point the laser beam in eyes or look directly into beam. • There are no user-serviceable parts in this product. Refer servicing to qualified personnel.
- Page 3 OPERATION • Cut the reflective adhesive tap provide into approx 12mm (0.5″) squares and apply one square to each rotation shaft. NOTE: The non-reflective area must always be greater than the reflective area. • If the shaft is normally reflective, it must be covered with black tape or black paint before attaching reflective tape •...
- Page 4 SPECIFICATIONS Display: Large 5 digit LCD Non-contact test range: 2 to 99,999 RPM Tot test range: 0 to 99,999 RPM Accuracy: ±(0.05% + 1digit) Resolution: 0.1RPM (2 to 9999.9RPM) / 1RPM (over 10000 RPM) Sampling time: 0.5 sec.(over 120 RPM) Detecting distance: 50mm to 500mm Memory:...
