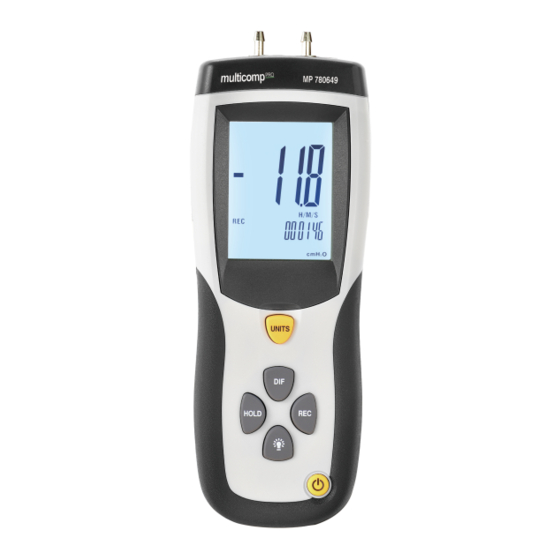

multicomp pro MP780649 Quick Start Manual

Manometer
MP780649
1.lntroduction
The device measures Gauge/Differential Pressure from O to 5 psi, it features
11 selectable units of measure: inH O, psi, bar, mbar, kPa, inHg, mmHg, ozin
2
ftH O, cmH O, kgcm 2 .
2 2
Additional features include Data Hold. Auto Power Off disabled, and a USB
connector for capturing readings to a PC using optional software.
Careful use of this meter will provide years of reliable service.
2.Specifications
Function Range
inH O 138.3
2
5.000
osi
mbar 344.7
kPa 34.47
inHg 10.18
mmHg
258.5
Display
Accuracy
Repeatability
Linearity/Hysteresis
Pressure Range
Maximum Pressure
Response Time
Low Battery Indicator
Over range Indicator
Under range Indicator
Operating Conditions
Storage Conditions
Power Supply
Software (Disk & PC cable).
2 ,
Resolution Function Range
0.1 ozin 2 80.00
ftH O
0.001 11.53
2
0.1 cmH O 351.5
2
kgcm
0.01 2 0.351
0.001
bar
0.344
0.1
Dual LCD
±0.3%FSO (25 ° C)
±0.2% (Max.±0.5% FSO)
±0.29% FSO
±5 psi
20psi
0.5 Seconds typical
Yes
Err.1
Err.2
0 to 50 ° C
-10 to 60 ° C
1 x 9V Battery or external 9VDC
Resolution
0.01
0.01
0.1
0.001
0.001
