Battery Replacement

The meter uses four AAA 1.5 V batteries.

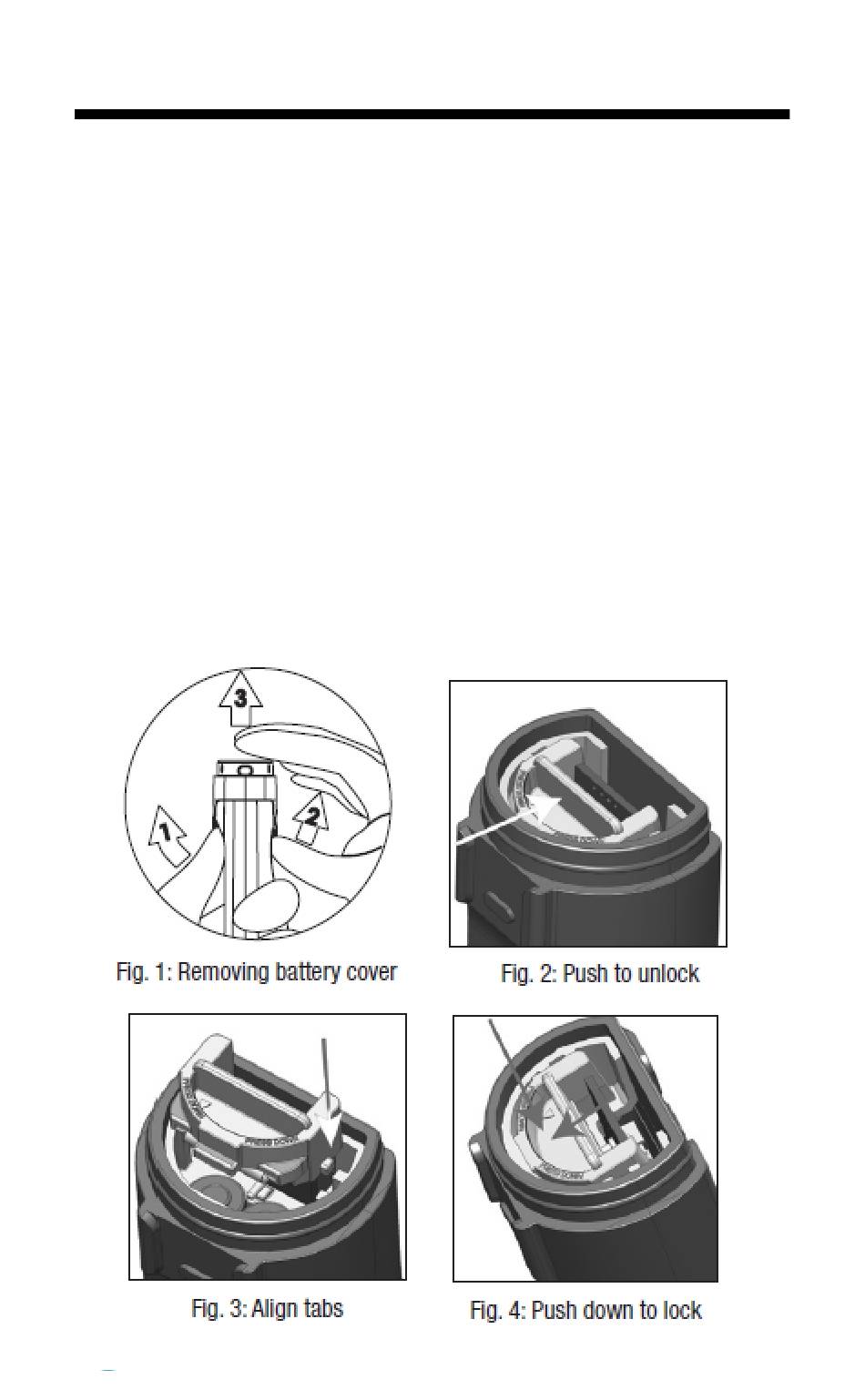

1. To remove the battery cover, see Figure 1. Clear
the front catch then the back catch, before sliding the
cover off.
2. To remove the battery plate, push the center tab
towards the front of the tester as shown in Figure 2.
Once unlocked, remove the plate to access the bat-
teries.
3. Turn the tester upside down to remove the batter-
ies. Each side uses two AAA batteries. Orient each
battery with positive terminal facing downward.
4. To lock the battery plate, align the small tabs
(Figure 3) into the guide ribs on the housing and then
press down. See Figure 4.
