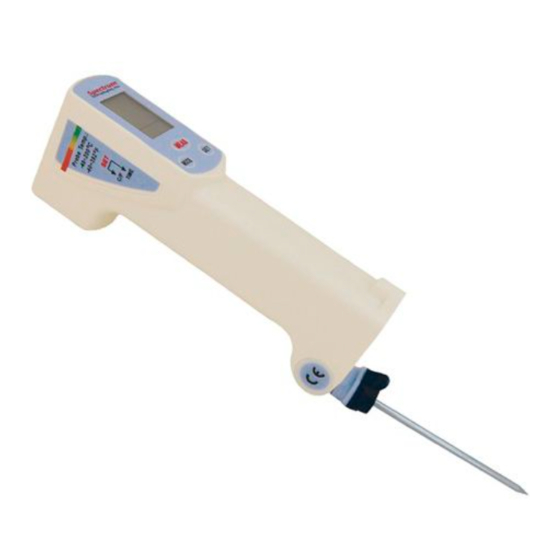

- Page 1 IR Crop Temperature/ External Soil Temperature Meter PRODUCT MANUAL Item # 2958...
- Page 2 CONTENTS Specifications Description Operation Maintenance Warranty CE Declaration of Conformity Thank you for purchasing the Infrared Crop Temp / External Soil Temp Meter. The meter is designed to combine non-contact IR thermometer with a penetration probe to enable both leaf surface and soil temperature measurement using the same meter.
- Page 3 Description Front Panel LCD Display Top Row: “HOLD”: Last reading displayed Battery icon: Low battery warning Main Display: Real time temp. Middle Display: Max temp. Lower Display: Timer Probe icon: Probe measurement mode...
- Page 4 Operation Power On/Off Press any key to turn on the meter in last operating mode. It automatically turns off after 20 sec. non-operation. Select display modes Press MODE button to select display modes. It cycles among IR, Probe, and Counter operation modes. In IR mode, the LCD shows real time temp.
- Page 5 and insert into the target at least 1/2” (10mm) deep for sev- eral seconds or stir the liquid to equilibrate with the target ob- ject, and then press MEAS to measure internal temp. The probe icon blinks while measuring and stops with short beeps when the readings stabilize.
- Page 6 “:” blinks while the counter is working. Users can pause or continue it by pressing MEAS button in counter mode. Or press MODE to return to IR or probe mode and let it count down in the background. The counting timer will remain on the screen even when it auto turns off.
- Page 7 Maintenance Case cleaning Use a damp cloth to clean the exterior housing. Make sure no water goes inside the infrared lens. Lens cleaning Clean the infrared lens after a certain time of operation. Use low pressure compressed air or soft damp swab to remove the particles on the lens.
- Page 8 Spectrum is not responsible for any package that is returned without a valid RMA number or for the loss of the package by any ship- ping company. DECLARATION OF CONFORMITY Spectrum Technologies, Inc. 12360 S. Industrial Dr. East Plainfield, IL 60585 USA Model Numbers:...
