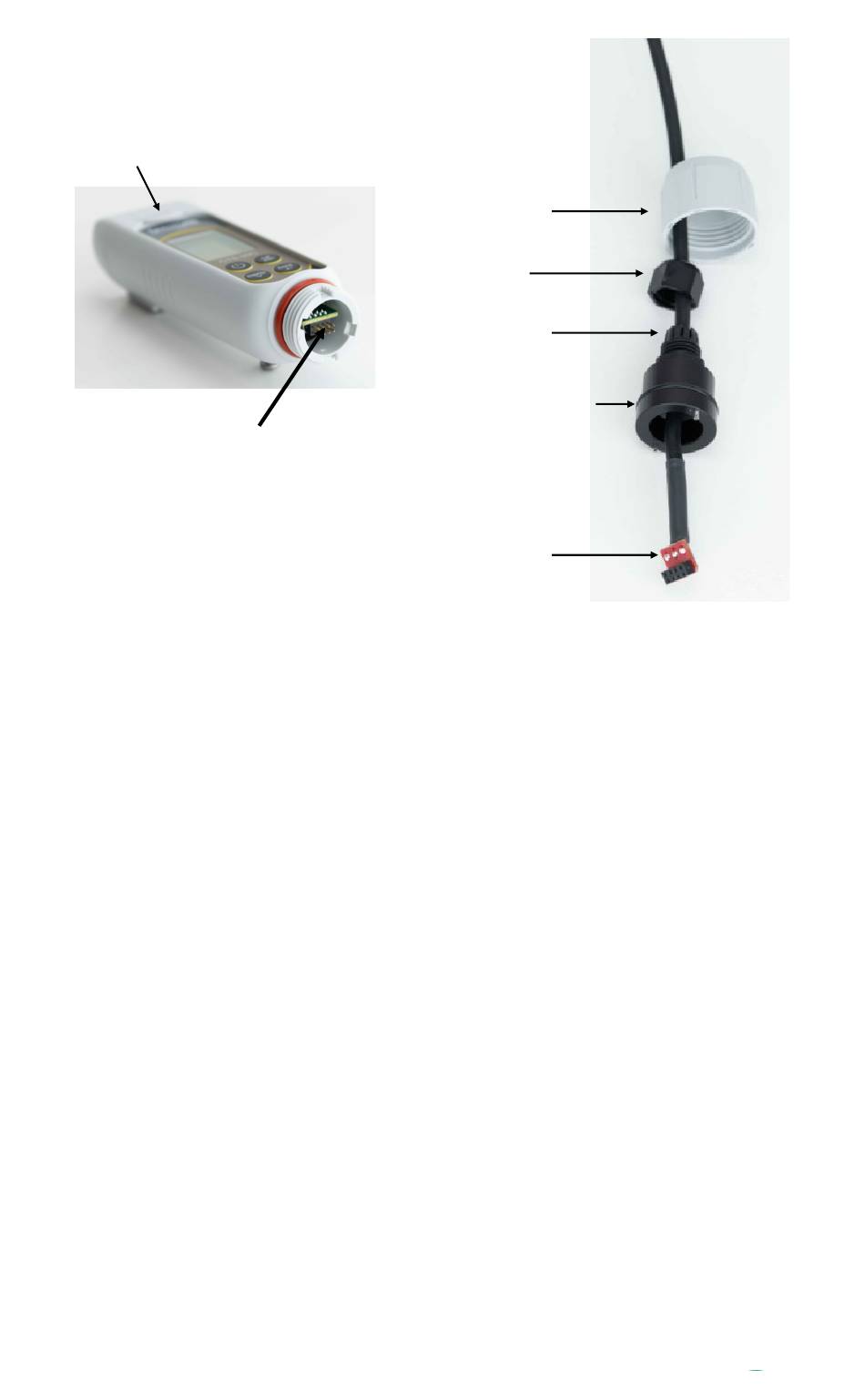

Meter Housing
socket
II. Attaching a direct-insert probe
1. If you are connecting an 8" probe, slide the white
nut over the probe and down the black cable.
Skip to step 4.
2. If you are connecting a 24" probe, remove the
strain relief from the larger plastic assembly.
3. Feed the cable and strain relief through white nut
and re-connect the strain relief and the assembly.
4. Attach the probe plug to the socket in the meter
housing.
5. Push the assembly onto the meter housing so the
metal pegs on the assembly line up with the
notches on the inner diameter of the meter open-
ing. Be sure that the small o-ring sits at the base
of the large plastic assembly.
6. While holding the assembly in place hand-tighten
the nut to the strain relief
7. Connect and tighten the white nut to the meter
housing.
White nut
Black nut
Strain relief
Larger plastic
assembly/O-ring
Probe plug
