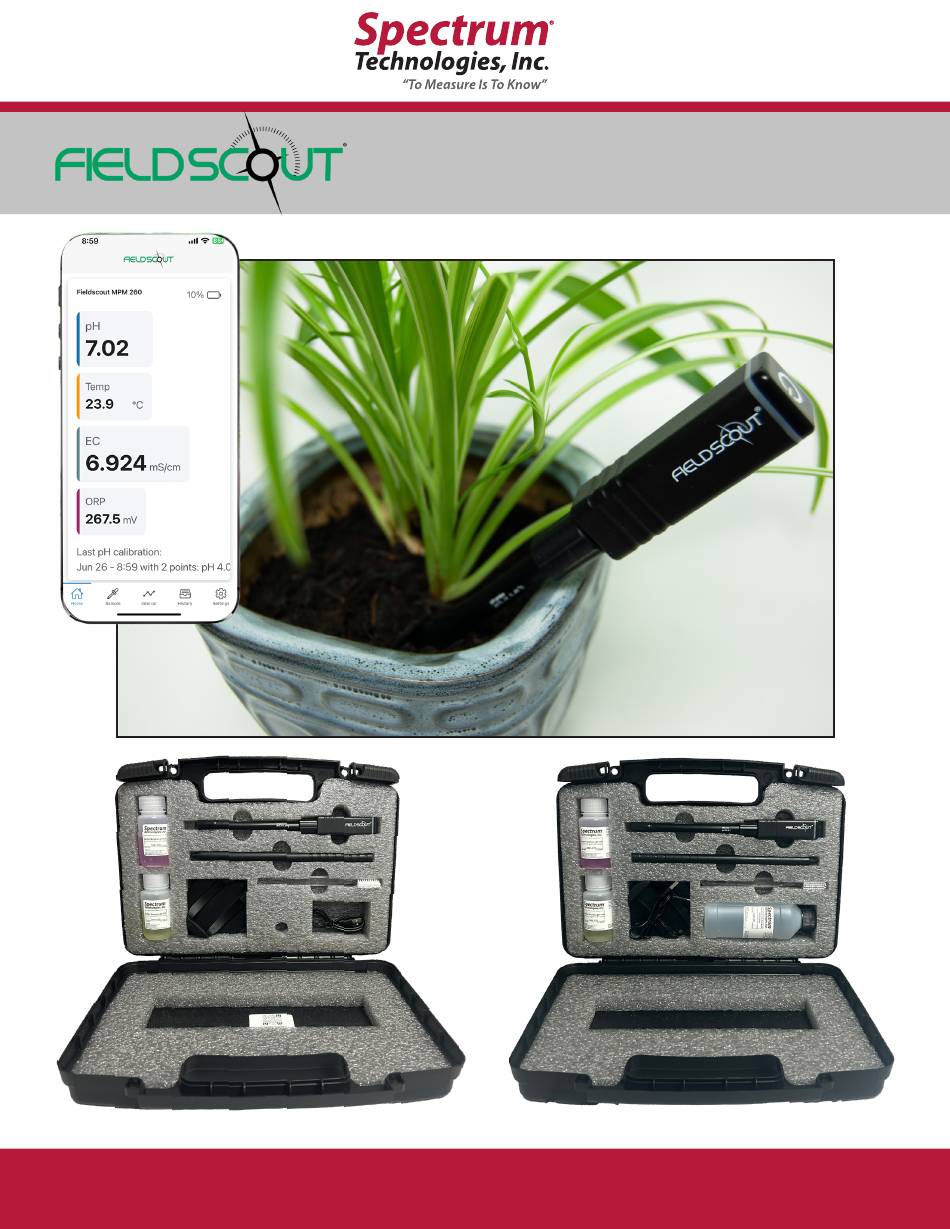

- Page 1 FieldScout® Wireless ISFET pH and pH/EC/ORP Probes Item 2127WE, 2128WE, 2127W, 2128W Wireless ISFE pH Probe Wireless ISFE pH/EC/ORP Probe “To Measure Is To Know” “To Measure Is To Know” info@specmeters.com www.specmeters.com 800. 248.8873...
- Page 2 This manual will familiarize you with the features and operation of your new FieldScout Wireless ISFET pH Probes. Please read this manual thoroughly before launching the units. For customer support or to place an order, call Spectrum Technologies, Inc. at 800-248-8873 or 815-436-4440, FAX at 815-436-4460, or e-mail at info@specmeters.com.
-
Page 3: Unpack The Box

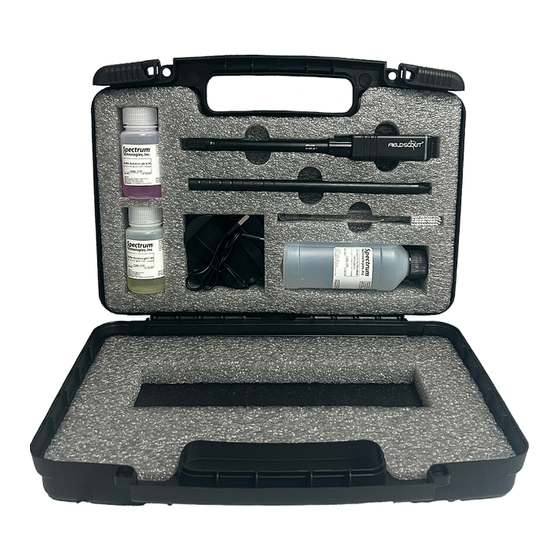

UNPACK THE BOX Replaceable Probe Ring Transmitter Transmitter Replaceable Probe The replaceable probe includes the sensor and reference electrode. It is covered The transmitter includes the battery, with a protective cap. memory for measurement values and recognizes the probe type. The sensor is the metallic spot at the tip of the probe (S). - Page 4 GATHER COMPONENTS ASSEMBLE THE PROBE Place the ring on the probe (Step 1). Align probe and transmitter before plugging the probe completely into the transmitter (Steps 2 - 4) Both 0-rings should fit into the transmitter (Steps 2 -3). Turn the ring to fasten it (Step 5). Do not detach the probe during the experiment (including calibration).
-
Page 5: Probe Description
CHARGE THE PROBE Place the probe onto the adapter with the logo facing up. It can take up to 30 seconds before the LED of the probe indicates the status. It shows a red, pulsating light when charging up to 80%. The light changes to pulsating green when the battery level is >80%. -
Page 6: Get Started
GET STARTED Download the FieldScout pH/EC/ORP App Scan the QR code or search for the FieldScout pH/EC/ORP app in your app store. You may need to activate location access for the app to record the location of each reading. Home Menu •... - Page 7 CALIBRATE YOUR PROBE(S) Calibration Status of Devices One of the two following messages will appear when you connect your probe: 1. Last Calibration (Date/Time): The last calibration is still valid. The probe is ready for use. The date/time stamp of the last calibration are indicated.
-
Page 8: Taking Measurements
TAKING MEASUREMENTS MEASURMENT TYPES Sample • A sample measurement is used to take measurements manually. Several data points can be taken for one sample. • The information on the data point(s) including time stamp, pH/EC/ORP values, temperature and probe name are listed. - Page 9 TAKING INTERVAL SAMPLE MEASUREMENTS When only using 1 probe • Select + New Interval to take a single measurement (Figure 1) When using multiple probes: • Select Interval from the Home screen (Figure 2) • Select which probes you want to use for the interval, click Next (Figure 3) Figure 1 When using either probe:...
- Page 10 RMA number or for the loss of the package by any shipping company. 3600 Thayer Court Aurora, IL 60504 800.248.8873 Form 144 Rev. B Spectrum and FieldScout are registered trademarks of Spectrum Technologies, Inc. www.specmeters.com 06/2024 (24-125)
