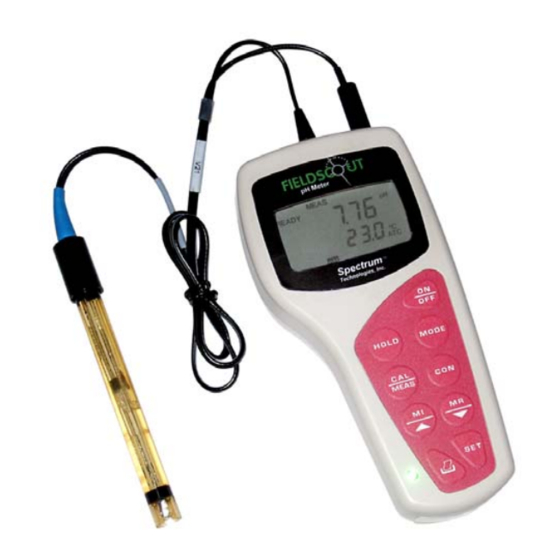

Spectrum Technologies Fieldscout 2120 Product Manual

Ph 110 meter
Hide thumbs

Advertisement

Quick Links

Download this manual
®
pH 110 Meter
PRODUCT MANUAL
Item # 2120

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fieldscout 2120 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrum Technologies Fieldscout 2120

Summary of Contents for Spectrum Technologies Fieldscout 2120

  • Page 1 ® pH 110 Meter PRODUCT MANUAL Item # 2120...

  • Page 2: Table Of Contents

    110 meter. Please read this manual thoroughly before using your instrument. For customer support, or to place an order, call Spectrum Technologies, Inc. (800)248-8873 or (815) 436-4440 between 7:30 am and 5:30 p.m. CST, FAX (815)436-4460, e-mail: specmeters.com.
  • Page 3 General Overview Thank you for purchasing the data logging pH 110 meter from Spectrum Technologies, Inc. This user’s guide deals with the features that are unique to the data logging pH 100 meter. Infor- mation on general meter operation is contained in the accompanying Instruction manual.

  • Page 4: Data Logger Operation

    Data Logger Operation The data logger has two modes of operation: Com- munication and Measurement. These modes are indicated by the green LED in the lower left corner of the meter. When this light is flashing, the meter is in Communication mode.
  • Page 5 Calibration The procedure for calibrating the meter is given in the accompanying meter instruction manual. Taking and Data Logging Measurements When the probe is inserted in soil or water, the me- ter’s LCD will immediately begin indicating the pH. When this value stabilizes, the meter locks on to that value and the LCD will display READY in the upper right corner.

  • Page 6: Identifying The Correct Com Port

    Identifying the Correct Com Port The computer Communications Port to which the PC-3.5 serial cable is connected can be identified by using a paper clip 1. Disconnect the meter from the serial cable. 2. Click on the Com Port button on the main software screen.
  • Page 7 4. If the “Connection OK” message box (see fig. 1) is displayed, another device (such as a modem) is probably connected to that port. This is not the port you will be using with your meter. If the “No Connection” message box (see fig. 2) is displayed, this port may be the one connected to your serial cable and you can proceed to the next step.

  • Page 8: Logger Software

    Logger Software Meter Type The Field Scout software supports all of Spectrum Technologies’ portable data logging meters. Be sure to select the pH 100 Meter from the Select Meter Type screen Connecting to your Computer To communicate with the data log- ger, connect the gray interface cable to the pH 100 meter’s RS-232 port.
  • Page 9 If the box below the logger name field is checked, the logger will store GPS data only if it has been dif- ferentially corrected. If the differential correction is not found, only the pH reading will be stored in the data file.

  • Page 10: Gps Connection

    GPS Connection The data logger searches for a GPS signal when the meter is powered up. If a signal is found, latitude and longitude values will be added to the data file. If a GPS signal is not found when powering up, the meter will not search for it when taking readings.

  • Page 11: Specifications

    Specifications Measurement Capacity: - 4,096 data points without GPS - 1,488 data points with GPS Operating Environment: - Weather Resistant Power: - 4 x AAA batteries - Provides 40 hours of logging Software Requirements: - Windows 95 or higher - Field Scout Software v. 3.4 or higher (included)
  • Page 12 Appendix 1 Time zone corrections Time Zone City Correction Dublin, Lisbon, London Rio de Janeiro, Montevideo Asuncion Atlanta, Indianapolis, New York, Ottawa, Bogota, Montreal, Toronto Guatemala City, Houston, New Orleans, Chicago, Mexico City, Winnipeg Phoenix, Denver, Edmonton San Francisco, Los Angeles, Vancouver Anchorage Honolulu Wellington...
  • Page 13 Who do I contact? Contact the company that you bought the loggers from: Spectrum Technologies, Inc. or a Spectrum Authorized Dealer. Before calling, you can evaluate and often solve your problem if you try the following.

  • Page 14: Warranty

    Warranty This product is warranted to be free from defects in material or workmanship for one year from the date of purchase. During the warranty period Spectrum will, at its option, either repair or replace products that prove to be defective. This warranty does not cover damage due to improper installation or use, lightning, negligence, accident, or unauthorized modifications, or to inci- dental or consequential damages beyond the Spectrum prod-...
  • Page 16 This equipment has been manufactured for Spectrum Technologies, Inc. 12360 S. Industrial Dr. East Plainfield, IL 60585 USA The Manufacturer’s DECLARATION OF CONFORMITY is on file at the above address, and certifies conformity to the following: Model Number: 2120 Description:...
