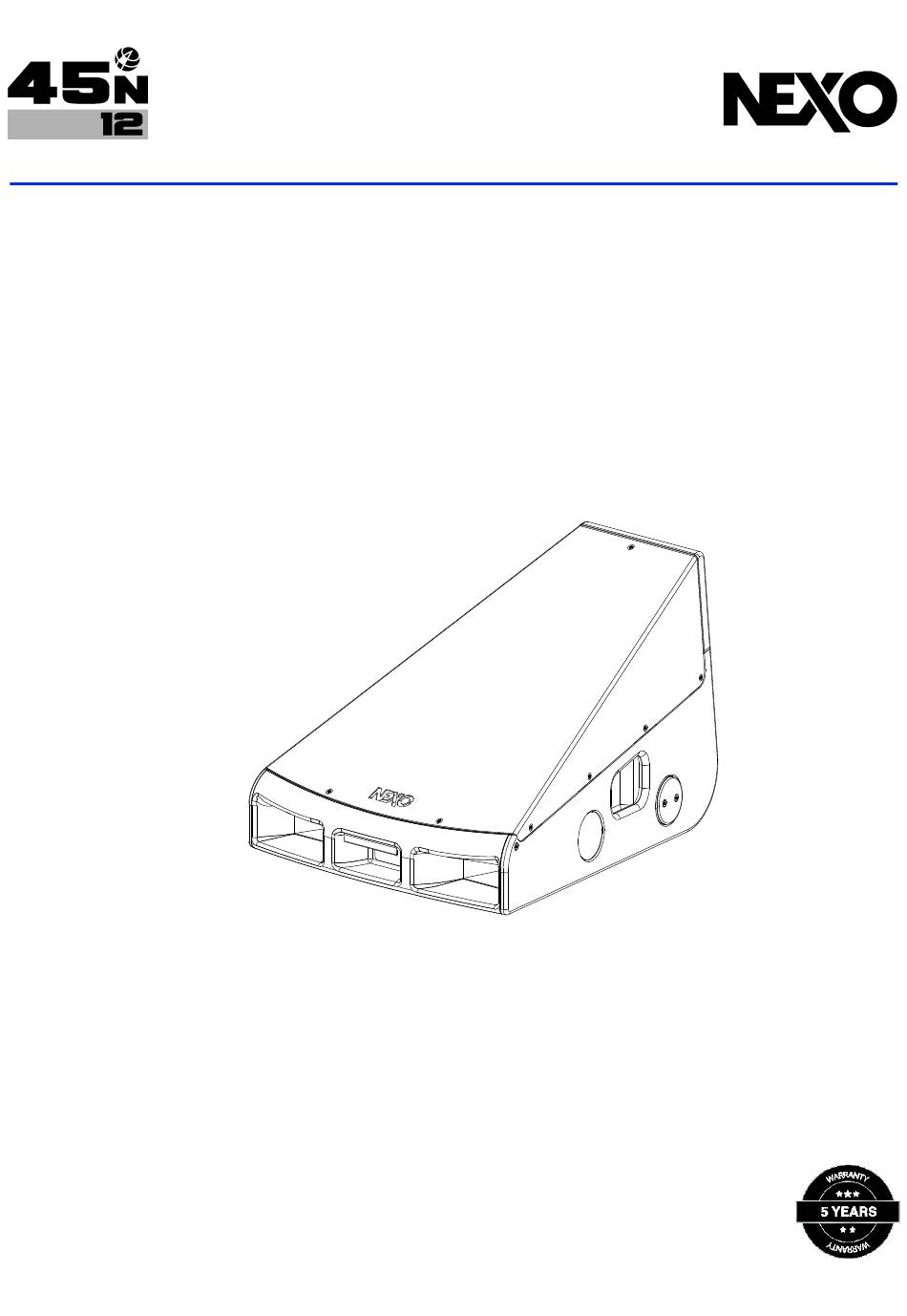

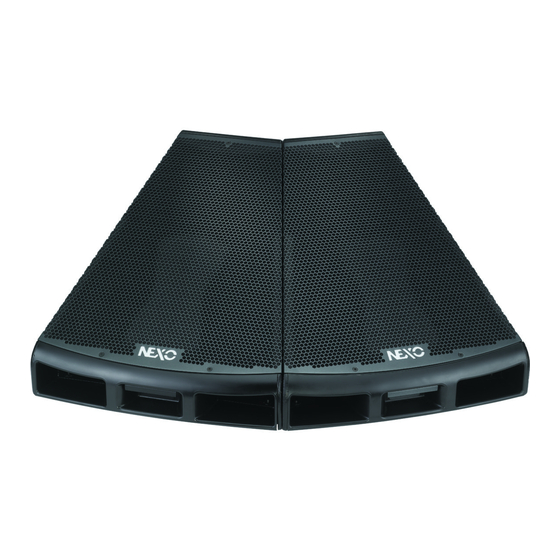

- Page 1 DP2539-01-DI 45N12 Line Monitor User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 7 MAINTENANCE _________________________________________________________________________ 8 TECHNICAL SPECIFICATIONS ___________________________________________________________ 11 USER NOTES _________________________________________________________________________ 12 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
Equipment EQUIPMENT Handles - Magnets Handling 45N12 Moving cabinet In order to move 45°N-12 quickly on stage: Lift the cabinet with the front handle Slide it on the rounded rear skids Drop it at its new position. Locking / Unlocking cabinet An integrated magnetic locking system allows connecting multiple monitors together with no requirement for additional parts. -
Page 5: Description
DESCRIPTION DESCRIPTION → The 45N12 is a monitor which brings all the benefits of line-array technology to the stage; → HF dispersion: • Horizontal 30° - Scalable 30° steps when arrayed • Diagonal (Coupling Plane) 22.5° - Scalable 22.5° steps when arrayed •... -
Page 6: Preset
45N12 3 Boxes, with high-pass at 60, 85 or 120 Hz. → Active mode • 45N12 HF 1 Box, with high-pass at 60, 85 or 120 Hz. • 45N12 HF 2 Boxes, with high-pass at 60, 85 or 120 Hz. -
Page 7: Crossover Frequency
CROSSOVER FREQUENCY CROSSOVER FREQUENCY → 60 Hz: Full range application → 85 Hz: Use with a NEXO subwoofer. → 120 Hz: Use with a NEXO subwoofer. ACCESSORY 45T-CASE12: FLIGHT CASE FOR 2X 45N12 ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range... -
Page 8: Maintenance
Remove 11 screws (Tx25), 4 on each side and 3 on the Remove the grille. front. Remove the 4 screws (Tx25) and washer to remove the Remove the 4 screws (Tx25) to access 12”. PMP. Page 8 / 14 45N12... - Page 9 Remove the passive filter plate, 8 screws (Tx25). Remove the CNX plate, 6 screws (Tx25). You can access the HF driver to change the diaphragm. LF: red (+) / black (-) HF: orange (+) / grey (-) Page 9 / 14 45N12...
- Page 10 MAINTENANCE Spare parts MARK QUANTITY REFERENCE DESIGNATION 0545N12-A 45N12 complete grille black (with screws) 0545N12-APW 45N12 complete grille white (with screws) 12” driver 05HPB12ND8 05HPB12ND8R/K Recone kit HPB12ND8 05PATIN-A2 45N12 Long skid (with screws) 05PATIN-A1 45N12 Short skid (with screws)
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS 45N12 WITH NEXO ELECTRONICS Model 45N12 50Hz – 20kHz Frequency range (±6dB) Peak SPL Level (1m) 140dB Operating voltage 50Vrms (180Vpeak) 60° Vertical (Asymmetrical -45° / +15°) HF Dispersion 30° Horizontal- Scalable 30° steps when arrayed 22.5°... -
Page 12: User Notes
USER NOTES USER NOTES Page 12 / 14 45N12... - Page 13 USER NOTES Page 13 / 14 45N12...
- Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 45N12...
