Summary of Contents for Clarke CCLH1

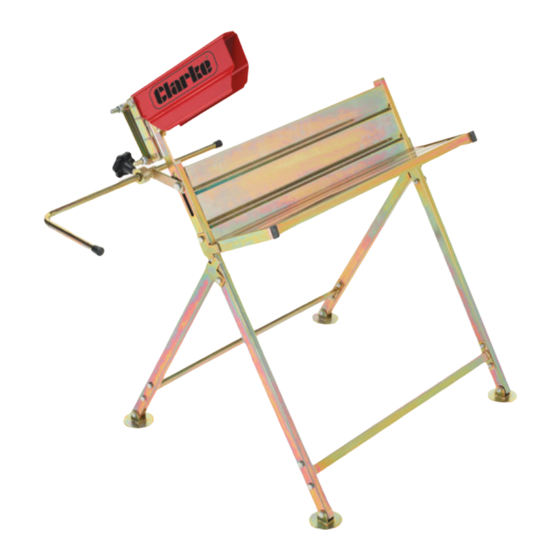

- Page 1 CHAINSAW LOG HORSE MODEL NO: CCLH1 PART NO: 3402085 ASSEMBLY & USER INSTRUCTIONS GC0514...
- Page 2 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
- Page 3 CONTENTS The CCLH1 Loghorse comprises the following components: Item Description Item Description Fixed Support Panel Measuring Rod Mounting Bracket Hinged Support Panel Chainsaw Clamp Short Leg Clamp Mounting Bracket Cross Member Foot Long Leg Saw Guard Measuring Rod (length stop) Fixings Pack Parts &...
- Page 4 1 x Allen Key 1 x 65mm Bolt/Nut When unpacking, check for damage or omissions etc. Any found should be reported to your CLARKE dealer where the product was originally purchased. Do not discard the packaging until the product is assembled. ASSEMBLY 1.
- Page 5 5. Secure the fixed support panel (1) in place between the long legs using 6 Allen headed bolts and the socket wrench supplied as shown in Fig 3. 6. Attach the hinged support panel (2) to the long legs using the 2 x 50 mm bolts &...
- Page 6 11. Attach the saw guard (11) to the chainsaw clamp using the nut & 65mm bolt as shown in Fig 6. Do not overtighten. 12. Once tightened, take the saw and the clamp assembly together and insert the pivot rod of the clamp into the hole in the clamp support.
- Page 7 Product Footprint (L x W) 715 x 815mm Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. ENVIRONMENTAL PROTECTION Recycle unwanted materials instead of disposing of them as waste.
