H-System – Isolated Barriers and Termination Boards for HIMA
Dismounting, Maintenance, and Repair
5.2

Termination Board Dismounting

Warning!
Risk of short circuit
Working on live parts can cause injuries and can compromise the function and the
electrical safety of the device.
• Before working on the device, always disconnect the supply voltage.
• Connect the device to the supply voltage only after completion of the work.
Dismounting the Termination Boards
1. Loosen the mounting screws (3).
2. Remove the termination board (2) from the DIN mounting rail (1).

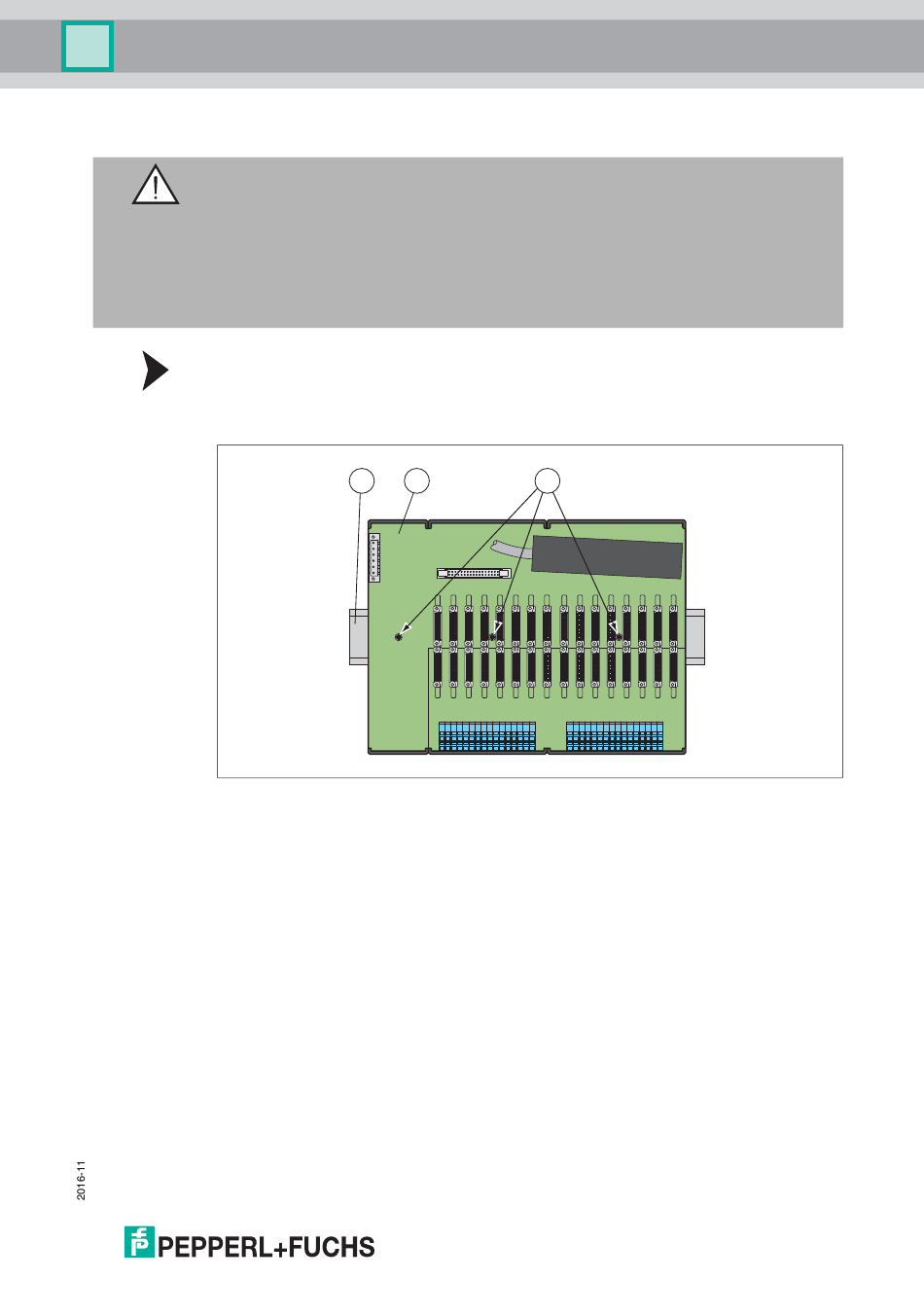

Figure 5.2
1 DIN mounting rail
2 Termination board
3 Fastening screw
1 2
Termination board fixing
3
