H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2.2.3 Accessories
Label carriers for Termination Boards
The termination boards can be fitted with a label carrier for individual
identification.

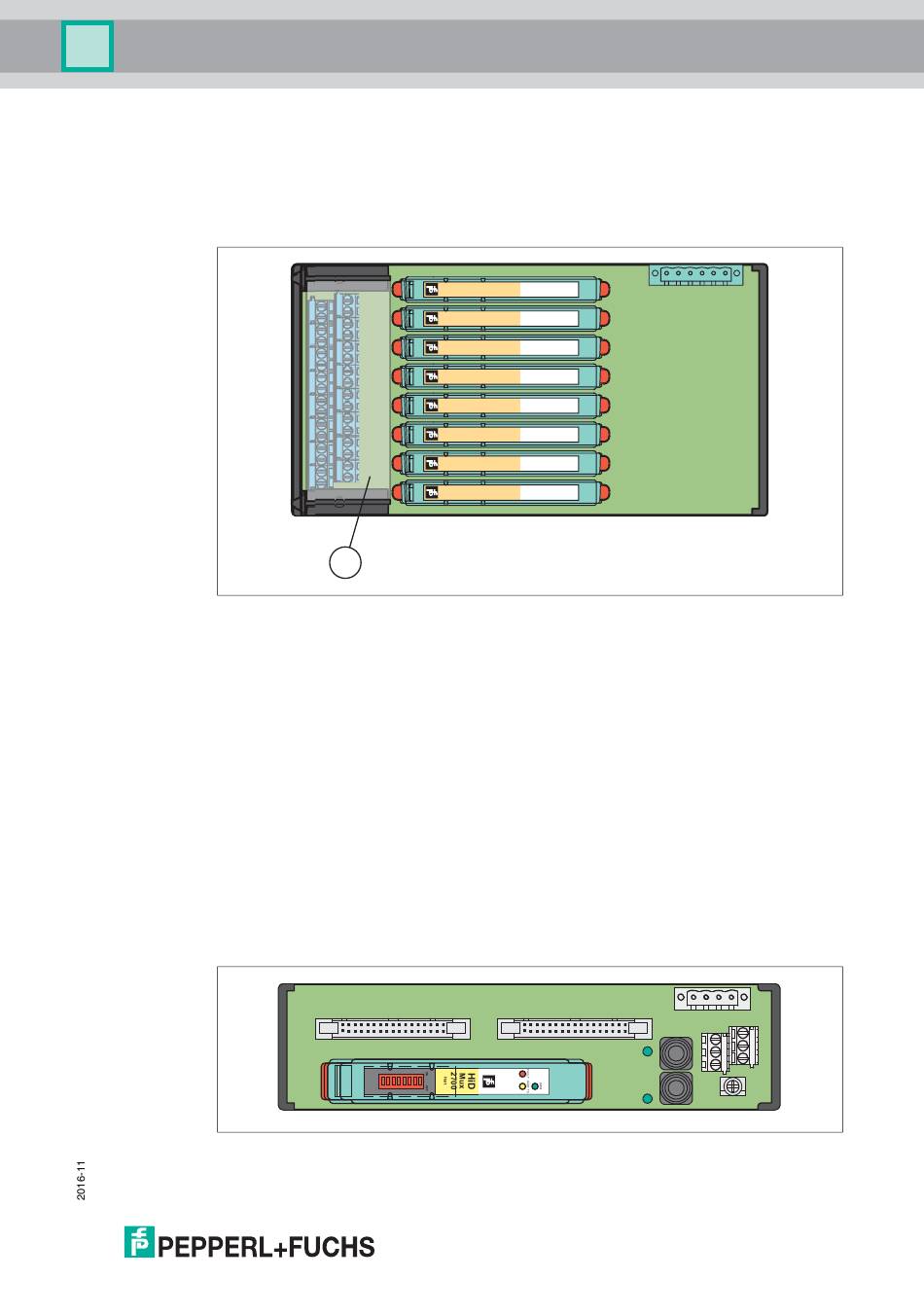

Figure 2.5
1 Label carrier HiALC-HiCT*-SET-*** for HiC termination boards
1 Label carrier HiALC-HiDT*-SET-*** for HiD-termination boards
HART Communication Board
The HART Communication Board is connected to HART-compatible H-System
termination boards. It has one slot to mount a 32-channel HiD Mux2700-type
HART multiplexer.
Preconfigured HART connection cables enable easy connection between the
H-System termination boards and the HART Communication Board.
The device offers a redundant fused power supply with an LED indicator. The
RS 485 terminals have a redundant configuration and enable simple bridging to
the next bus node.
Figure 2.6
1
Label carrier for termination boards
HART Communication Board HiATB01-HART-2x16
8
7
6
5
4
3
2
1
