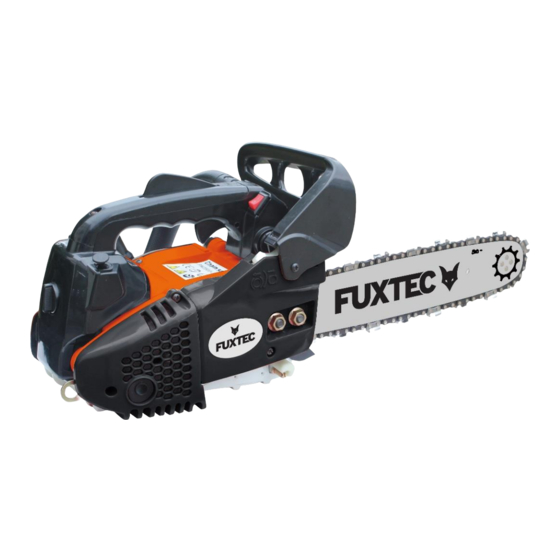

FUXTEC FK-KS126 Original User Manual

Petrol tree care saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FK-KS126 and is the answer not in the manual?

Questions and answers

Related Manuals for FUXTEC FK-KS126

Summary of Contents for FUXTEC FK-KS126

  • Page 2 Please always keep this user manual together with the device so that you always have it at hand in case of doubt. The chainsaw FX-KS126 is intended for tree care and only for suitably trained personnel! This must be observed. FUXTEC GmbH Kappstrasse 69, 71083 Herrenberg, Germany...

  • Page 3: Table Of Contents

    Original User Manual Tree Care Saw FX-KS126_rev03 Table of contents FUXTEC FX-KS126 at a glance ............ 4 Intended use ................6 Safety Instructions ..............7 Warnings on the device ............10 Explanation of other symbols on the device .........12 Mounting the blade and the saw-chain ........13 Fuel and saw-chain oil ..............14...

  • Page 4: Fuxtec Fx-Ks126 At A Glance

    FUXTEC FX-KS126 at a glance 1. Bow handle 12. Fixing nut 2. Handle (for saw bar) 3. On / Off switch 13. Sprocket protection 4. Fuel filler cap 14. Choke lever 5. Chain oil filler cap 15. Fuel pump 6. Train Starter 16.
  • Page 5 Original User Manual Tree Care Saw FX-KS126_rev03...

  • Page 6: Intended Use

    Original User Manual Tree Care Saw FX-KS126_rev03 Safety functions of the components (see S4) Point 3: on/off switch stops the engine immediately when it is switched off. The stop switch must be used to (re)start the engine Point 7: Saw chain with low kickback helps you to reduce kickback forces with specially developed safety device and to absorb them better Point 10: chain brake/hand guard protects the operator's left hand if it should slip off the front handle while the saw is running.

  • Page 7: Safety Instructions

    Original Operating Manual Tree Care Saw FX-KS126_rev03 Safety instructions This special chainsaw may only be used for tree care by specially trained personnel. Tree care chainsaws are special chainsaws with an overhead handle, especially for tree care and tree work in the crown of standing trees.
  • Page 8 Original Operating Manual Tree Care Saw FX-KS126_rev03 • To avoid fire hazard, keep the engine and exhaust system free of vegetable matter or escaping grease (oil) • Always secure the switched-off device against unintentional switch-on • Do not use any device where the on/off switch does not work properly Danger due to vibration CAREFUL! Risk of injury due to vibration!
  • Page 9 Original Operating Manual Tree Care Saw FX-KS126_rev03 • Always keep an eye on the surroundings to make sure that your work does not endanger people or animals • No other persons or animals may be present within 15 m of the cutting area, as they may be injured by objects thrown away.

  • Page 10: Warnings On The Device

    Original Operating Manual Tree Care Saw FX-KS126_rev03 Residual risks Even when the tool is used properly, there is always a certain residual risk that cannot be excluded. The following potential hazards can be derived from the type and design of the tool: Contact with the unprotected saw chain (cutting injury) Reaching into the running saw chain (cutting injury) Unforeseen, sudden movement of the saw-bar (cutting injury)
  • Page 11 Original Operating Manual Tree Care Saw FX-KS126_rev03 Pull start, here pull to start the device Guaranteed sound power level...

  • Page 12: Explanation Of Other Symbols On The Device

    Original User Manual Tree Care Saw FX-KS126_rev03 Explanation of other symbols on the device Inlet opening for refilling "MIX GASOLINE" 40:1 Position: Above the fuel cap Inlet opening for refilling the Chain Oil Position: Above the oil cap Notes on the switch If you turn the switch to "O"...

  • Page 13: Mounting The Blade And The Saw-Chain

    Original Operating Manual Tree Care Saw FX-KS126_rev03 In some cases, contact between the tip of the chain bar and a solid object can cause the chain bar to strike back at lightning speed, throwing it backwards and upwards towards the operator. Pinching the saw-chain at the upper part of the chain bar can cause the chain bar to bounce back and towards the operator with a quick movement.

  • Page 14: Fuel And Saw-Chain Oil

    Original Operating Manual Tree Care Saw FX-KS126_rev03 ATTENTION New chains stretch during the initial period of use. For this reason, check the chain tension frequently and adjust it if necessary, as a loose chain can easily jump off or cause rapid wear of the chain and chain stay. Fuel and saw-chain oil DANGER! Danger of injury!

  • Page 15: Starting The Chainsaw

    Original Operating Manual Tree Care Saw FX-KS126_rev03 • Replace damaged seal immediately! • Tighten oil cover (5) with seal by hand • Always wipe up any spilt saw-chain oil Starting the chainsaw • Take a secure standing position • Place the appliance on the floor so that the saw-chain cannot come into contact with anything •...
  • Page 16 Original Operating Manual Tree Care Saw FX-KS126_rev03 Switching off the engine • Release the throttle lever • Set ignition switch to [0]. The engine switches off. DANGER! Danger of injury! The throttle stick must be pressed lightly once after starting, so that the engine reaches the correct idle speed and the saw-chain does not start up in idle speed.

  • Page 17: Operating The Chainsaw

    Original Operating Manual Tree Care Saw FX-KS126_rev03 9. Operation of the chainsaw The saw-chain starts to rotate as soon as the engine starts up, so make sure there is sufficient safety clearance! CHECKING THE OIL SUPPLY After starting the engine, run the chain at medium speed and check that the chain is releasing oil, as shown in the figure.
  • Page 18 Original Operating Manual Tree Care Saw FX-KS126_rev03 CHAIN BRAKE This device is equipped with an automatic brake. If a kickback occurs during sawing, the brake is automatically released by the inertia acting on the weight inside the front guard and stops the rotation of the saw chain.
  • Page 19 Original Operating Manual Tree Care Saw FX-KS126_rev03 ATTENTION Before starting work, first read the section Safety instructions " ". For practice purposes, it is recommended that you first saw through pieces of wood that are easy to cut. This also helps you to become familiar with the operation of the chainsaw.
  • Page 20 Original Operating Manual Tree Care Saw FX-KS126_rev03 PRECAUTIONS AGAINST KICKBACK This chain saw is equipped with a chain brake, which in case of a kickback of the saw the chain stops immediately - provided that the braking device is working properly. For this reason, the function of the Chain brake must be checked before starting any work.
  • Page 21 Original Operating Manual Tree Care Saw FX-KS126_rev03 Saws Always saw in a relief cut (1) on the • pressure side first Then saw in the separating cut (2) on the • pulling side - otherwise the chainsaw may jam or kickback ATTENTION Always ensure a safe working position.

  • Page 22: Operating Methods To Reduce The Risk Of Injury

    Original Operating Manual Tree Care Saw FX-KS126_rev03 10. Working methods to reduce the risk of injury 10.1 Tree care at height with rope and riser 10.1.1 General requirements As a user of this chainsaw for tree care, the one at height with rope and carrying strap, you should never work alone.
  • Page 23 Original Operating Manual Tree Care Saw FX-KS126_rev03 Example of how to attach a chain saw for tree care to the user's harness. The possibility of attaching the chainsaw directly to the carrying strap reduces the risk of damaging the device when moving in the tree. The chainsaw should always be switched off when it is attached directly to the riser.
  • Page 24 Original Operating Manual Tree Care Saw FX-KS126_rev03 Example of how to attach a chain saw for tree care to the centered rear center of the riser 10.1.3 Using the chainsaw in the tree An analysis of accidents with these chainsaws during tree care work shows that the main cause is improper one-handed use of the chainsaw.
  • Page 25 Original Operating Manual Tree Care Saw FX-KS126_rev03 10.1.4 Secured working position for two-handed use In order to be able to hold the chainsaw with both hands, you should always try to adopt a safe working position in which the saw is guided as follows: at hip height when sawing horizontal pieces and at stomach height when sawing vertical pieces.
  • Page 26 Original Operating Manual Tree Care Saw FX-KS126_rev03 Example of a stirrup formed from an endless sling 10.1.5 Starting the chainsaw in the tree When starting the chainsaw in the tree you should a) apply the chain brake before starting; b) hold the chainsaw to the left or right of the body when starting: holding the chainsaw on the left side with the left hand on the front handle and pushing the chainsaw away from the body while holding the starting wire in the right hand, or...
  • Page 27 Original Operating Manual Tree Care Saw FX-KS126_rev03 10.1.5 Using the chainsaw with one hand Do not use the chainsaws for tree care with one hand in unstable working positions or instead of a hand saw for sawing off branch tips with a small diameter.

  • Page 28: Maintenance

    Original Operating Manual Tree Care Saw FX-KS126_rev03 11. Maintenance Before cleaning, checking or repairing the appliance, make sure that the engine has been switched off and has cooled down. Disconnect the spark plug to prevent accidental starting. For all maintenance work Wear safety gloves.
  • Page 29 Original Operating Manual Tree Care Saw FX-KS126_rev03 4. further reviews Check the device for fuel leaks, loose fasteners and damage to key components, in particular handles and chain stay attachment. If a defect is found, it must be repaired before the next start-up.
  • Page 30 Original Operating Manual Tree Care Saw FX-KS126_rev03 Saw chain To ensure safe and proper operation, the saw teeth must always be sharp. The saw teeth must be filed down when: - the sawdust assumes a powdery state - additional force is required for the cut - a straight cut is no longer possible - the vibrations become stronger - the fuel consumption rises...
  • Page 31 Original Operating Manual Tree Care Saw FX-KS126_rev03 (1) Suitable depth gauge (2) Depth gauge standard measure (3) Rounding off the tooth shoulder Make sure that each of the saw teeth has the same length and depth angle as shown in the figure. (4) Length of the sawtooth (5) angle of filing (6) Side plate angle...

  • Page 32: Transport And Storage

    Original Operating Manual Tree Care Saw FX-KS126_rev03 Chain stay • Turn the chain stay over from time to time to prevent one-sided wear. • The guide groove of the chain stay must always be at right angles, so check the groove for wear from time to time.

  • Page 33: Troubleshooting

    Original User Manual Tree Care Saw FX-KS126_rev03 13. Troubleshooting INTERFERENCE CAUSE DISPOSAL 1) Engine does • Check whether the • Use new fuel not start fuel contains water or is • Remove spark plug of inferior quality and dry it. Then pull •...

  • Page 34: Technical Data

    Original User Manual Tree Care Saw FX-KS126_rev03 14. Technical data Chainsaw model FX-KS126 (PN1E34F-2) Chainsaw without blade and saw chain 3.0kg Fuel tank 230cm3 Lube oil tank 160cm3 220mm Length of the LM rail cutting length recommended by the manufacturer 260mm Chain pitch 0.375"/ 9,525mm...

  • Page 35: Customer Service

    Original User Manual Tree Care Saw FX-KS126_rev03 15. Customer service Have your chainsaw repaired only by qualified personnel and only with original spare parts. This will ensure that the safety of the device is maintained. If you do not have the addresses of authorized service points, please contact the sales office where you purchased the device.

  • Page 36: Maintenance Plan

    Original User Manual Tree Care Saw FX-KS126_rev03 18. Maintenance plan...

  • Page 37: Ec Declaration Of Conformity

    Original Operating Manual Tree Care Saw FX-KS126_rev03 19 EC Declaration of Conformity ------------------------------------------------------------------------------------------- in accordance with Directive 2006/42/EC FUXTEC GmbH Kappstrasse 69, 71083 Herrenberg - Germany declares under its sole responsibility that the product chainsaw for tree care: FX-KS126 (PN1E34F-2)
  • Page 38 Original Operating Manual Tree Care Saw FX-KS126_rev03 FUXTEC GmbH KAPPSTRASSE 69 71083 HERRENBERG GERMANY Storage of technical documentation: FUXTEC GmbH ● Kappstrasse 69 ● 71083 Herrenberg ● Germany T. Gumprecht, Management...
