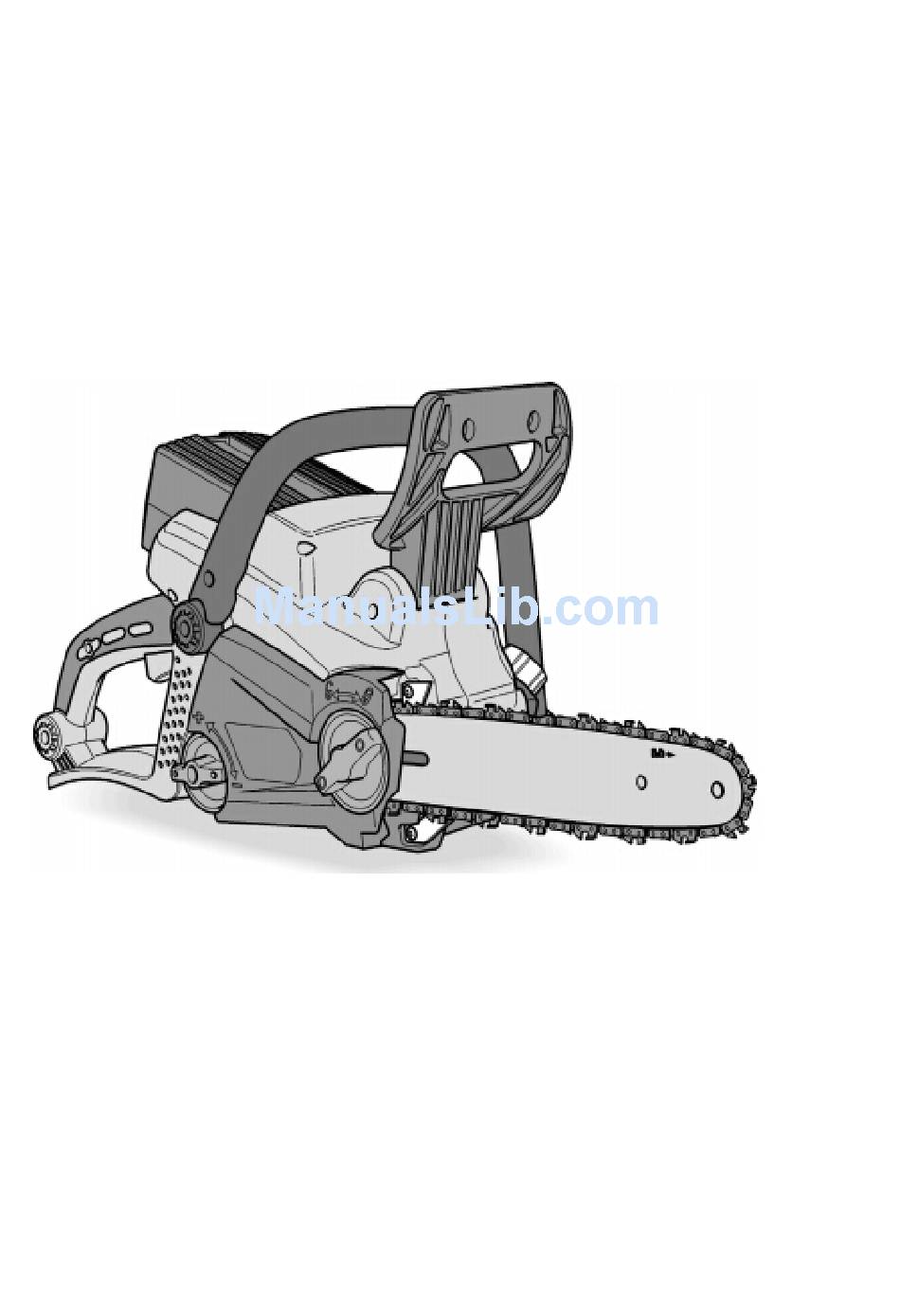

- Page 1 120V LITHIUM-ION CORDLESS CHAINSAW—Model: EA216/EA218 Operator’s Manual and Part List Before use please read & understand this manual, paying particular attention to the safety instructions. Retain these instructions for future reference.
- Page 2 Contents Symbols used in this manual ..Sym Sym Error! Reference source not found. Error! Reference source not found. Error! Reference source not found. Error! Reference source not found. Error! Reference source not found. Technical specifications Technical specifications Overview ....... Overview Instructions for use Instructions for use Basic working technique Basic working technique...
- Page 3 Before switching on the power tool, read the operating manual! Wear safety goggles. Wear ear protection. Protect the device from rain and do not leave it outdoors in the rain! Disposal information Tip contact may cause the guide bar to move suddenly upward and backwards, which may cause serious injury to user.
-
Page 4: Intended Use
Supervise children. This will ensure that children do not play with the unit. Intended use This garden tool is intended for sawing wood and felling trees in the private sector exclusively, not suitable for sawing plastic, masonry or building materials which are not made of wood, to use according to the descriptions and safety instructions indicated in manual. -
Page 5: Personal Safety
risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. - Page 6 Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 7 Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Safety instructions for chain saws When the saw is running, keep all body parts away from the saw chain. Before starting the saw, ensure that the saw chain touches nothing.
-
Page 8: Technical Specifications
Follow the instructions for lubrication, tensioning the chain and changing the accessories. An improperly tensioned or lubricated chain may either snap or increase the risk of a kickback. Keep the handles dry, clean and free of oil and grease. Greasy and oily handles are slippery and will cause loss of control. - Page 9 Type EA216 EA218 Nominal voltage Battery type EA20 EA30 Charger EC130 EC440 Chain speed (no load) Saw rail length inch Oil tank volume Weight (without battery) A-weighted sound pressure level according to ISO 22868, EN 3744: dB(A) Sound pressure level L dB(A) Sound power level L Uncertainty K Total vibration value according to ISO 22867: m/s² Emission value a m/s² Uncertainty K...
- Page 10 Overview Different chain saws are described in these instructions. The illustrated chain saw may differ in detail from the one which you purchased. 1.Rear handle 2.On/Off button 3.Switch interlock 4.Insertion slot for battery 5.Protection hood 6.Saw chain 7.Saw rail 8.Spiked bumper 9.Hand guard/chain brake 10.Handlebar...
-
Page 11: Instructions For Use
Instructions for use WARNING! Switch the unit off and remove the battery under the following conditions: if the unit is left unattended; before checking, cleaning or performing other work on the unit; if the unit starts vibrating excessively. Before initial operation Unpack the garden tool and accessories and check that no parts are missing or damaged. - Page 12 Place saw chain around the saw rail starting on the upper part of the rail. Slide the chain in the slot around the saw rail. When attaching the chain, ensure that it is in the correct running direction. Place elongated hole of the saw rail on the stud bolt a and the guide bolt b on the chain saw. Place the saw chain around the chain wheel.
- Page 13 Pour in chain oil CAUTION! Fill the unit only with an environmentally compatible quality chain and bar lubricant (according to RAL-UZ48). Do not use waste oil. Renewed contact with waste oil can cause skin cancer. Waste oil is environmentally harmful. Waste oil does not have the necessary lubricating properties and is unsuitable for chain lubrication.
-
Page 14: Chain Brake
CAUTION! Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard! Chain brake WARNING! Before using the chain saw, always check that the chain brake is in perfect working order. Otherwise, do not use the chain saw and have it repaired by a qualified technician or a service centre. -
Page 15: Checking The Chain Lubrication
Topping up the chain oil CAUTION! Fill the unit only with an environmentally compatible quality chain and bar lubricant (according to RAL-UZ48). Do not use waste oil. Renewed contact with waste oil can cause skin cancer. Waste oil is environmentally harmful. Waste oil does not have the necessary lubricating properties and is unsuitable for chain lubrication. - Page 16 Press the release button and hold down (1.). Press the rear On/Off switch (2.).The saw chain runs. Switching off Release the On/Off switch. Battery state of charge Press the button on the battery to check the state of charge at the state of charge indicator LED.
-
Page 17: Before Each Use
Before each use Check that all parts of the power tool are present, firmly attached and undamaged. Check that the chain tension is correct. Check that the chain brake functions. Check the chain lubrication. Check that there are no leaks. Correct posture Risk of injury! Never work on unstable ground! Never work above shoulder height! - Page 18 Stop the engine. Wait until all rotating parts have come to a standstill. Remove the battery. Place sheath on cutting mechanism. Activate chain brake. Leave power tool to cool down. Basic working technique Risk of injury! This section deals with the basic working technique when handling the power tool. The information given here does not replace the extensive training and experience of a specialist.
-
Page 19: Felling A Tree
pushing backwards, there is a risk that only the tip of the saw rail will make contact with the wood and cause a kickback. Risk of death or extremely severe injuries! Felling a tree Risk of injury! Felling and limbing work may be performed by trained persons only! There is a risk of life-threatening injuries! Before starting felling work, ensure that: there are no unauthorised persons and no animals within the fall area (A) of the tree;... -
Page 20: Removing Branches
Risk of injury! Never saw the tree trunk all the way through. The area (C) is used as a “hinge” and provides a defined direction of fall. When felling, stand only at the side of the tree to be felled! There is a risk of life-threatening injuries! Trunks lying flat on the ground Cut halfway into the trunk, then turn around and saw through from the opposite side. -
Page 21: Maintenance And Care
10–15 cm from the base of the branch saw upwards into the branch 1/3 of the branch diameter (1). A little further up the branch saw through the branch from top to bottom (2). Make a cut close to the trunk (3). Make the cut from top to bottom. When limbing trunks lying flat on the ground, first always saw off the branches pointing upwards. - Page 22 Cleaning WARNING! Do not use water or liquid detergents. CAUTION! Clean the unit after every use. Failure to clean the unit can damage the materials and cause malfunctions. Clean the unit with a damp cloth and a soft brush. Remove the chain cover, and then use a soft brush to remove debris from the saw rail, saw chain, chain wheel and chain cover.
- Page 23 Place sheath on cutting mechanism. Repairs Check the unit for damage. Repairs may be carried out by an authorised customer service centre only. Disposal information WARNING! Render redundant garden tools unusable: mains operated tool ,by removing the power cord, battery operated tool by removing the battery. Recycling raw materials instead of waste disposal.
