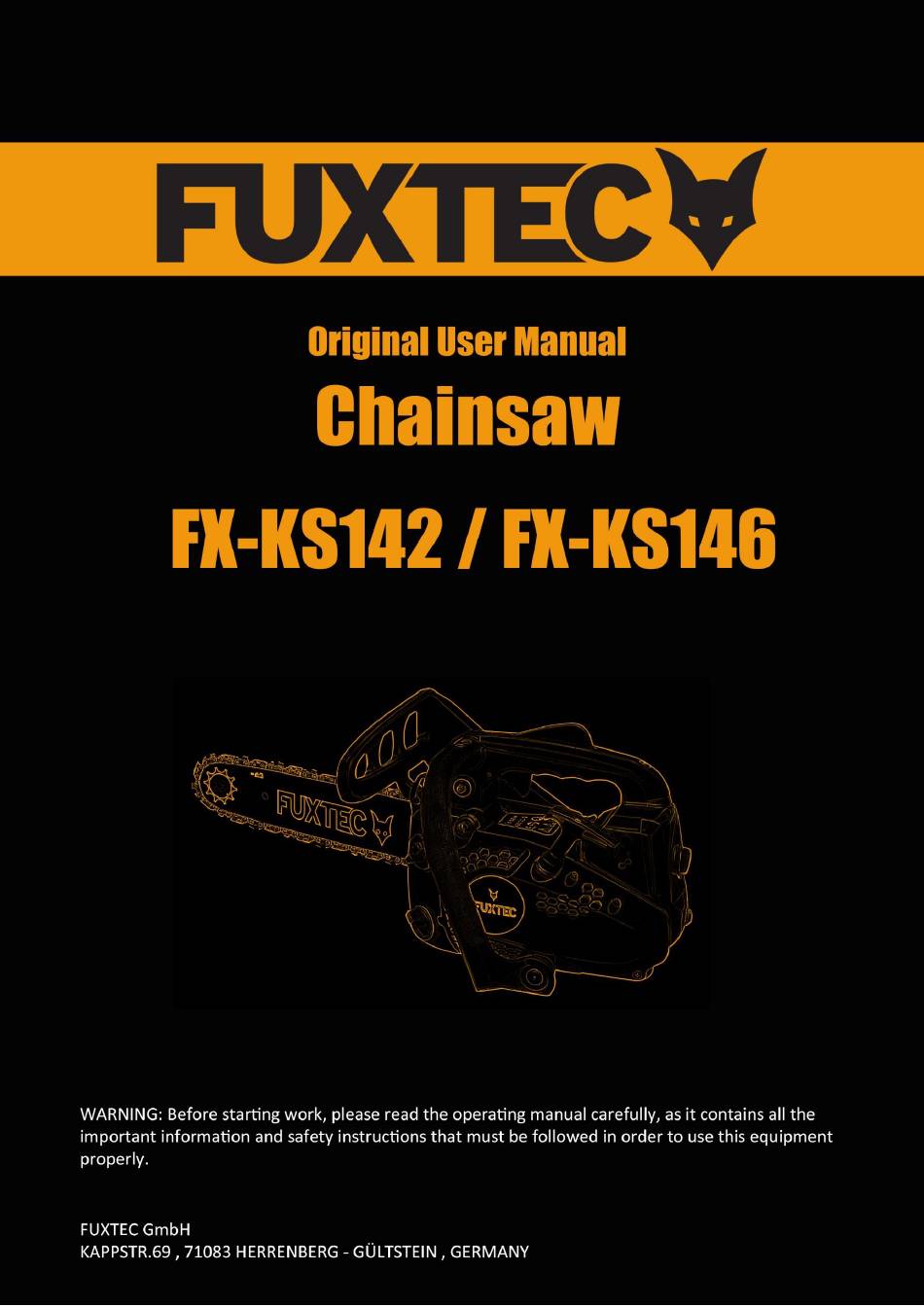

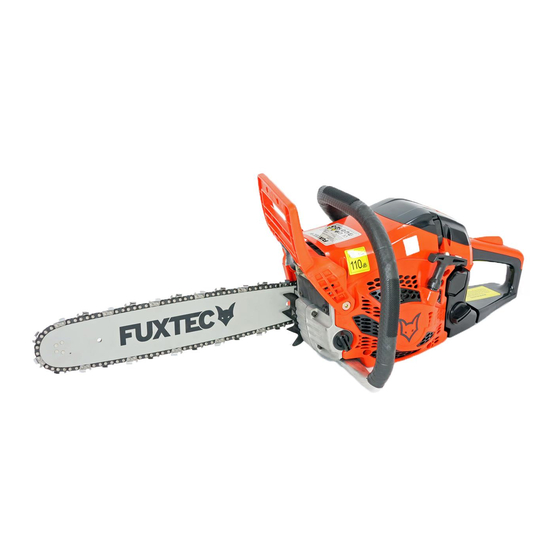

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Table of contents Intended/non-intended use ............3 Parts overview ................. 4 Warnings on the device ............. 5 Explanation of other symbols on the device ........6 Safety Instructions ..............8 Mounting the blade and the saw chain ........13 Fuel and chain oil ..............

  • Page 3: Intended/Non-Intended Use

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 1. Intended/non-intended use The chainsaw is used for cutting branches, tree trunks, squared timber up to a diameter according to the cutting bar length. Only materials made of wood may be processed. Use adequate protective equipment during use according to the operating instructions.

  • Page 4: Parts Overview

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Parts overview 1. Front hand guard/chain brake lever 2. Starter handle 3. Air filter cover 4th choke 5. Throttle lock 6. Rear handle 7. Throttle lever 8. Stop switch 9. Fuel tank 10. Oil tank 11.

  • Page 5: Warnings On The Device

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Notes on safety devices in the parts overview: front hand guard/chain brake lever The brake must always be locked during the starting procedure and transport of the device. To do this, push the brake lever forward in the direction of the blade.

  • Page 6: Explanation Of Other Symbols On The Device

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Explanation of other symbols on the device Symbols for safety functions and maintenance are stamped on the device. Proceed carefully according to these indications and don't make any mistakes. Inlet opening for refilling "MIX GASOLINE"...
  • Page 7 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Pull starter with Easy Start function. To start the device, slowly and evenly pre-tension the start spring by pulling. No jerky pulling necessary. Do not pull beyond the dead centre, otherwise the cable may break...

  • Page 8: Safety Instructions

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Safety Instructions Be sure to read before using this device: Read this manual carefully to understand how to use this device correctly Never operate the chainsaw if you are tired, excited or physically unwell. Even after taking medication that has a calming effect and drug use, never use the chainsaw.
  • Page 9 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Be careful when handling fuel. If fuel is spilled, wipe up immediately and remove the chainsaw at least 3m from the fuelling point before starting the engine. Keep all sources of sparks or fire (e.g. burning...
  • Page 10 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 All maintenance work on the chainsaw - with the exception of the work listed in the operating instructions - must be carried out by qualified maintenance personnel Be especially careful when cutting bushes and undergrowth, as thin twigs can get caught in the chain and throw you off balance or cause injury.
  • Page 11 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 PRECAUTIONS FOR CHAINSAW USERS WITH REGARD TO KICKBACK CAUTION Kickback of the chainsaw can be caused by contact of the guide bar tip with a solid object, or if the wood to be cut is compressed and the guide bar becomes jammed during cutting.
  • Page 12 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Follow the manufacturer's instructions when servicing and sharpening the chain. If the guide bar or chain needs to be replaced, fit only the manufacturer's recommended replacement parts or equivalent.

  • Page 13: Mounting The Blade And The Saw Chain

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Mounting the blade and the saw chain Before mounting, the claw stop (No.15, page 5) must be mounted at the intended location Please fasten the claw stop (A) with the Allen screws (B) included in the package...
  • Page 14 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 bolts (3). When sliding on the chain cover, the locking wheel (2) must be engaged in the holder (5) provided for this purpose on the chain brake. Adjust the position of the chain tensioning nut...
  • Page 15 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 7. Adjust the chain tension by turning the tensioning screw until the brackets just touch the bottom of the guide rail. 8. Tighten the nuts securely with the guide tip held (12-15Nm). Then check the chain for a smooth turn and correct tension when moving it by hand.

  • Page 16: Fuel And Chain Oil

    2-stroke air-cooled petrol engines. For this purpose, we recommend specially adapted FUXTEC 2-stroke oil "Made in Germany" for a long durability of the engine (available directly from the manufacturer). Carefully fill the two-stroke mixture into the tank (p.5 No.9).
  • Page 17 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08...

  • Page 18: Cold Start Of The Chainsaw

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Cold start of the chainsaw Pull out the choke (1) knob as far as it will go Press the primer pump (2) 2-3 times Block the chain brake (3) by pushing it forwards until you hear it engage Set the STOP switch (4) to position "1".

  • Page 19: Warm Start Of The Chainsaw

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Warm start of the chainsaw The choke button (1) is not pulled when warm Block the chain brake (3) by pushing it forwards until you hear it engage Set the STOP switch (4) to position "1".

  • Page 20: Operating The Chainsaw

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 10. Operating the chainsaw The saw-chain starts to rotate as soon as the motor starts, so make sure that there is a sufficient safety distance CHECKING THE OIL SUPPLY After starting the engine, run the chain at medium speed and check that the chain is throwing oil, as shown in the figure.
  • Page 21 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 CHAIN BRAKE This device is equipped with an automatic brake. If a kickback occurs during sawing, the brake is automatically released by the inertia acting on the weight inside the front hand guard and stops the rotation of the saw chain.
  • Page 22 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 ATTENTION Before starting work, first read the section "Safety instructions". For practice purposes, it is recommended that you first saw through pieces of wood that are easy to cut. This also helps you to become familiar with the operation of the chainsaw.
  • Page 23 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 PRECAUTIONS AGAINST RETURNS This chainsaw is equipped with a chain brake which stops the chain immediately if the saw kicks back - provided that the brake device is working properly. For this reason, the function of the chain brake must be checked before starting work.
  • Page 24 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 CUTTING DOWN A TREE 1. Determine the direction of fall of the tree before starting work, taking into account the direction of the wind, the inclination of the tree, the position of the thick branches, the ease of subsequent work and other factors 2.
  • Page 25 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Logs lying flat on the ground Cut the log to half way, then turn it over and saw through from the opposite side. Supported logs In area "A" first cut from the bottom to about one third of the log diameter, then make the final cut from top to bottom.

  • Page 26: Maintenance

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 11. Maintenance Before cleaning, checking or repairing the appliance, make sure that the motor has been switched off and has cooled down. Remove the spark plug connector to prevent accidental starting. MAINTENANCE AFTER EACH USE 1.
  • Page 27 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 4. Further reviews Check the device for fuel leaks, loosened fasteners and damage to key components, especially handles and guide rail mounting. If a defect is found, it is imperative that it be repaired before the next use.
  • Page 28 - Use a round file with the appropriate size for the chain: Model FX-KS146: 0.325 / 058 - 64 Model FX-KS142: 0.325 / 058 - 64 Place the file on the saw tooth and turn it into Push straight alignment forward. Keep the...
  • Page 29 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 After each saw tooth has been refiled, place a depth gauge on top and refile the saw teeth to the correct size. Make sure that the front edges are rounded to reduce the risk of kickback or tearing of the retaining straps.

  • Page 30: Transport And Storage

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Guide rail - Turn the guide rail over from time to time to to prevent one-sided wear. - The guide groove of the guide rail must always be at right angles, so check the groove for wear from time to time.

  • Page 31: Troubleshooting

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 13. Troubleshooting INTERFERENCE CAUSE DISPOSAL 1) Motor does not - Check whether the fuel - Use new fuel start contains water or is of - Remove spark plug inferior quality and dry it. Then pull...

  • Page 32: Technical Data

    106.6 dB(A), level K=3dB(A) K=3dB(A) Guaranteed sound power 110 dB(A) 110 dB(A) level Possible combinations blade / saw chain from FUXTEC / Kangxin for model FX-KS142, FX-KS146 Sword 18" BE18-72-5810P Saw chain 18" B-58-72 Sword 16" BE16-64-5812P Saw chain 16"...

  • Page 33: Customer Service

    Have your chainsaw repaired only by qualified personnel and only with original spare parts. This will ensure that the safety of the device is maintained. Contact: FUXTEC GmbH, Kappstrasse 69, 71083 Herrenberg, info@fuxtec.de 16. Warranty The warranty period is 24 months from date of purchase. Please keep your proof of purchase in a safe place.

  • Page 34: Ec Declaration Of Conformity

    Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 18. EC Declaration of Conformity in accordance with Directive 2006/42/EC FUXTEC GmbH Kappstrasse 69, 71083 Herrenberg - Germany declares under its sole responsibility that the product chainsaw for forest work for cutting tree wood...
  • Page 35 Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08 Storage of technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany Tim Gumprecht, Management...
