ProSim™ 8
Getting Started Manual
Item Name
AC/DC Supply Connector

Battery Charge LED

Battery Latch

Mini B USB Device Port

USB A Controller Port

ECG BNC Connector

Air Port Connector

Magnetic Holder for SpO2

Finger Module
10

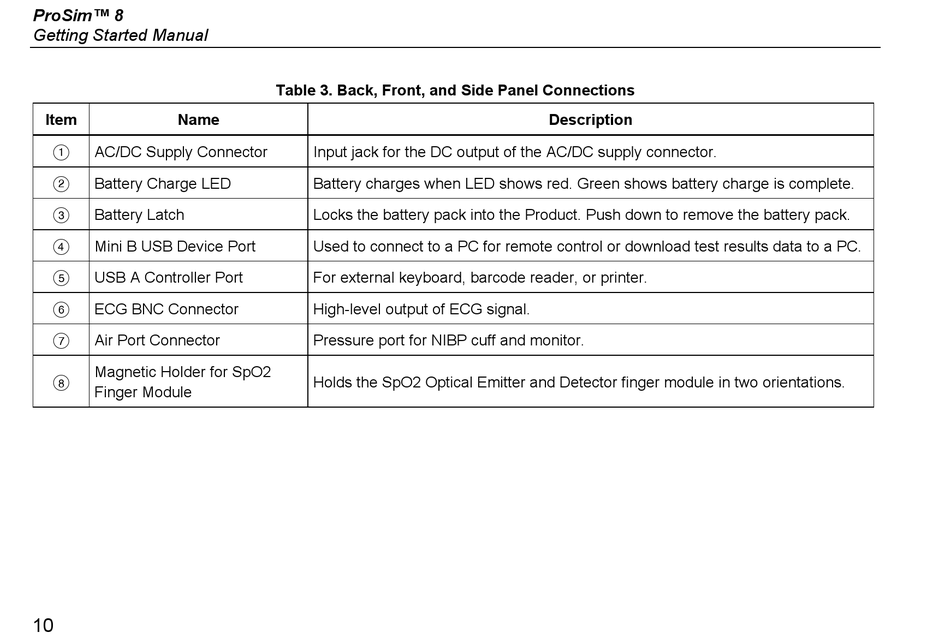

Table 3. Back, Front, and Side Panel Connections
Input jack for the DC output of the AC/DC supply connector.
Battery charges when LED shows red. Green shows battery charge is complete.
Locks the battery pack into the Product. Push down to remove the battery pack.
Used to connect to a PC for remote control or download test results data to a PC.
For external keyboard, barcode reader, or printer.
High-level output of ECG signal.
Pressure port for NIBP cuff and monitor.
Holds the SpO2 Optical Emitter and Detector finger module in two orientations.
Description
