HOW TO CONNECT GAS LINE

WARNING: Explosion Hazard
• Use a new CSA International approved gas supply line�
• Install a shut-off valve�
• Securely tighten all gas connection�
• If connected to LP, have a qualified technician make sure gas pressure does not exceed 14" (36cm) water
column�
• Examples of a qualified technician include: licensed heating personnel, authorized gas company personnel,
and authorized service personnel�
• Failure to do so can result in death, explosion or fire�
How to Install Typical Flexible Connection (Refer to Figure 12�)
1� Apply pipe-joint compound made for use with NG (natural gas) to the male threads of the adapter�
2� Insert adapter into outlet of the gas pressure
regulator, and then tighten using two 10"
adjustable wrenches� Be sure flow arrow on
regulator is pointing up toward the range gas
inlet pipe�
3� Install washer in female end of adapter, and
then connect adapter to range gas inlet pipe
via compression fitting and tighten�
NOTE: Washer must be used to create a leak
proof seal�
How to connect gas line from gas pressure regulator
to gas supply (Refer to Figure 13�)
1� Apply pipe-joint compound made for use with
NG (natural gas) to the tapered (NPT) threads
of both adapters supplied with gas line kit�
2� Attach one adapter to the gas pressure
regulator and the other to the gas shut-off
valve and tighten both�
NOTE: DO NOT rotate the gas
pressure regulator�
3� Attach the flexible gas
supply line to adapters, one
adapter at each end�
IMPORTANT: All connections
must be wrenched tightened
(requires two 10" adjustable
wrenches)�
CAUTION: DO NOT over-tighten
the connections to the gas
pressure regulator� Overtightening
may crack the regulator creating
a gas leak�

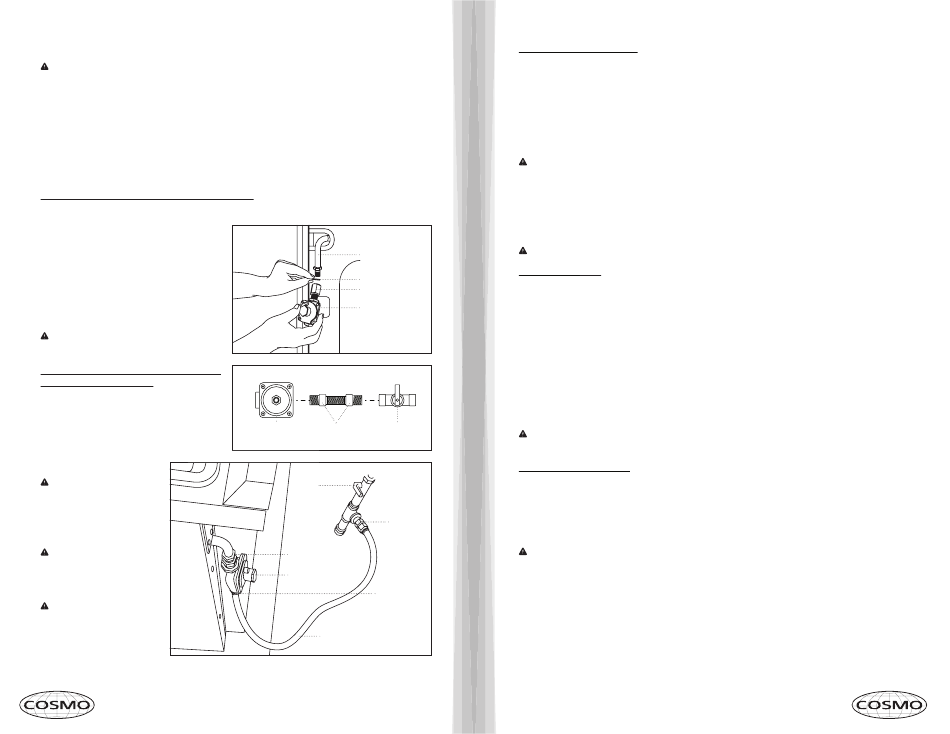

Figure 12
Gas Line from Range
Washer (provided)
Adapter (provided)
Gas Pressure
Regulator (provided)
Figure 13
Pressure Regulator Adapter Gas Shut-Off
(provided) (provided) Valve
Figure 14
Gas
Shut-Off
Valve
Adapter
(from Gas
Supply
Adapter (provided)
Line Kit)
Gas Pressure Regulator
Adapter (from
Gas Supply
Line Kit)
Gas Supply Line
14
How to Complete Gas Connection
1� Open the manual shut-off valve in the gas supply line�
• The valve is open when the handle is parallel to the gas pipe�
2� Test all connections by brushing on an approved noncorrosive leak-detection solution�
• Bubbles indicates a leak� Correct any leaks found�

HOW TO CONNECT ELECTRIC POWER

WARNING: Electrical Shock Hazard
• Plug into a grounded 3 prong outlet�
• DO NOT remove the ground prong from the power cord plug�
• DO NOT use an adapter�
• DO NOT use an extension cord�
• Failure to do so can result in death, fire, or electrical shock�
IMPORTANT: For personal safety, this appliance must be properly grounded�
Electrical Requirements
• A 120 volt, 60Hz�, AC only 15-amp fused, electrical circuit is required� A time delay fuse or circuit breaker is
also recommended� It is recommended that a separate circuit serving only for this range is provided�
• Electronic ignition systems operate within wide voltage limits, but proper grounding and polarity are
necessary� Check that the outlet provides 120-volt power and is correctly grounded�
• This range is not required to be plugged into a GFCI (Ground-Fault Circuit Interrupter) outlet� It is
recommended that you DO NOT plug an electric spark ignition gas range or any other major appliance into
a GFCI wall outlet as it may cause the GFCI to trip during normal cycle�
• Performance of this range will not be affected if operated on a GFCI-protected circuit� However, occasional
nuisance tripping of the GFCI break is possible due to the normal operating nature of the electronic gas
ranges�
NOTE: The metal chassis of the range must be grounded� If the metal chassis is not grounded, the control panel
will not operate� Check with a qualified technician to ensure the metal chassis of the range is grounded properly�
Steps to Connect Electric Power
1� Slide Range close to final location�
2� Plug into a grounded 3 prong outlet�

HOW TO INSTALL RANGE TO FINAL LOCATION

IMPORTANT: If the range is moved to adjust the leveling legs, make sure when placing the oven back into its
final place that the anti-tip bracket is engaged�
1� When sliding the range into its final location ensure the rear leveling legs slide into the anti-tip bracket�
2� Place the outside of your foot against the bottom of the front of the range to keep the range from moving,
and then grasp the back of the range�
3� Slowly attempt to tilt the range forward� Use caution when tilting the range forward�
4� If the range lifts more than 1/2" (1�3cm) off the floor without resistance, stop tilting the range and lower it
gently back to the floor�
