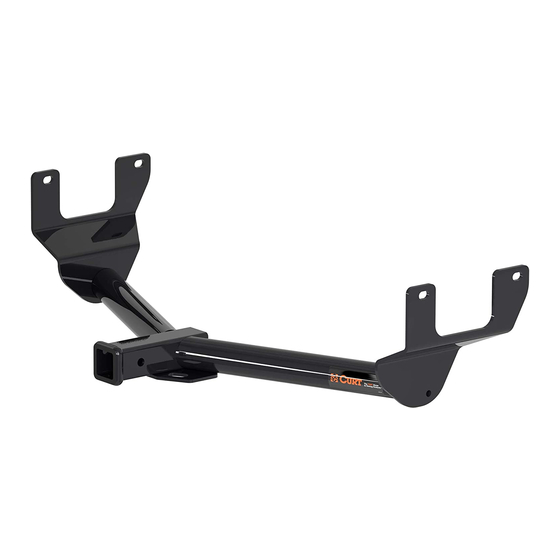

13337
5/7/2020
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM
QTY
PART NUMBER
1
4
10-10275
HHCS,M12x1.25,35,CL10.9,YZ
2
4
30-00149
WASHER,S-CON,1/2,YZ
TOOLS REQUIRED
RATCHET
TORQUE WRENCH
19mm SOCKET
SAFETY GLASSES
2
1
36
HITCH WEIGHT:
LBS.
INSTALL TIME
PROFESSIONAL:
20
MINUTES
NOVICE (DIY):
40
MINUTES
INSTALL NOTES:
- LOWER EXHAUST
- NO DRILLING

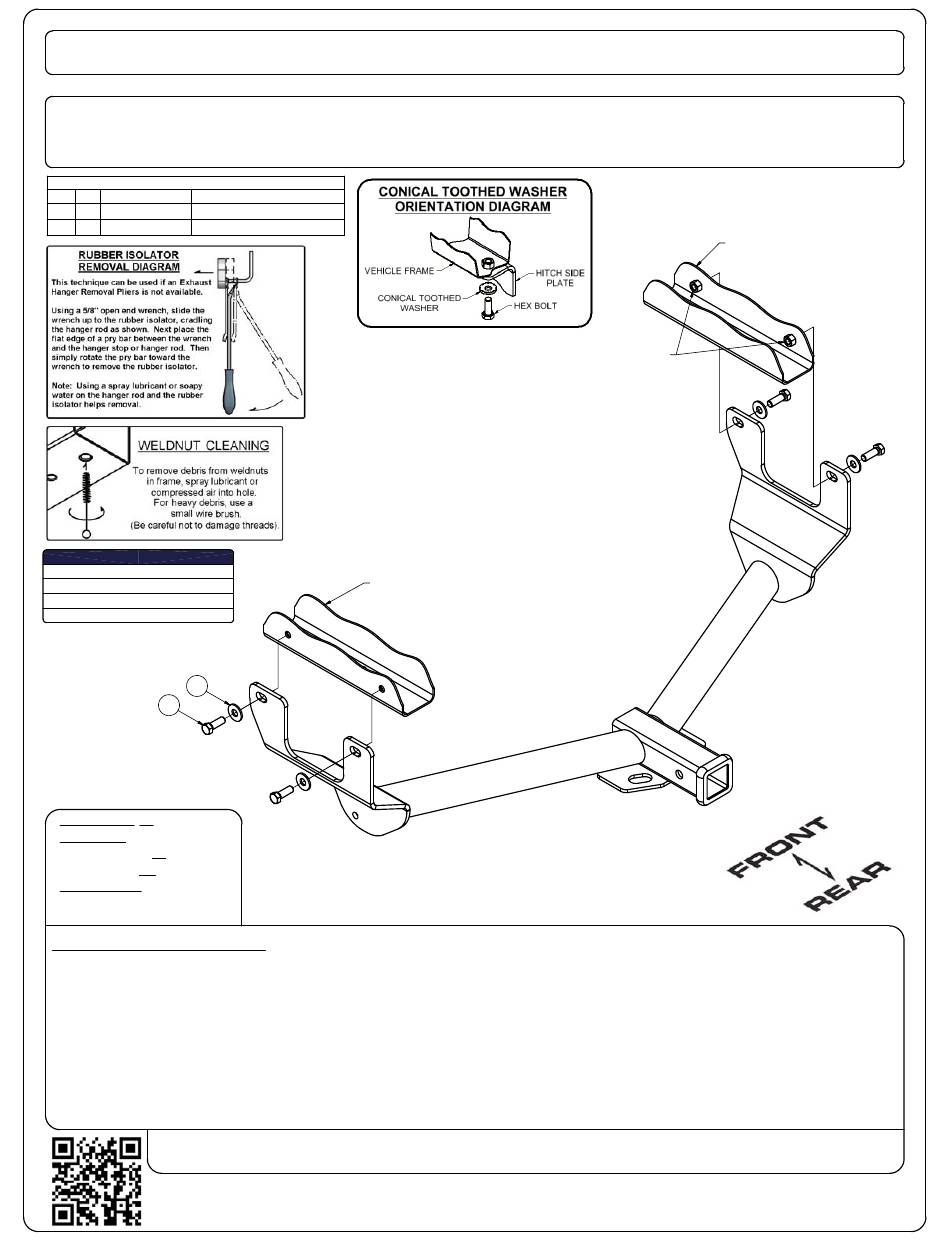

INSTALLATION STEPS
1. Lower the exhaust by removing the (3) rearmost rubber exhaust isolators. Note: Support the exhaust during
installation to prevent damage.
(See Rubber Isolator Removal Diagram.)
2. Raise hitch into position and loosely secure hitch with M12 bolts and conical washers.
3. Torque all M12 fasteners to 60 ft-lbs.
4. Raise exhaust and reinstall the rubber isolators.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
Scan
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
for more
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
information
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
LEXUS NX200t/NX300h
DESCRIPTION
DRIVER SIDE
FRAME RAIL
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
3500
LBS. TRAILER WEIGHT &
4000
LBS. TRAILER WEIGHT &
1-877-287-8634
EXISTING WELDNUTS
(BOTH SIDES)
525
LBS. TONGUE WEIGHT.
525
LBS. TONGUE WEIGHT
PASSENGER SIDE
FRAME RAIL
