Curt Manufacturing 13118 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Weight Distribution Capacity
Weight distribution (WD)
WD tongue weight (WDTW)
Parts List
Item Qty Description
1 2 U-shaped spacer,
3/16" x 1" x 2"
2 6 Square-hole spacer,
3/8" x 1-1/4" x 2-1/2"
3 4 Carriage bolt,
5/8"-11 x 1-3/4", grade 8
4 4 Serrated-flange nut,
5/8"-11, grade 8
5 4 Fishwire, 5/8"
6 1 Flange bolt ,
M8 -1.25 x 25mm, CL10.9
Tools Required
Ratchet Torque wrench
Socket, 10mm Socket, 15/16"
Socket, 13mm Masking tape
* For a tools reference guide visit
curtmfg.com/trailer-hitch-installation
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.

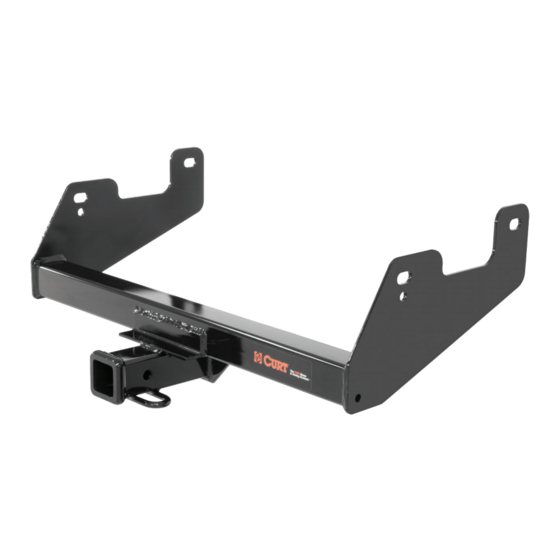

Product Photo
6,000 lbs.
900 lbs.
10,000 lbs.
1,000 lbs.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires the use of fishwire to install hardware.
You will be required to lower the spare tire. If present, you may
have to temporarily remove the ground cable. No drilling is required.
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 13118-INS-RA • 05/13/2020 • ECN7022 • PAGE 1
13118
