Summary of Contents for Bartscher PETIT

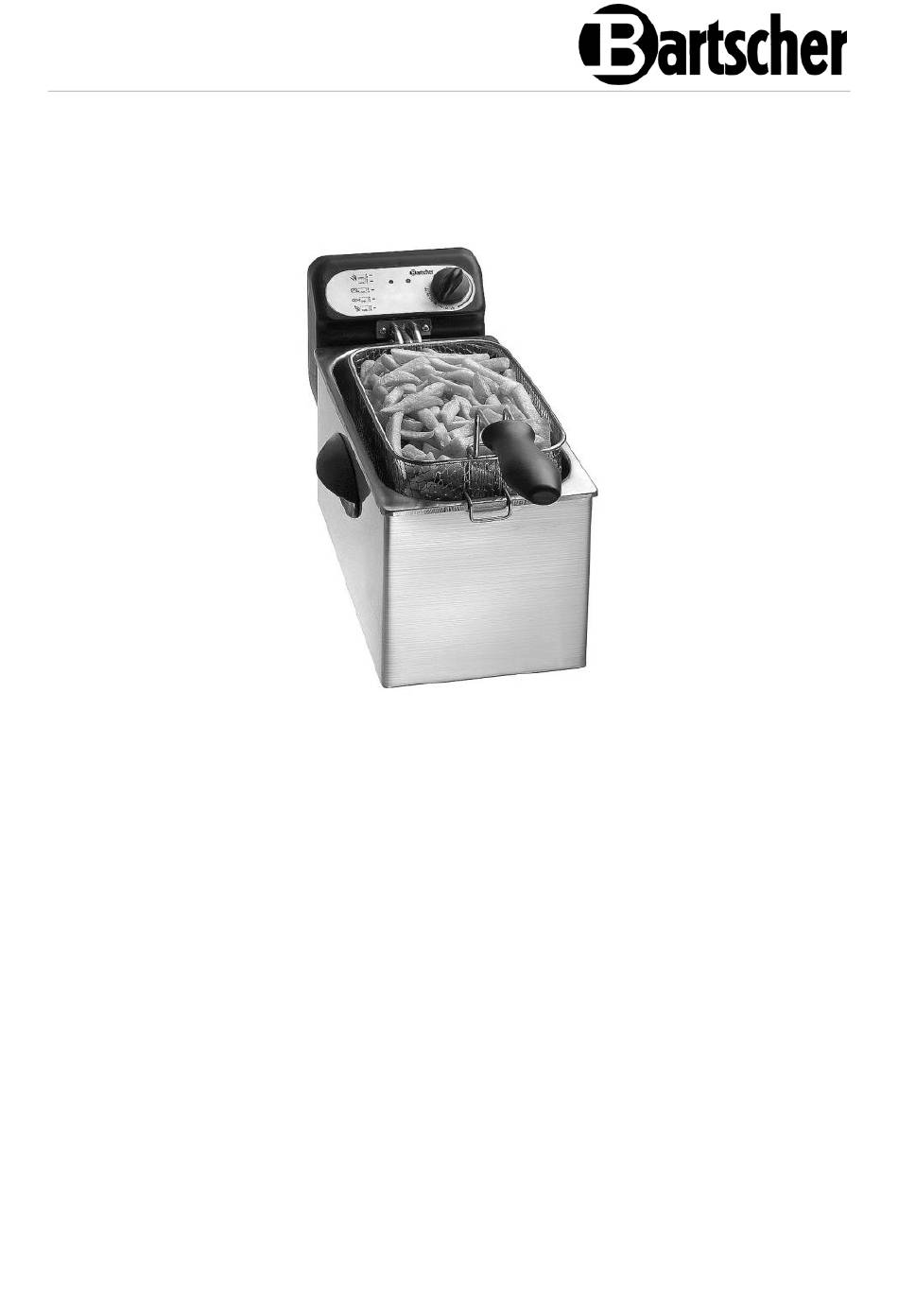

- Page 1 PETIT 165103...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 6.0 Date of preparation: 2020-07-10...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
- Page 7 Safety Safety during deep fat frying • Never leave the operating appliance without supervision. Possible malfunctions may lead to overheating and ignition of frying oil / fat in cubes (blocks). • If due to overheating, the frying oil / fat in cubes (blocks) catches fire, put the lid on and disconnect the appliance from the power supply.
- Page 8 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Deep fat frying of adequate food products. The appliance is not designed for continuous operation in industrial applications. -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Deep fat fryer PETIT 165103 Art. No.: Material: stainless steel, plastic Number of tanks: Tank volume, in litres: Tank dimensions (W x D x H), in mm: 170 x 320 x 148 Number of baskets:... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Connection box with heating element 2. Tank 3. Grip 4. Housing 5. Basket 6. Lid Functions of the Appliance The deep fat fryer is intended for frying suitable food products in hot oil. 165103 11 / 24... -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 Installation and operation Observe the maximum allowable level of filling the basket with products for frying. If water enters hot frying oil, it may cause spatters of oil and scalding. Use only dry products for frying. When deep frying in fat, even drops of water under the lid may cause spatters of hot oil or even small outbursts.
- Page 17 Installation and operation Instructions for using frying oil or fat in cubes (blocks) • Always use oil suitable for frying (e.g. vegetable oil, sunflower oil, peanut oil, etc.) or fat in cubes/blocks only. NOTE! Melt (dissolve) the fat in cubes (blocks) beforehand in a separate dish! •...
- Page 18 Installation and operation Operating Elements Fig. 2 7. Recommendations for temperature set-ups 8. Operation indicator light (red) 9. Heating-up indicator light (green) 10. Set temperature indicator light 11. Temperature controller Switching on CAUTION! The deep fat fryer can only be used by individuals who have been instructed in the proper use of the appliance and dangers that may arise during the frying process.
- Page 19 Installation and operation 2. Set the temperature controller by rotating clockwise from the set temperature indicator light position to the required temperature. The temperature may be set in the range of 130 °C – 190 °C. NOTE! When setting the temperature for preparing food, consider recommendations for temperature set-ups provided in the operating panel.
- Page 20 Installation and operation NOTE! Do not overfill the basket with products for frying, as when the temperature of frying oil / fat drops, it gets too greasy. Do not fill the basket with more than the following amount of food products: 0.4 kg.
-
Page 21: Cleaning
Cleaning Overheating Protection If the deep fryer is switched on accidentally with too little or no frying oil / fat in cubes (blocks) in the tank, then the overheating protection mechanism automatically switches the appliance off after reaching the temperature of approx. 230 °C to protect it against overheating. -
Page 22: Cleaning
Cleaning Cleaning 1. At the end of a working day clean the appliance thoroughly. 2. If placed on the tank, remove the lid and take out the frying basket from the tank. 3. Remove the connection box with the heating element from the appliance. This allows for easy washing of the heating element and the tank. -
Page 23: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution The appliance is Incorrectly connected Remove the plug and connected to the power... -
Page 24: Disposal
Disposal Error Possible Cause Solution The heating elements The overheating Press the RESET button protection tripped. in the connection box. ceases to heat up after some time. If the overheating protection is tripped again after a short time, contact the service company. Disposal Electrical Appliance Electric appliances are marked with this symbol.
