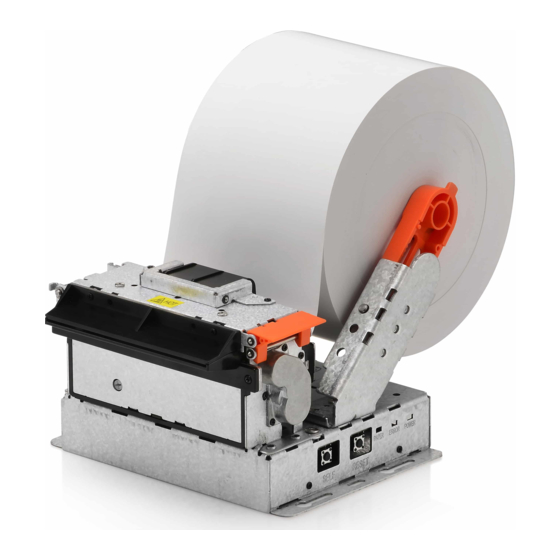

Kiosk printer
Hide thumbs Also See for BK3-31:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Connection Manual
BK3-31
KIOSK PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK3-31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON BK3-31

Summary of Contents for BIXOLON BK3-31

  • Page 1 Network Connection Manual BK3-31 KIOSK PRINTER Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    BK3-31 Table of Contents 1. Manual Information ...................... 3 2. Specifications ......................3 3. How to Connect......................4 3-1 Connecting Printer ....................4 3-2 Checking Network Setting ..................4 3-3 LAN Setting Values ....................5 4. Ethernet Test by using Windows Test Page .............. 6 5.

  • Page 3: Manual Information

    BIXOLON. BIXOLON has no liability for loss or damage arising from or relating to your use of the information in the document. © BIXOLON Co., Ltd. All rights reserved.

  • Page 4: How To Connect

    BK3-31 3. How to Connect To change the printer settings, establish a connection by configuring its LAN and the network settings of the host e.g., PC, PDA. 3-1 Connecting Printer • Connect the LAN cable to the printer. Establish a connection with the hub or host using a LAN cable.

  • Page 5: Lan Setting Values

    BK3-31 3-3 LAN Setting Values Classification Item Description Input Range Inactivity Time TCP connection hold time 0~3600 integer IP Assignment IP Assignment Method DHCP/Manual Method Network IP Address Printer IP IP Address Subnet Mask Subnet mask IP Address Gateway Default Gateway...

  • Page 6: Ethernet Test By Using Windows Test Page

    Operating systems that allow you to use the Windows printer driver are Windows, XP, Server 2003, VISTA, 2008 Server, 7, 8, 10. You can download the latest version of Windows driver from our Note home page. (www.bixolon.com) 1) Double-click the Windows Driver installation file. 2) Click Install. - 6 -...
  • Page 7 BK3-31 3) Select Installation and click Next.. 4) Select Model Name and click Next. - 7 - Ver. 1.00...
  • Page 8 BK3-31 5) Select Ethernet and click Add TCP/IP Port. 6) Enter the IP address and port number, and then click Next. - 8 - Ver. 1.00...
  • Page 9 BK3-31 7) Click Next. 8) Click Next. - 9 - Ver. 1.00...
  • Page 10 BK3-31 9) Click Next. 10) Click Finish. - 10 - Ver. 1.00...
  • Page 11 BK3-31 11) Open the printer properties window in the Windows OS. (1) Installing on Windows XP / Server 2003 ※ Control Panel – Printers and Faxes. (2) Installing on Windows VISTA / Server 2008 / 7 / 8 / Server 2012 / 10 ※...
  • Page 12 BK3-31 14) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. - 12 - Ver. 1.00...

  • Page 13: Factory Reset

    BK3-31 5. Factory Reset 5-1 Initializing LAN Setting • This function changes the LAN settings of the printer to the initial factory settings. 1) When the printer boots up, select the “VMSM selection mode” through SELF TEST. Then select “8:LAN Factory Reset” in the “VMSM selection mode”.

  • Page 14: Factory Reset Values

    BK3-31 5-2 Factory Reset Values Inactivity time IP Assignment Automatic(DHCP) Network Method Local Port 9100 - 14 - Ver. 1.00...

  • Page 15: Troubleshooting

    BK3-31 6. Troubleshooting - IP Address Check the band of the IP Address. Check whether the bands of the Check network printer and the AP (or wireless terminals) are the same. setting The first three digits of the four digit value of the IP address must be (Refer to the same.
  • Page 16 BK3-31 When you see “Request timed out.” as shown below, it means that there is no collision. The corresponding IP can be used. On the other hand, if there is a reply as shown below, then the corresponding IP is used by another network terminal and it cannot be used for the printer IP.
