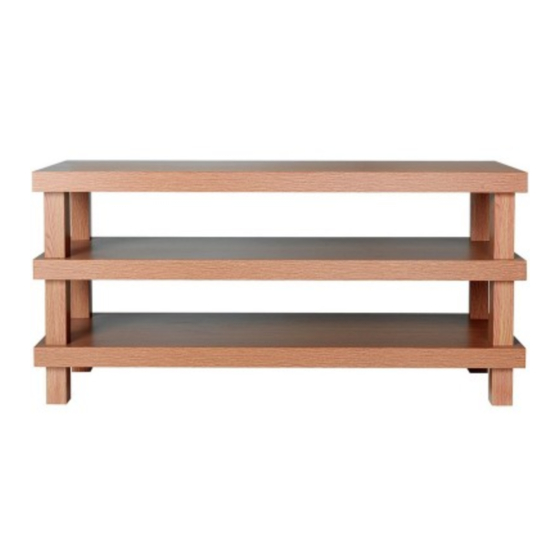

Chunky TV Unit
Assembly Instructions -
Dimensions
Width - 120cm
Depth - 40cm
Height - 58cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400800
Please keep for future reference
418/5897
issue1 - 18/03/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Chunky 418/5897
Summary of Contents for Argos Chunky 418/5897
- Page 1 Chunky TV Unit Assembly Instructions - 418/5897 Please keep for future reference Dimensions Width - 120cm Depth - 40cm Height - 58cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400800 issue1 - 18/03/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly We do not Check you have all the During assembly do not stand recommend the use components and tools listed on or put weight on the product, this could cause damage.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:0345 6400800 Please check you have all the panels listed below T op (120 x 40cm) Through hole Shelf (120 x 40cm) X 2...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Foot x 4 Post with short bolt x 4 Post with long bolt x 4...
- Page 5 Assembly Instructions Step 1 Step 1 Fitting the legs Note: It would be useful to ask someone to help you at this stage. Screw in the post with short bolt into Top panel b: Put the shelf panel onto unit. Fit Shelf onto the unit, by screw in the post...
- Page 6 Assembly Instructions Step 1 Step 1 d: Put the shelf panel onto unit again. Screw in Foot into Shelf panel...
- Page 7 Assembly Instructions Step 2 Finishing the unit Turn the unit upright and place in the desired location. Note: Before use always make sure the unit is secure. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline : 0345 6400800...
