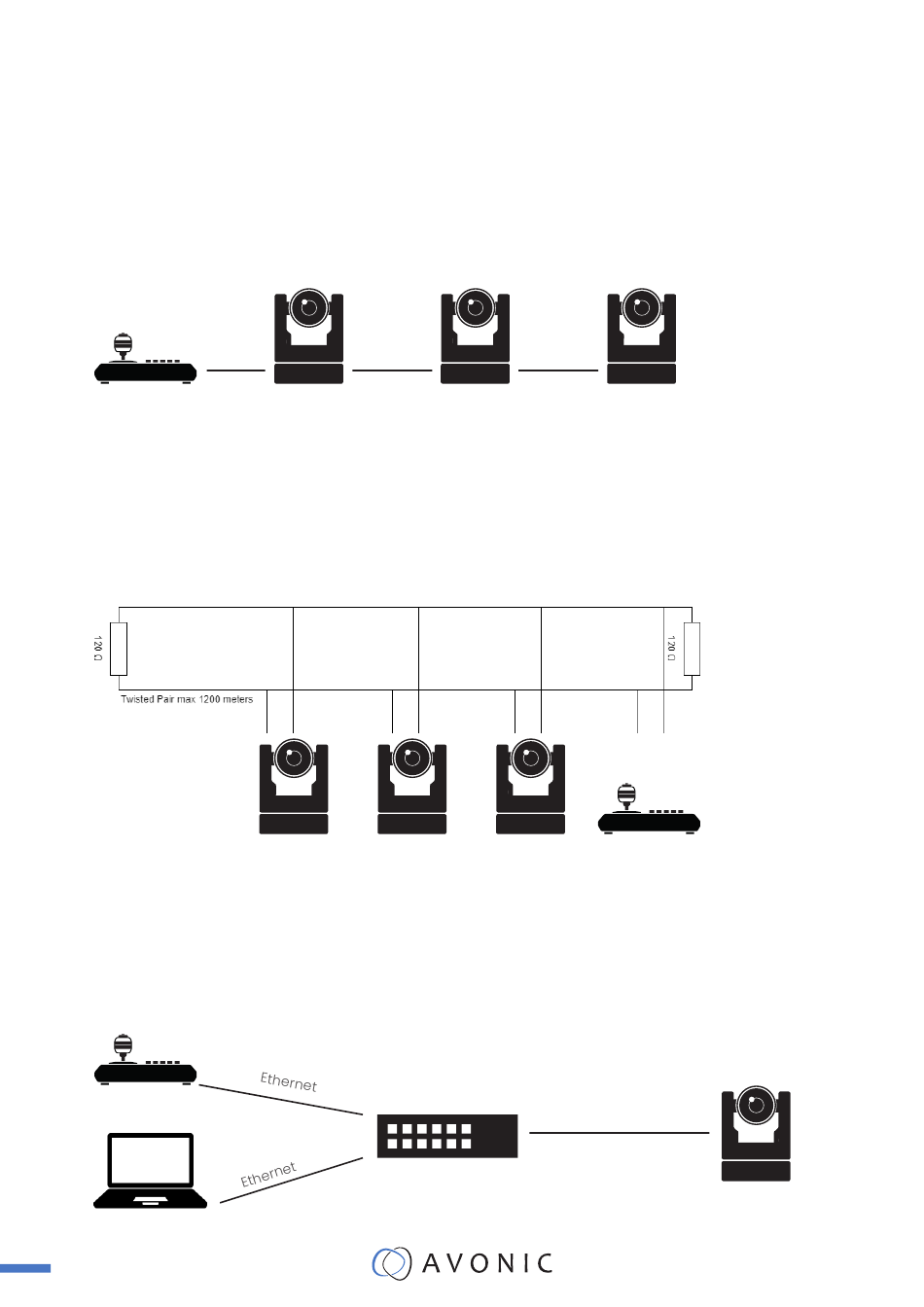

RS232 network connection diagram

When connecting multiple cameras through RS-232, use daisy chaining network architecture . Max cable
length for RS-232 is 10-15m .
RS-232
Controller

RS485 network connection diagram

To connect multiple cameras by RS485, the cameras are attached to a 2-wire twisted pair bus (max length
1200m) that is terminated at both ends with a 120 Ω impedance resistor . The maximum distance from the bus to
the camera or controller is 5m .

IP network connection diagram

Connect an Avonic PoE camera to a LAN using a standard (PoE) switch, if the unit is simultaneously connected
to both PoE and its own power supply, the power supply will take priority . If the power supply is disconnected
when PoE is present, the camera will remain operational without interruption .
Addressing is done via IP, the Visca address in a Visca over ip environment is always 1 .
IP controller
PC
www . a vonic . e u
In Out In
RS-232
Camera Camera
(PoE) Switch
Out In Out
RS-232
Camera
Ethernet
Camera
