LAUFEN
IlBagnoalessI one

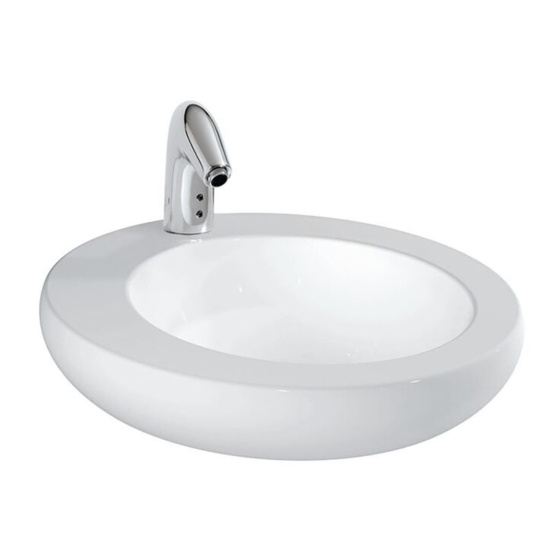

Drop In BasIn 500
80-120
Set out may differ based on trap used.
speCIFICaTIon
Fixing requirements
Integral overflow
Tap hole availability
plug & waste
Water storage
Colour availability
FeaTUres
recommended use
Weight
Finish
CleanIng reCommenDaTIons
Soapy water or approved bathroom cleaners. This bathroom
product should not be cleaned with abrasive materials. Damage
caused by any improper treatment is not covered by the product
warranty. Refer to Warranty Conditions on the last page.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered
trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from
their range without prior notification. Dimensions and set-outs listed are correct at time of publication
however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
Refer to diagram
Yes
0 or 1 taphole
Suits Clik Clak ceramic waste
5.5 litres
White
Domestic, hotel or commercial
10.6kg
LAUFEN Clean Coat
500
To see the complete LAUFEN range go to
www.reece.com.au/bathrooms
page 1 of 4
Advertisement
Table of Contents
Related Manuals for Reece Laufen ILBAGNOALESSI One Drop In Basin 500
Summary of Contents for Reece Laufen ILBAGNOALESSI One Drop In Basin 500
- Page 1 10.6kg To see the complete LAUFEN range go to Finish LAUFEN Clean Coat www.reece.com.au/bathrooms CleanIng reCommenDaTIons Soapy water or approved bathroom cleaners. This bathroom product should not be cleaned with abrasive materials. Damage caused by any improper treatment is not covered by the product warranty.
- Page 2 Szerelési útmutató • • page 2 of 4 page 2 of 4 LAUFEN 0.2. IlBagnoalessI one 5 cm Drop In BasIn 500 (2") 28 cm (11") 50 cm Art. Nr. 1397.1 InsTallaTIon (19-5/8") Montageanleitung • Instructions pour le montage • Istruzioni di montaggio • Mounting instructions Fix the template Art.
- Page 3 page 3 of 4 page 3 of 4 LAUFEN Art. Nr. 1397.1 IlBagnoalessI one Drop In BasIn 500 Pflegeanleitung für den Benutzer • Instructions d’entretien • Istruzioni per la pulizia Cleaning instructions for the user • Instrucciones de la limpieza para el usario • Onderhoudshandleiding voor de ge- bruiker •...
- Page 4 • Unsuitable or improper use You have purchased a quality product from Reece Pty Ltd ABN 84 004 097 090 (“Reece”). This product is covered by • Incorrect installation or installation not in accordance with a 15 year replacement product warranty and a 12 month the instructions provided warranty over spare parts and labour.
