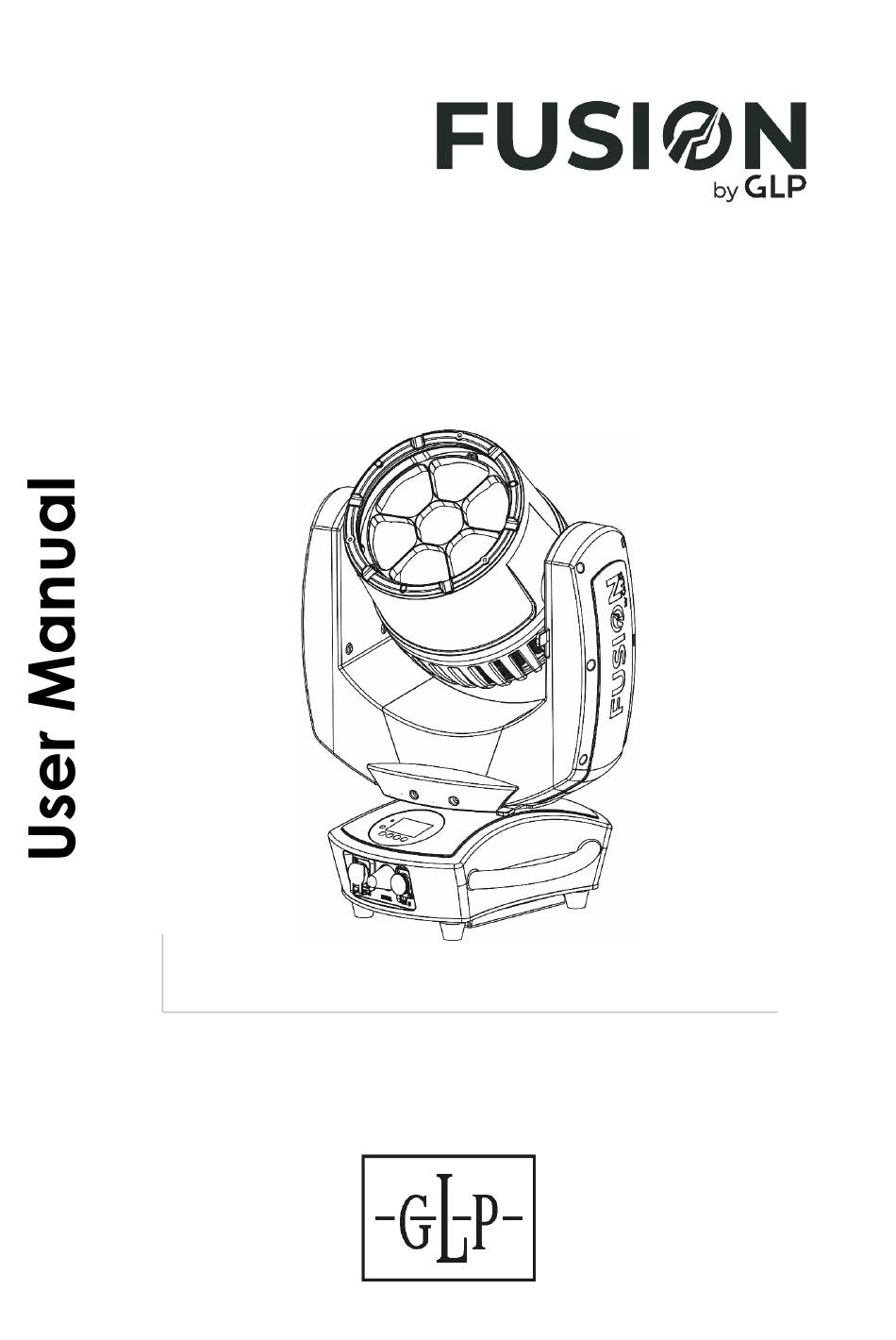

  • Page 1 Fusion EXO Wash 30 Software version V1.0.00...
  • Page 2 This document covers fixture software version V1.0.00 © 2019 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.

  • Page 3: Table Of Contents

    Avoiding damage from water and humidity ........11 Avoiding damage from dust and airborne particles ..... 12 Transportation and storage ............... 12 GLP Service and Support ..............12 EXO Wash 30 overview ................13 Installation ....................15 Permitted mounting options ............. 15 Securing fixtures with a safety cable ..........
  • Page 4 DMX Mode 1: Compact ..............33 DMX Mode 2: Standard ..............35 DMX Mode 3: Extended ..............39 13. Service ...................... 48 Cleaning ....................48 GLP Service and Support ..............48 14. Technical specifications ................. 49 Optics ....................49 Control ....................49 Installation ................... 49 Electrical ....................

  • Page 5: Safety

    German Light Products® Safety 1. Safety Key to symbols The following symbols are used in the Fusion EXO Wash 30 lighting fixture’s user documentation: Warning! Safety hazard. Warning! Hazardous voltage. Risk of severe injury or Risk of lethal or severe death.

  • Page 6: Electrical Safety

    ● Check the GLP website at www.glp.de and make sure that you have the latest version of this manual. Check the fixture software version indicated on page 2 of this manual and then use the fixture’s control panel to check the version installed in the...

  • Page 7: Fire Safety And Protection From Burns

    - US power cable: 16 A, 14 AWG, UL-listed, E304117, SJT, 4.9 ft. - EU power cable: 16 A, 1.5 mm², H07RN-F, 1.5 m. Do not connect more than four (4) Fusion EXO Wash 30 fixtures to power in a chain at 100-120 V, 60 Hz.

  • Page 8: Eye Safety

    Safety ignite objects that are in contact with the surface. Ensure that the front surface Is clean and unobstructed at all times in order to prevent a fire hazard and damage to the fixture. ● The fixture’s optical components can focus the sun’s rays, creating a risk of fire and damage.

  • Page 9: Installation Safety And Protection From Personal Injury

    Do not attempt to use a fixture that is obviously damaged. ● Do not modify the fixture in any way not described in its user documentation. ● Install genuine GLP parts only. EXO Wash 30 User Manual Rev. B...

  • Page 10: Avoiding Damage To The Fixture

    Avoiding damage to the fixture 2. Avoiding damage to the fixture Important! Follow the directions in this section carefully, or the fixture may suffer damage that is not covered by the product warranty. General precautions Do not drop the fixture or expose it to mechanical stress.

  • Page 11: Ip Rating

    German Light Products® Avoiding damage to the fixture IP rating EXO Wash 30 fixtures are IP65-rated: ● IP stands for Ingress (entry into the fixture) Protection. ● The first figure 6 in the rating means that fixtures are protected against the entry of dust and airborne particles.

  • Page 12: Avoiding Damage From Dust And Airborne Particles

    ● Store the fixture in a dry location when not in use. GLP Service and Support Contact information for the nearest GLP Service and Support is available online at www.glp.de/en/service, by email at info@glp.de, or by telephone at the following numbers: ●...

  • Page 13: Exo Wash 30 Overview

    EXO Wash 30 overview 3. EXO Wash 30 overview The Fusion EXO Wash 30 from GLP is a powerful LED-based wash light fixture with fast pan and tilt, 4 to 54 degree variable zoom and seven independently controllable RGBW zones.
  • Page 14 EXO Wash 30 overview Figure 2. EXO Wash 30 overview 1 – Output lens 8 – Wireless indicator 9 – Battery button 2 – Head 10 – PowerCON TRUE1 input 3 – Tilt lock 4 – Yoke 11 – Mode / Esc button 12 –...

  • Page 15: Installation

    German Light Products® Installation 4. Installation Warning! Read ‘Safety’ starting on page 5 for important safety information that you must understand before you install or operate the fixture. Install EXO Wash 30 fixtures only as described in this chapter, or you may create an installation that is unsafe.

  • Page 16: Installing On A Rigging Truss Or Similar Structure

    Installation To secure an EXO Wash 30 fixture with a safety cable: Figure 3. Safety cable attachment Loop a safety cable around a secure anchoring point such as a truss beam or fixed structure so that it will catch the fixture if a rigging clamp fails.

  • Page 17: Standing On A Horizontal Surface

    German Light Products® Installation Figure 4. Omega bracket fasteners Attach suitable clamps to the Omega brackets. Line up the fasteners of the Omega bracket with the holes “A” in the base of the EXO Wash 30 as shown in Figure 4. The brackets may be installed either way round so the cabling is in line with the bar or at right angles to it.

  • Page 18: Ac Mains Power

    AC mains power 5. AC mains power Warning! Read ‘Safety’ starting on page 5 for important safety information that you must understand before you install or operate the fixture. Check that all cables and connectors are suitable for the installation environment and application (see recommendations in ‘Avoiding damage...

  • Page 19: Installing Power Connectors

    German Light Products® AC mains power Installing power connectors If you intend to draw power from convenience receptacles / consumer mains power sockets, it is possible to install a suitable cord cap / power plug on the supplied power cord / input cable. If you do this, check that the cord cap / plug is rated minimum 250 V, 16 A, that it has a connection to ground / earth and that it has an integral cable grip.

  • Page 20: Connecting To Dmx Data

    DMX input and DMX link out connectors. If you need to split the DMX cable, use a powered DMX splitter. If you would like advice with planning and installing a DMX link, your GLP supplier will be happy to provide assistance.

  • Page 21: Starting And Stopping Operation

    German Light Products® Starting and stopping operation 7. Starting and stopping operation Warning! Before you apply power to the fixture or operate it after a blackout, make sure that nobody is looking directly into the front of the fixture. The EXO Wash 30’s TRUE1 mains power input connector supports hot-plugging, and connecting and disconnecting a live power cable is an option, especially if you need to shut down power urgently, but it is still good practice to shut down power to the AC mains power circuit before connecting and disconnecting power cables.

  • Page 22: Features

    Features 8. Features The EXO Wash 30 unit has the following features: Position Pan rotation 630°(3.9 sec) or 540°(4.3 sec),Tilt rotation 267°(2.2 sec) with 16 bit resolution. The fixture will automatically reposition if knocked – this option can be disabled from the menu.

  • Page 23: Dimming

    German Light Products® Features Dimming See Figure 6. You can select from two dimming curves using the control panel or the Control / Settings DMX channel: Figure 6. Dimming curves ● Linear sets dimming so that it appears to increase and decrease evenly throughout the dimming range.

  • Page 24: Control Menus And Onboard Display

    Control menus and onboard display Control menus and onboard display Warning! DMX control is disabled when the control menus are active. Be prepared for the fixture to emit strong light as soon as you exit the control menus. The control panel and onboard LCD display provide access to user settings, readouts and utilities.

  • Page 25: Display Options

    German Light Products® Control menus and onboard display DMX control is disabled when the control menus are active. Display options The illuminated LCD display lets you change fixture settings. The display has a battery backup so that you can change the settings before mains is connected to the fixture. See Chapter 9 for more details.

  • Page 26: Pan Disable / Tilt Disable

    Control menus and onboard display Pan disable / Tilt disable These options allow you to disable the startup reset movements or disable the drive of the pan and/or tilt motors. The options are - Off: Normal motor control - Reset Disabled: The fixture will not do its power on reset sequence on this motor but the motor is still controlled.

  • Page 27: Control Menu Layout

    German Light Products® Control menu layout 10. Control menu layout Menus Notes 1 - 512 Enter DMX address ADDRESS Compressed – 13 channels CONTROL Standard – 22 channels Select DMX control mode MODE Extended – 37 channels Pixel – 50 channels Wired DMX control CONTROL Wireless DMX control...
  • Page 28 Control menu layout Red 0-255 Green 0-255 Blue 0-255 White 0-255 Zoom 0-255 Control 0-255 Press ENTER for 3 sec to Capture Scene capture incoming DMX state Firmware Version ver x.x Fixture firmware version Show fixture serial, RDM Fixture Details Serial …...

  • Page 29: Service Advanced Menu

    German Light Products® Control menu layout Service Advanced menu Hold down Enter for 6 seconds to access this menu. Menus Notes Pan Disable Off/On Tilt Disable Off/On Units °C / °F Tilt Offsets Zoom Power Hours Power Cycles Reset LED Hours Counter Max Temperature Temperature Unit...

  • Page 30: Dmx Control Modes Overview

    DMX control modes overview 11. DMX control modes overview The following DMX control modes are available in the EXO Wash 30. Mode 1 DMX Mode 1: Compact Compact Compact Mode uses 13 DMX channels. Pan fine It provides 16-bit control of pan and tilt,...
  • Page 31 German Light Products® DMX control modes overview Mode 3 DMX Mode 3: Extended Extended Extended Mode uses 37 DMX channels. It provides 16-bit control of pan and tilt, Pan fine 16-bit control of dimming and a shutter Tilt Tilt fine with strobe and ramp up/down effects.
  • Page 32 DMX control modes overview Mode 4 DMX Mode 4: Pix Pix Mode uses 50 DMX channels. It provides 16-bit control of pan and tilt, Pan fine 16-bit control of dimming and a shutter Tilt Tilt fine with strobe and ramp up/down effects.

  • Page 33: Dmx Control Channel Layout Tables

    German Light Products® DMX MODE 1 12. DMX control channel layout tables DMX Mode 1: Compact 11 DMX Channels Default Channel Command range Percent Fade Pan left–right 65535 32767 Fade Pan fine Tilt Tilt up–down 65535 32767 Fade Tilt fine Dimmer Intensity 0–100% Fade...
  • Page 34 DMX MODE 1 No function Dimmer curve: Extra-soft (3s hold) Dimmer curve: Linear (3s hold) Display mode: Auto (3s hold) 10.6 Display mode: On (3s hold) 11.0 12.9 Display mode: Off (3s hold) 13.3 15.3 Display orientation: Normal (3s hold) 15.7...

  • Page 35: Dmx Mode 2: Standard

    German Light Products® DMX MODE 2 DMX Mode 2: Standard 22 DMX Channels Defaul Channel Command range Percent t DMX Fade Pan left–right 65535 32767 Fade Pan fine Tilt Tilt up–down 65535 32767 Fade Tilt fine Dimmer Intensity 0–100% 65535 32767 Fade Dimmer fine...
  • Page 36 DMX MODE 2 8600 22.7 23.5 8500 23.9 24.7 8400 25.1 25.9 8300 26.3 27.1 8200 27.5 28.2 8100 28.6 29.4 8000 29.8 30.6 7900 31.0 31.8 7800 32.2 32.9 7700 33.3 34.1 7600 34.5 35.3 7500 35.7 36.5 7400 36.9...
  • Page 37 German Light Products® DMX MODE 2 2800 91.0 91.8 2700 92.2 92.9 2600 93.3 94.1 2500 94.5 10 Red Red intensity 0–100% 65535 32767 Fade 11 Red fine 12 Green Green intensity 0–100% 65535 32767 Fade 13 Green fine 14 Blue Blue intensity 0–100% 65535 32767...
  • Page 38 DMX MODE 2 No function 88.6 90.6 Return to default settings 91.0 92.9 Reset Pan/Tilt (3s hold) 93.3 95.3 Reset Head (3s hold) 95.7 97.6 Reset All (3s hold) 98.0 EXO Wash User Manual Rev. B...

  • Page 39: Dmx Mode 3: Extended

    German Light Products® DMX control channel layout tables DMX Mode 3: Extended 37 DMX Channels Default Channel Command range Percent Fade Pan left–right 65535 32767 Fade Pan fine Tilt Tilt up–down 65535 32767 Fade Tilt fine Dimmer Intensity 0–100% 65535 32767 Fade Dimmer fine...
  • Page 40 DMX control channel layout tables 8300 26.3 27.1 8200 27.5 28.2 8100 28.6 29.4 8000 29.8 30.6 7900 31.0 31.8 7800 32.2 32.9 7700 33.3 34.1 7600 34.5 35.3 7500 35.7 36.5 7400 36.9 37.6 7300 38.0 38.8 7200 39.2...
  • Page 41 German Light Products® DMX control channel layout tables 12 Green Green intensity 0–100% 65535 32767 Fade 13 Green fine 14 Blue Blue intensity 0–100% 65535 32767 Fade 15 Blue fine 16 White White intensity 0–100% 65535 32767 Fade 17 White fine 18 Layer 1 DImmer Layer 1 (background) 65535...
  • Page 42 DMX control channel layout tables Layer 2 Pattern Green fine Layer 2 Pattern Blue Layer 2 (top layer) pattern 65535 32767 Fade Layer 2 Pattern blue intensity 0–100% Blue fine Layer 2 Pattern White Layer 2 (top layer) pattern...
  • Page 43 German Light Products® DMX control channel layout tables Reset Head (3s hold) 95.7 97.6 Reset All (3s hold) 98.0 EXO Wash 30 User Manual Rev. B...
  • Page 44 DMX control channel layout tables DMX Mode 4: Pix 50 DMX Channels Default Channel Command range Percent Fade Pan left–right 65535 32767 Fade Pan fine Tilt Tilt up–down 65535 32767 Fade Tilt fine Dimmer Intensity 0–100% 65535 32767 Fade...
  • Page 45 German Light Products® DMX control channel layout tables 8300 26.3 27.1 8200 27.5 28.2 8100 28.6 29.4 8000 29.8 30.6 7900 31.0 31.8 7800 32.2 32.9 7700 33.3 34.1 7600 34.5 35.3 7500 35.7 36.5 7400 36.9 37.6 7300 38.0 38.8 7200 39.2...
  • Page 46 DMX control channel layout tables 12 Green Green intensity 0–100% 65535 32767 Fade 13 Green fine 14 Blue Blue intensity 0–100% 65535 32767 Fade 15 Blue fine 16 White White intensity 0–100% 65535 32767 Fade 17 White fine Static pattern 20.0...
  • Page 47 German Light Products® DMX control channel layout tables 26 Pixel 1 White Intensity 0-100% Fade 27 Pixel 2 Red Intensity 0-100% Fade 28 Pixel 2 Green Intensity 0-100% Fade 29 Pixel 2 Blue Intensity 0-100% Fade 30 Pixel 2 White Intensity 0-100% Fade Pixel 3 Red...

  • Page 48: Service

    Use the tilt lock mechanism to hold the head in a vertical position for easier cleaning. GLP Service and Support Contact information for the nearest GLP Service and Support is available online at www.glp.de/en/service, by email at info@glp.de, or by telephone at the following numbers: ●...

  • Page 49: Technical Specifications

    German Light Products® Technical specifications 14. Technical specifications Optics Light source: 7x 40W Osram RGBW LEDs Lifetime: 20 000 hrs. approx. to > 70% luminous output Luminous flux: 40995 lux @ 3 m, 14758 lux @ 5 m Beam angle (half peak): 4° to 54° Control Control systems: DMX, RDM, Manual setting DMX channel footprint: 13 / 22 / 37 / 50 depending on mode...

  • Page 50: Included Items

    Technical specifications Included items Power cable with Neutrik powerCON TRUE1 mains input plug Dimensions and weight Length: 279mm / 11.0 ins. Width: 380 mm / 15.0 ins. Height: 521 mm / 20.5 ins. Weight: 19.7 kg (43.4 lbs.) EXO Wash User Manual Rev. B...

  • Page 51: Dimensions

    German Light Products® Dimensions 15. Dimensions All dimensions are in millimeters EXO Wash 30 User Manual Rev. B...
