GLP Creative Light 1 Introduction & Product Information, Technical Data

Introduction & Product Information

Technical Data

Rev. 20210331-1
Creative Light 1
This quick start guide gives the most important applications and options for the GLP
Creative Light 1 lighting fi xture. For full information and technical details look up the
user manual PDF available for download on our website www.glp.de.

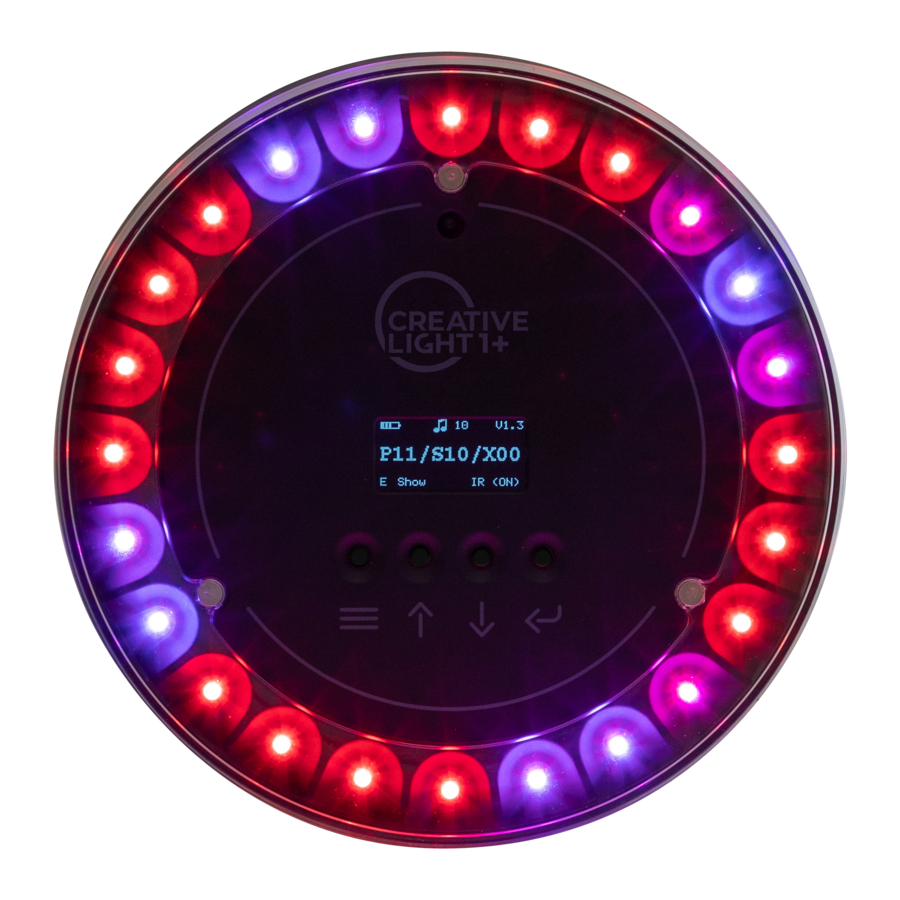

The GLP Creative Light 1 is a wireless, battery-powered visual effect for semi-professional
events and professional entertainment applications. Each device houses 24 individually
controllable RGB pixels. Two different optical front screens are already included as well as
a USB-A to USB-C charging cable. The Creative Light 1 can be charged using any standard
USB charging unit. A traveling charging tourpack case is available as an accessory.
Before operating this unit read the manual carefully. Always make sure to
!
include the manual when passing / renting / selling the unit to another user.
Bear in mind that this manual cannot address all possible dangers and
applications. Use your own caution when operating. This product is for
professional use only. It is not for household use.

Included items

1x GLP Creative Light 1 1x GLP Creative Light 1 Quick Start Guide
1x GLP Creative Light 1 Front 1x GLP Creative Light Remote Control
Screen white 1x USB-A to SB-C Charging Cable (1 m)
1x GLP Creative Light 1 Front 1x M6 Eyebolt
Screen clear

Product Overview

Sensor for
IR remote
Monochrome
OLED Display
4-button
navigation
Magnetic holders
for interchangeable
Front Screen
3x4 Pattern color presets
Effect speed adjustment
Color changing style:
01: Snap between colors
02: Stop at current color
03: Fade between colors

Changing Front Screens

The Creative Light 1 is supplied with two front screens, a
clear screen and a white diffuser. The front screens attach
to the device magnetically. To change screens, simply pull
the installed screen off the fi xture and replace it with the
other screen.
For further detailed information look up the user manual PDF
available for download on our website www.glp.de
Magnet with Kensington Lock
non-slip rubber
1x USB-C socket 3x M6 Screw threads
2x Charging ports for installation
or safety attachment
4x4 Pattern presets:
01: All on
02– 07: Black/White Effect Pattern
08 – 15: Dual-Color Effect Pattern
Brightness adjustment
Color chaser effects:
01: Color Chaser Rainbow
02: Color Chaser Extended Color
03: Color Chaser Extended Color Random
04: Color Chaser Rainbow Music Trigger
Blackout
The Creative Light 1 creates stunning light effects using its integrated dynamic pattern
sequences controlled by manual control or the GLP Creative Light App based on GLP
iQ.Mesh technology.
The fi xture is perfect for providing creative visual highlights, illuminating walls or as set
integration in dark areas to create outstanding visual effects with a minimum of equip-
ment size and on a small budget.
The device contains a single-cell 10,000 mAh lithium ion battery. Respect all safety
precautions and regulations for this battery type. Pay particular attention to the
special shipping and transport conditions required for lithium ion batteries.
For complete safety and user information for this product visit our website www.glp.de.

Installation

The Creative Light 1 can be used in any orientation in dry
locations.
Temporary installation: The device can be attached to
any magnetic surface. The magnet on the back is strong
enough to hold it in position, and the non-slip rubber
around the magnet avoids sliding.
Safety attachment: Use of a secondary attachment
for safety purposes is recommended. To attach a safety
cable, fasten the included M6 eyebolt into an M6 thread
on the back of the fi xture. Follow the safety regulations
of your region when using the product overhead.
Fixed installation: On surfaces or rigging trusses, use
the two integrated M6 screw threads or the 2 integrated
eyelet holes for fasteners. Follow the safety regulations
of your region when using the product overhead.
GLP offers an optional installation item for a wide range of applications. GLP offers an optional installation item for a wide range of applications.
2x Eyelets
Ask for the GLP Universal Fixing Unit (UFO1) (Art-No.: 87089). Ask for the GLP Universal Fixing Unit (UFO1) (Art-No.: 87089).
Technical Data Creative Light 1
Light source type
LED Lifetime
LED refresh rate
Power input
Max. power
Battery type
Temperature range
Thermal protection
Cooling type
Orientation
Location
Control options
Power modes
Display (GUI)
Construction features
24 x 300 mW RGB LEDs
50,000 hours (to L > 70 %)
19 kHz
5 V DC
10 W (@ 5 V DC)
Lithium Ion / 10,000 mAh / 3.7 V
0 °C / 32 °F to 45° C / 115°F
Automatic overtemperature protection
Convection
Any
Dry location only
Integrated GUI, IR Remote Control, GLP iQ.Mesh with GLP
Creative Light App
High, Normal, Eco
Monochrome OLED display
Strong magnet with non-slip rubber, rubber feet, interchange-
able front screens with magnetic attachment, IR Sensor for
remote control, integrated microphone, Kensington Lock
