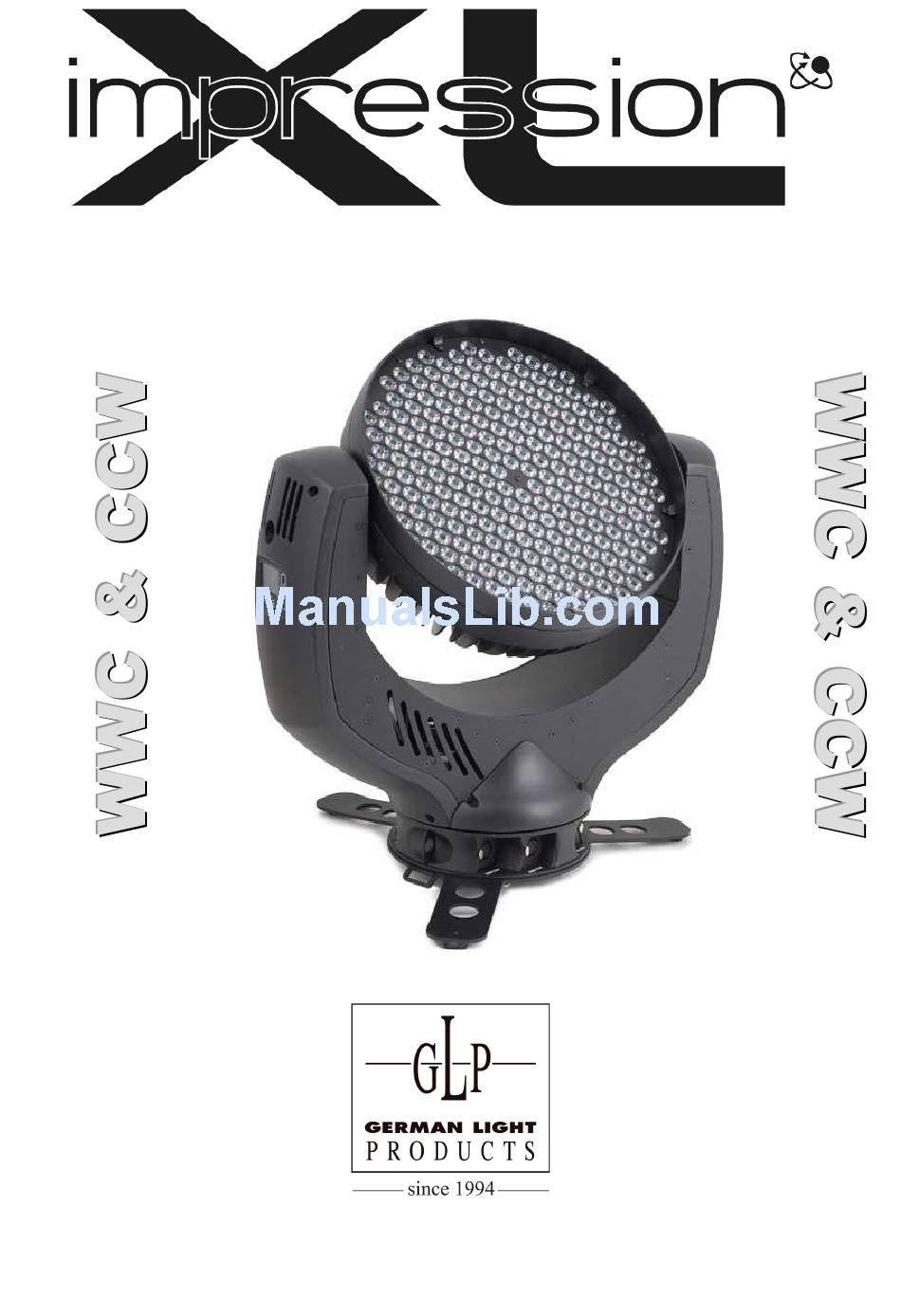

- Page 1 Instruction Manual from software version 1.01/30 (Instruction version 1.03) e-mail: service@glp.de Internet: http://www.glp.de...
- Page 2 & & & Preface This manual serves for both systems the C as well as the . The two systems differ from each other only by the number of cold- respectively warm- white LEDs. WWC version: 84x LEDs cold white, 156x LEDs warm white CCW version: 156x LEDs cold white, 84x LEDs warm white Notes: German Light Products GmbH...
-
Page 3: Table Of Contents
& & & Table of content Description of Device....................4 1.1 Safety Instructions .................... 5 Preparation and Installation ................... 6 2.1 Mounting ......................6 2.1.1 Mounting on the floor (upright) ............. 7 2.1.2 Mounting in hanging position (Head down) .......... 8 2.1.3 Mounting in sideway position ............... -
Page 4: Description Of Device
& & & 1 Description of Device 1. Moving head (actively and passively cooled) 2. Arm with various cooling vents 3. Tilt-Lock to secure head against unmeant movements see also 1.1 4. LCD-Display/Menu (data entry) 5. Base with various connectors and Camlock mounting system Eyelets for safety cable... -
Page 5: Safety Instructions
& & & Safety Instructions L is an advanced technology product. To guarantee smooth operation, it is necessary to follow the following instructions. The manufacturer of this device will not take responsibility of damages through any disregard of the information in this user manual. -
Page 6: Preparation And Installation
10. Repair-, maintenance- and installation work should only be performed by qualified or GLP certified staff. You need to pay attention to the common rules of technology that are not explicit mentioned in this manual. 11. Use only original spare parts. Any structural modification on the system will terminate all warranty claims. -
Page 7: Mounting On The Floor (Upright)
& & & For the various mounting positions of the L (standing on the floor, sideways or hanging) different accessories kits are available. Using any required kits, along with the standard mounting connectors on the base of the fixture, will ensure a safe and firm installation. 2.1.1 Mounting on the floor (upright) To operate the N XL in an upright position, please use the... -
Page 8: Mounting In Hanging Position (Head Down)
To operate the L in a sideways position, please use an additional mounting bar, available from GLP or one of their agents.. This mounting bar is fixed via the four camlock quick-release connectors. Two half-couplers or clamps are then used to hang the mounting bar. This technique is necessary to cope with the additional torque in this mounting position. -
Page 9: Securing The Device
& & & Without mounting bar 2.2 Securing the Device Regardless of the mounting method of the L you'll have to use a secondary safety wire. This safety wire can be attached to the fixture by threading it through one of the two holes provided on the base of the fixture. Ensure that the safety wire is securely fastened through the fixture and the fixtures mounting support. -
Page 10: The Menu Field
& & & The Menu Field You’ll find the control board on the side of the arm. It allows you to make all necessary adjustments of the . With the Mode-key you get into the main menu. Afterwards you can navigate through the menu with the Up/Down-keys. - Page 11 & & & Dimmerwert Internal data and function diagnosis für DIM1 Dimmerwert Internal data and function diagnosis für DIM2 Dimmerwert Internal data and function diagnosis für DIM3 Shows the present PFC voltage Voltage Pos Feed Internal data and function diagnosis Tilt Delta Temperature Indicates the arm temperature...
-
Page 12: Dmx Channel Selection (Dmx Protocol)
& & & Reverse Tilt SelectsInverse Tilt on or off Reset RESET all functions 4 DMX Channel Selection (DMX Protocol) Normal-Mode 11 DMX channels Channel Function Time and Value 1) PAN- 0 .. 660° min. 3,2 sec. 0..255 00..FF 0..100 coarse 2) PAN-fine High- Pos ... - Page 13 & & & Channel Function Time and Value PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50 Circle size / phase see also PAN 128..159 80..9F 51..62 Circle (inverse) size / phase see also PAN 160..191 A0..BF 63..75 Lying eight...
- Page 14 & & & Channel Function Time and Value 5) White 2/3 White Color, 156x LEDs (either warm- 0 - 100% 0..255 00..FF 0..100 coarse or cold white depending on the system) 6) White 2/3 White - fine/low 0..255 00..FF 0..100 fine 7) White 1/3 White Color, 84x LEDs (either warm-...
-
Page 15: Maintaining And Cleaning The I M P R E S S I O N X L
& & & Additional Display Indications As a default you'll find the following additional information in the first row of the LCD display: XX/X/XX 06 = 600Hz / 12 = 1200Hz N = Normal Mode / C = Compressed Mode / H = High Res. Mode N = Tilt normal / I = Tilt inverted N = Pan normal / I = Pan inverted 5 Maintaining and Cleaning the... -
Page 16: Technical Specifications
& & & Attention: • Never let optical parts come into contact with oil or fat. • Before running the fixture wait until all parts are touch dry. • Never touch lenses with bare fingers. 6 Technical Specifications Power supply Power consumption 1200 VA (Watt) Power Input... -
Page 17: Index
& & & 7 Index Mounting in sidewise Position ......8 Mounting on the Floor ........7 BGV C1............6 Normal-Mode ..........12 CCW version ..........2 Circumference ..........15 Cleaning............15 Optical parts ..........16 Cold white LEDs ..........2 Compress-Mode .......... - Page 18 & & & German Light Products GmbH (Instruction version 1.03) / from software version 1.01/30...
