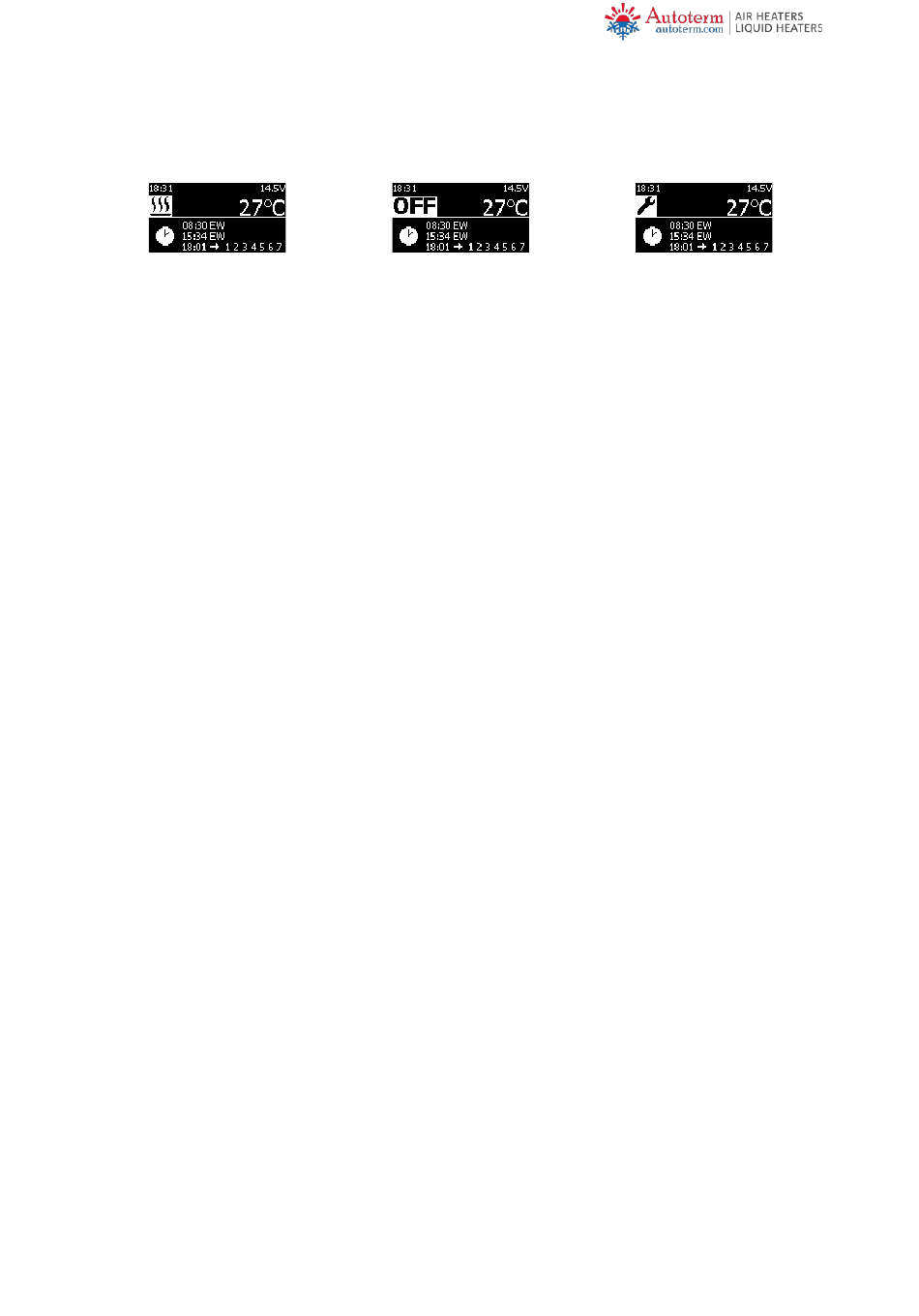

When an operation mode is active, respective symbol is displayed on the main screen (under
the current time) and it works as a quick menu. By rotating the knob three options can be
accessed:
• Active operation mode
settings
Confirm selection by pressing the knob.
1.2.

ROTARY KNOB

The rotary knob is the main button for navigation through the interface.
• When control panel is active pressing the knob enters the main menu. After that
pressing the knob confirms selected item or setting.
• Turning right selects next item or increases value of selected setting.
•
Turning left selects previous item or decreases value of selected setting.
1.3.

BACK BUTTON

Back button is used to return to the previous screen by pressing it once.
1.4.

QUICK BUTTON

Quick button can be used to start or stop the heater without entering the main menu or
quickly enabling or disabling timers.
• While heater is off, pressing the button once opens the "Heating" menu.
• While the heater is off, long-pressing the button for 2 seconds starts the heater with
previous settings (Display message: "Starting...").
• While the heater is operating, long-pressing the button for 2 seconds switches off the
heater (Display message: "Switching off...").
• While the heater is operating, pressing the button once opens the settings of the
active operation mode.
•
In the menu "Timers" pressing the button once enables/disables the selected timer
(for this action timer has to be set beforehand).
1.5.

LED INDICATORS

LED indicators are used to indicate the operating mode or status of the heater:
•
RED – heater is working in heating mode;
•
BLUE – heater is working in ventilation mode;
•
GREEN – heater is switching off (purge mode);
•
RED (blinking combined with display message) – an error has occurred.
•
LIGHT GREEN (one blink every 5 seconds) – a timer has been enabled.
• Shut off the heater • Access the main menu
