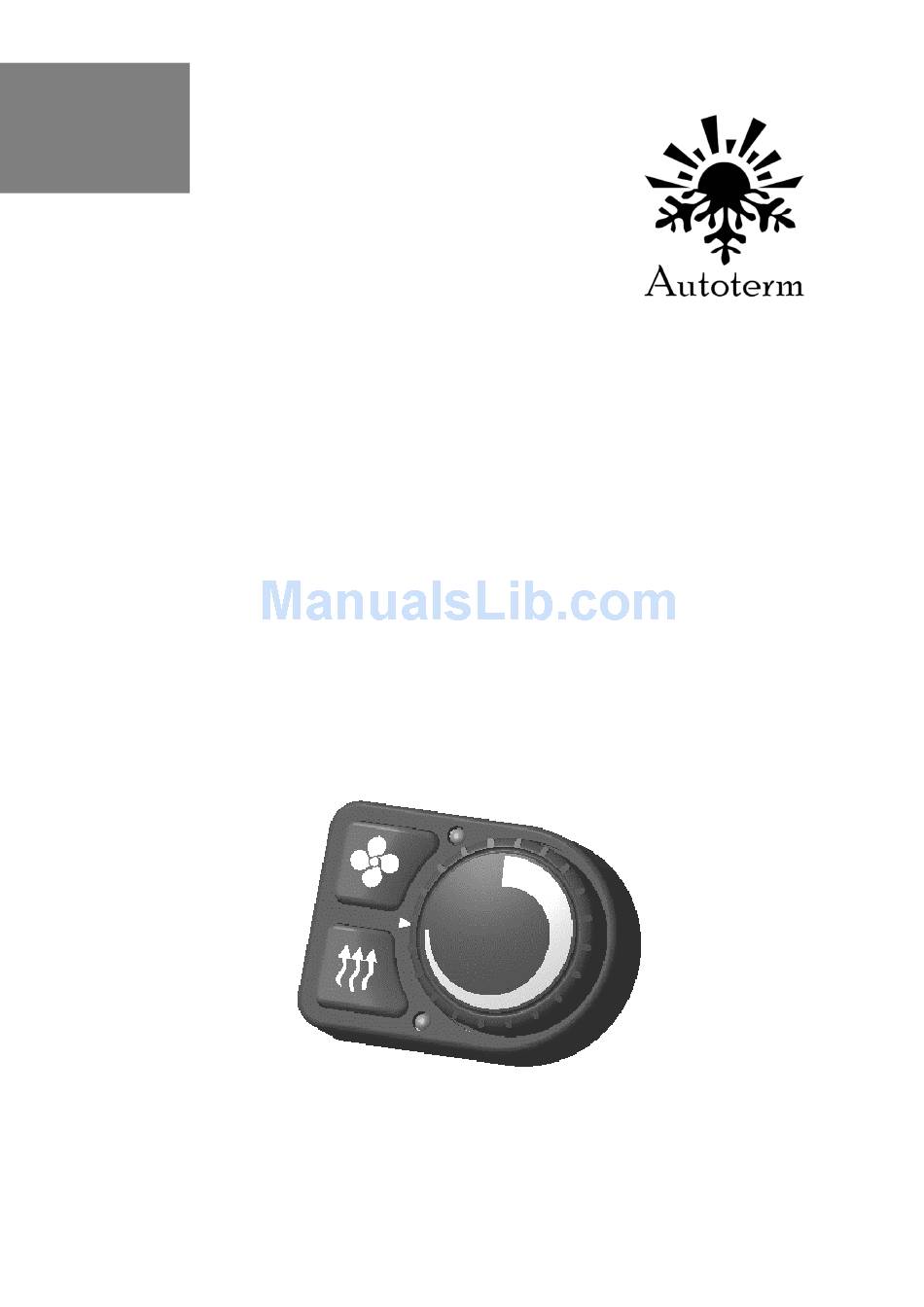

- Page 1 PU-5 control panel air heaters for PLANAR Operating manual Ver.1.0.0.1...
-
Page 2: Warranty And Liability

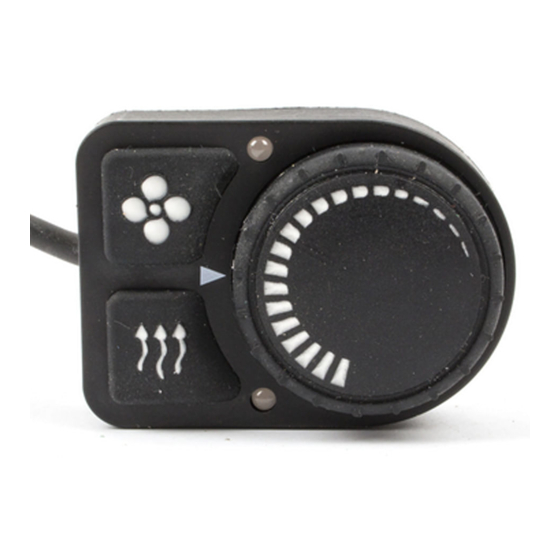

If you have any concerns, we strongly recommend that you contact the authorized service centers, the addresses and phone numbers of which you can obtain from the seller or on the website www.autoterm-europe.com Before operating the product, read this operating manual and the heater operating manual. - Page 3 PU-5 control panel The following are located on the front of the panel: 1 – Ventilation mode on/off button; 2 – Heater on/off button; 3 – Operation LED display; 4 – Ventilation mode LED display; 5 – Potentiometer knob. The LED in Pos. 3 indicates the heater status: - yellow light - heating mode;...
- Page 4 Installation of the control panel - Apply a marking (see. Fig.1) on a surface for installation of the control panel (a hole for a harness and a hole for the self-tapping screw). - Pull and dismantle the potentiometer knob. Before dismantling the potentiometer's knob remember orientation of the knob relative to the mark on the control panel.
- Page 5 Features of operating modes In case of “power” control mode is selected, the heater operates continuously with selected heat output. When a comfortable temperature is reached, we recommend to reduce power, ventilate the space or to switch off the heater. ...
- Page 6 Control operation diagramm...
- Page 7 Malfunctions Malfunctions occurring during heater operation are coded and automatically displayed on the control panel by blinking of the red LED in pos. 4 (with pause). For malfunction reset, press any key. ATTENTION! Maintenance and repair should only be performed by trained, qualified personnel! The user can correct the following malfunctions (Table 1).
- Page 8 Number Comments Malfunction description of blinks Troubleshooting Check the battery, the voltage regulator and power supply Shutdown due to wiring. Voltage between contacts 1 and 2 of power overvoltage connector should not be higher than 30 V (not higher than 16 V for 12 V product).
- Page 9 Flame detector temperature exceeds the normal value * - only for PLANAR-8DM type air heaters Autoterm LLC Trikatas street 4, Riga, LV-1026, Latvia +371 20110229 E-mail: sales@autoterm-europe.com Skype: autoterm-europe Technical support 24/7 +371 25529999 Е-Mail: service@autoterm-europe.com Skype: autoterm europe service...
