Summary of Contents for AUTOTERM PU-27
- Page 1 Operation manual Control panel PU-27 More information https://www.caravansplus.com.au...
-
Page 2: Table Of Contents
Contents 1 Introduction .......................... 3 2 Warranty and liability ......................4 3 Safety ............................ 4 4 Purpose ..........................5 5 Control panel external view ....................6 6 Starting control panel operation ................... 6 7 Main menu ..........................7 8 Timers settings menu ......................8 9 Fast access to startup timers activation menu .............. -
Page 3: Introduction
• Planar 8D • Planar 9D For detailed information on product models supported, please visit www.autoterm- europe.com. In case of any problems, we strongly recommend that you contact authorized service centers, the addresses and phone numbers of which you can obtain from the seller or on www.autoterm-europe.com... -
Page 4: Warranty And Liability
2 Warranty and liability The manufacturer will not be liable for defects and damage caused by failure to follow the product installation and maintenance instructions. • The control panel can only be used to control products from the list of compatible products. -
Page 5: Purpose
4 Purpose The control panel is designed for: • manual start and shutoff of the product; • manual start and shutoff of the pump (for the pre-heater); • manual start and shutoff of ventilation (for the heater); • fluid temperature display (for the pre-heater) •... -
Page 6: Control Panel External View

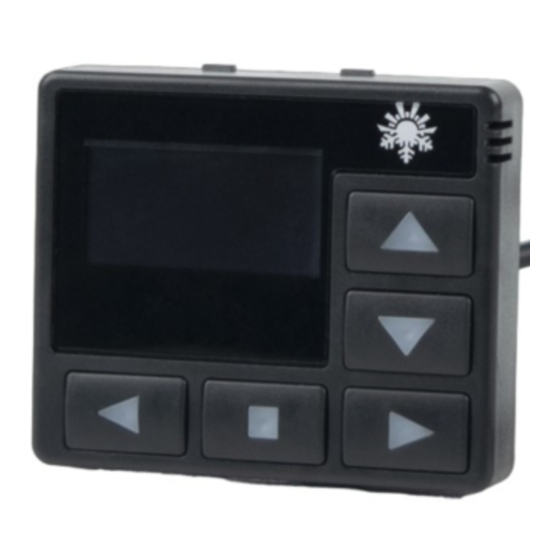

The control panel interface depends on the product it is connected to. 5 Control panel external view 1 – activated startup timer. 2 - power supply voltage. 3 – LED indicator. 4 – control keys. 6 Starting control panel operation After connecting the control panel to the product, the control panel software version and the process of establishing connection with the product will be displayed. -
Page 7: Main Menu
7 Main menu Switch to the main menu from the main screen by clicking the Action of main menu keys: Keys Action Navigation through the main menu Activation of selected menu item Exit from the main menu to the main screen Menu icon Description Startup timers menu. -
Page 8: Timers Settings Menu
8 Timers settings menu Action of the Timers menu keys: Keys Action Navigation through the menu items Change menu item value Exit from this menu to the main screen The control panel allows the startup timers to be programmed. For startup timer setting, the following data must be indicated: •... -
Page 9: Fast Access To Startup Timers Activation Menu
9 Fast access to startup timers activation menu For fast access to the timer activation menu from the control panel main screen, press and hold the key. This menu is only intended for timer activation. Timers cannot be edited in this menu. Action of timers activation menu keys: Keys Action... - Page 10 “Settings” menu items: In the additional heater mode, the pre-heater operates with the engine and maintains the set fluid temperature. Additional heater mode is OFF. Additional heater automatic operation. If the pre-heater is off, after the vehicle engine starts, the pre-heater will start А...
- Page 11 “Settings” menu items: Pump selection depending on configuration, pre-heater Pump type Bosch pump ✓ ADVERS pump Setting of pre-heater control with the alarm channel. provided the pre- heater is connected to the alarm system and a free channel is Sign channel available).
-
Page 12: Air Heaters Settings Menu
11 Air heaters settings menu PLANAR air heater settings menu: Action of Settings menu keys: Keys Action Navigation through the menu items Exit from this menu to the main screen Change menu item value “Settings” menu items: In the “heater T based” mode, the “Set temperature” of the By T heater temperature sensor located in the heater is used for operation. -
Page 13: Parameters Settings
12 Parameters settings This menu is intended for setting control panel parameters. Action of Parameters menu keys: Keys Action Navigation through the menu items Change menu item value Exit from this menu to the main screen Parameters menu items: Setting of indicator lighting time. By default, the control panel indicator lighting time is 30 seconds. -
Page 14: Time Settings Menu
13 Time settings menu Current time is set and displayed in a 24-hour format. When the control panel power is shut off, the current time is set to zero and the day is reset to Monday. Action of Time menu keys: Keys Action Navigation through the menu items... -
Page 15: Software Version Display Menu
15 Software version display menu In this menu, the information on software versions is displayed. - control panel software version; - product control unit software version; - Product serial number. Press any key to exit. 16 Operating Time settings menu This menu is intended for setting pre-heater operating time with a 5 minute step. -
Page 16: Hydronic Pre-Heater Start
17 Hydronic pre-heater start Start of pre-heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. pre-heater operating time count will be started. Full-screen display current coolant temperature and power supply voltage. When pre-heater operating, enter the pre- heater operating time editing... -
Page 17: Air Heater Start
18 Air heater start Start of heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. Press and hold more then 2 seconds for starting ventilation* (without heating). Temperature sensors display. When the air-heater is operating, enter the air-heater operating time editing menu. -
Page 18: Malfunctions
ATTENTION! Maintenance and repair should only be performed by trained, qualified personnel! Acceptance and packing certificate PU-27 control panel, serial number _________________ Is manufactured and accepted in accordance with the applicable technical documentation and found suitable for operation. Packing performed... - Page 19 Operation manual Air heaters PLANAR-2D-12/24 PLANAR-4DM2-12/24-Р PLANAR-44D-12/24-GP-Р PLANAR-8DM-12/24-Р More information https://www.caravansplus.com.au...
- Page 20 Malfunctions ................................8 Technical Data and Specifications ....................... Production Sales Departments Technical Support ADVERS LLC AUTOTERM LLC AUTOTERM LLC Novo-Sadovaja str. 106, Trikatas 4, Riga, Latvia, LV-1026 Trikatas 4, Riga, Latvia LV-1026 443068, Samara, Russia +371 20110229 +371 25529999 +7(846)263-07-97 sales@autoterm-europe.com...
- Page 21 Dear Customer! Thank you for choosing this heater! We have done everything possible to make this product meet your requirements, while its quality satisfies the best world standards. Introduction The PLANAR heaters are designed to be used: to keep the operator cabin warm; for heating of various confined spaces of vehicles and small ships;...
-
Page 22: Safety Instructions
Safety Instructions Installation of the heater and its component parts must be carried out by specialized organizations approved by the manufacturer. Installation of the heater must be carried out only by specialists in accordance with the installation instructions. The heater may only be used for the purposes specified in this manual. -
Page 23: Heater Controls
Heater Controls PU-5ТМ control panel Heater startup for unlimited duration Regulation of heater capacity Regulation of heated air temperature (if the cabin sensor is installed) LED indication of heater status PU-22TМ control panel Heater startup for unlimited duration Control by capacity/temperature Ventilation mode setting Operation according to one of temperature sensors Set temperature indication... -
Page 24: Kit
If you have any problems, we strongly recommend that you contact authorized service centers, addresses and telephone numbers of which you can find out from the company, the seller or on the website www.autoterm-europe.com Automatic Control Features if for some reason the heater did not start, the start-up process will be automatically repeated. -
Page 25: Maintenance
Maintenance It is recommended to send the heater for regular maintenance and testing to specialized service centers. Many types of repairs and maintenance works on the heater require professional knowledge and special tools. Improper maintenance can result in damage to the heater. We recommend to independently conduct the following services: If the heater is not in use, it is necessary to operate it once a month for 5-10 minutes, including the warm season, to ensure reliable operation of the heater. -
Page 26: Malfunctions
Malfunctions Actions in the event of a malfunction. check for the presence of fuel in the tank and the fuel line downstream of the fuel pump; check the 25A fuses; check for loose connections in connectors and fuse holders (possible oxidation of contacts);... - Page 27 Technical Data and Specifications Models Characteristics PLANAR–8DM–12–P PLANAR–8DM–24–P Rated voltage, V diesel fuel, depending on the ambient temperature Fuel Heating output, kW: Hot air flow, m Fuel consumption, l/h: 0,76 0,42 0,42 Power consumption, W: Start-up and Shutdown manual Mass, kg, max Models Characteristics PLANAR-44D-12-GP-P...
- Page 28 Technical Data and Specifications Models Characteristics PLANAR-2D-12 PLANAR-2D-24 Rated voltage, V diesel fuel, depending on the ambient temperature Fuel Heating output, kW: Hot air flow, m Fuel consumption, l/h: 0,24 0,24 Power consumption, W: Start-up and Shutdown manual Mass, kg, max Models Characteristics PLANAR-4DM2-12-P...
