Operating Manual

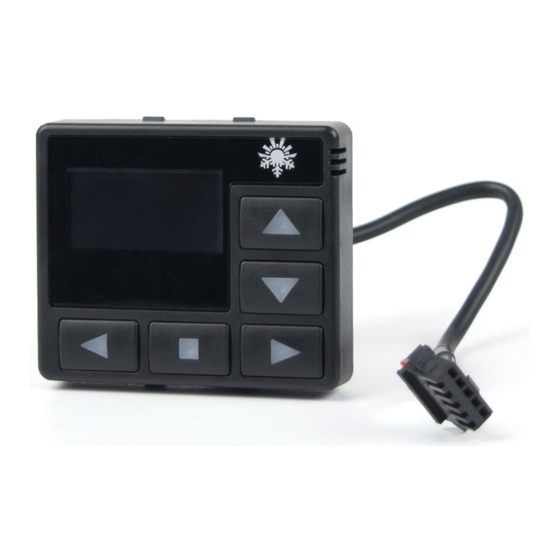

CP-27
Control Panel
Ver. 1.0.0.1.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUTOTERM CP-27

Summary of Contents for AUTOTERM CP-27

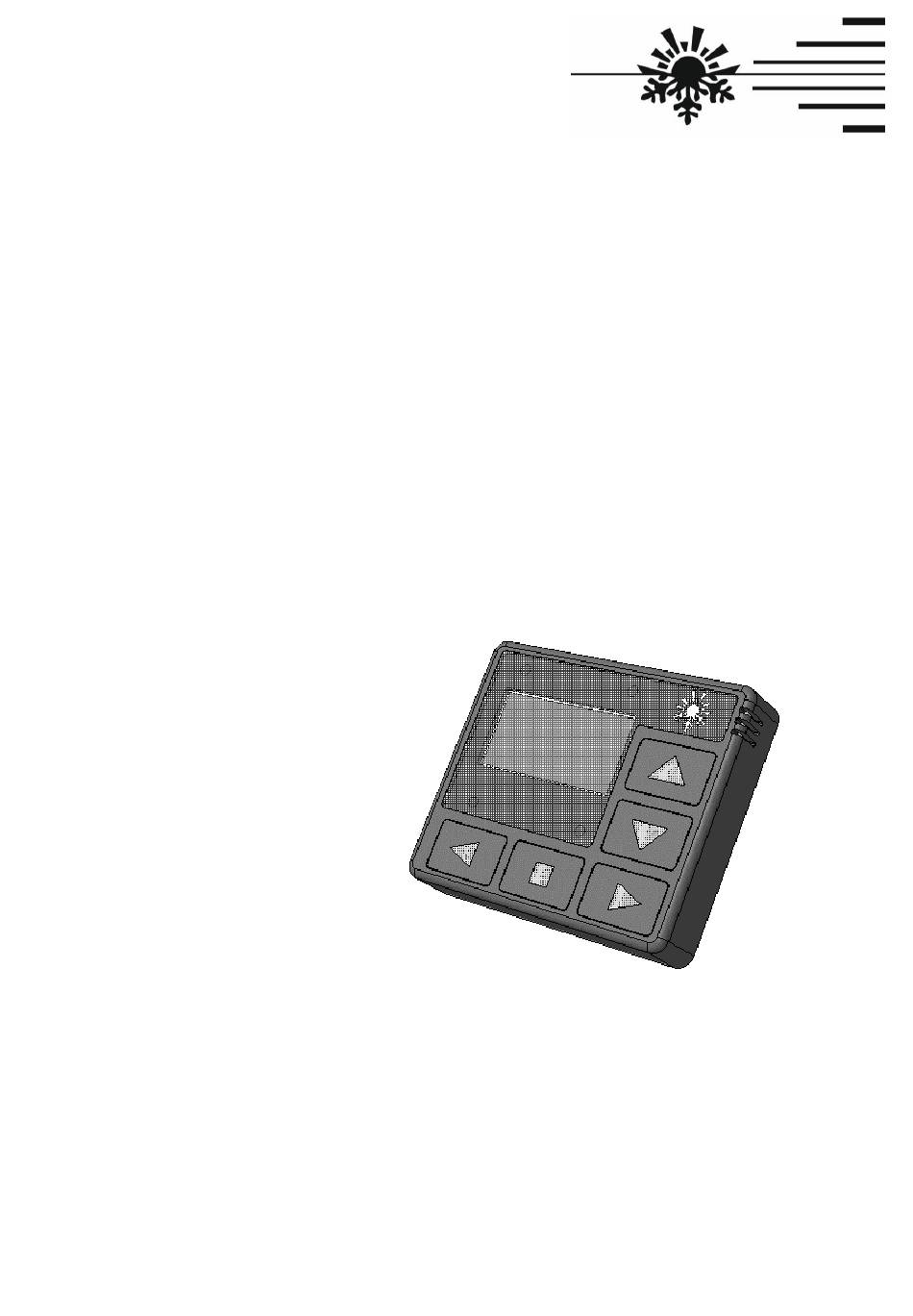

  • Page 1 Operating Manual CP-27 Control Panel Ver. 1.0.0.1.

  • Page 2: Table Of Contents

    Contents Introduction Warranty and liability Safety Purpose Control panel description Starting control panel operation Main menu Timers settings menu Fast access to startup timers activation menu Hydronic pre-heaters settings menu Air heaters settings menu Parameters settings menu Time settings menu Language settings menu Software version display menu Operation Time settings menu...

  • Page 3: Introduction

     Planar 44D  Planar 8D For detailed information on product models supported, please visit www.autoterm.ru In case of any problems, we strongly recommend that you contact authorized service centers, the addresses and phone numbers of which you can obtain from the seller or on the www.autoterm.ru website.

  • Page 4: Safety

    Safety Do not switch on and operate the product in locations where combustible vapors or gases or large amounts of dust can form and accumulate (for example, filling stations or petroleum, fuel, coal, timber or grain storage facilities). Explosion hazard. Do not switch on and operate the product in enclosed or non-ventilated premises.

  • Page 5: Starting Control Panel Operation

    Starting control panel operation After connecting the control panel to the product, the control panel software version and the process of establishing connection with the product will be displayed. After the connection is established, the main screen (current time, day of week and power supply voltage) will be displayed.

  • Page 6: Main Menu

    Main menu Switch to the main menu from the main screen by clicking the Menu icon Description Startup timers menu. Product operating parameters setting menu. (*this menu cannot be used for products without settings). Control panel settings menu. Current time and day settings menu. Language settings menu.

  • Page 7: Timers Settings Menu

    Timers settings menu The control panel allows the startup timers to be programmed. For startup timer setting, the following data must be indicated:  startup time in 24-hour format;  day of week (Monday - Sunday) or select daily startup (ED); ...

  • Page 8: Fast Access To Startup Timers Activation Menu

    Fast access to startup timers activation menu For fast access to the timer activation menu from the control panel main screen, press and hold the key. This menu is only intended for timer activation. Timers cannot be edited in this menu. Action of timers activation menu keys: Keys Action...

  • Page 9: Hydronic Pre-Heaters Settings Menu

    Hydronic pre-heaters settings menu BINAR-5S heater settings menu: “Settings” menu items: Fluid temperature at which the pre-heater switches to standby mode (heater shuts off and pump continues to operate). When the fluid temperature drops, the pre-heater exits standby mode (the Twait preheater heater starts again).
  • Page 10 Additional heater temperature setting. The required temperature value can be set in the +75 to +95 °С range. The default Twait warm up temperature is +85 °C. Setting pump operation in standby mode. In the additional heater mode, after the heater switches to standby mode, the pre-heater shuts off and the pump continues to operate.

  • Page 11: Air Heaters Settings Menu

    Action of Settings menu keys: Keys Action Navigation through the menu items Exit from menu to the main screen Change menu item value Air heaters settings menu Settings menu items: In the “heater T based” mode, the “Set temperature” of the By T heater temperature sensor located in the heater is used for operation.

  • Page 12: Parameters Settings Menu

    Action of Settings menu keys: Keys Action Navigation through the menu items Exit from this menu to the main screen Change menu item value Parameters settings menu This menu is intended for setting control panel parameters. Parameters menu items: Setting of indicator lighting time. By default, the control panel indicator lighting time is 30 seconds.

  • Page 13: Time Settings Menu

    Setting clock adjustment. The clock accuracy may vary slightly due to low temperatures. The required adjustment can be set in Time correction the -59 to +59 seconds per day range. The correction default time is 0. Keys lighting setting.  - keys lighting ON. Keys lighting - keys lighting OFF.

  • Page 14: Language Settings Menu

    Language settings menu This menu is intended for interface language selection. Action of Language menu keys: Action Keys Navigation through the menu items Confirmation of language selection and exit from this menu to the main screen Software version display menu In this menu, the information on software versions is displayed.

  • Page 15: Hydronic Pre-Heater Start

    Action of Operating Time menu keys: Action Keys Value editing. Confirmation of set value and exit from this menu to the main screen Hydronic pre-heater start Start of pre-heater from the main screen or from the temperature sensors screen. The indicator will appear as follows.

  • Page 16: Air Heater Start

    Air heater start Start of heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. Press and hold more then 2 seconds for starting ventilation* (without heating). Temperature sensors display. When the air-heater is operating, enter the air-heater operating time editing menu.

  • Page 17: Malfunctions

    Pre-heater shutoff. Malfunctions Malfunctions occurring during pre-heater operation are coded and automatically displayed on the control panel display. For malfunction reset, press any key. The malfunction codes depend on the product the control panel is connected to. See malfunction code descriptions in the product operating manual.

  • Page 18: Acceptance And Packing Certificate

    Acceptance and packing certificate CP-27 control panel, serial number _________________ Is manufactured and accepted in accordance with the applicable technical documentation and found suitable for operation. Packing performed _____________________ _____________ Surname signature Production date________________________ Stamp Here QC Department...
  • Page 19 Notes...
