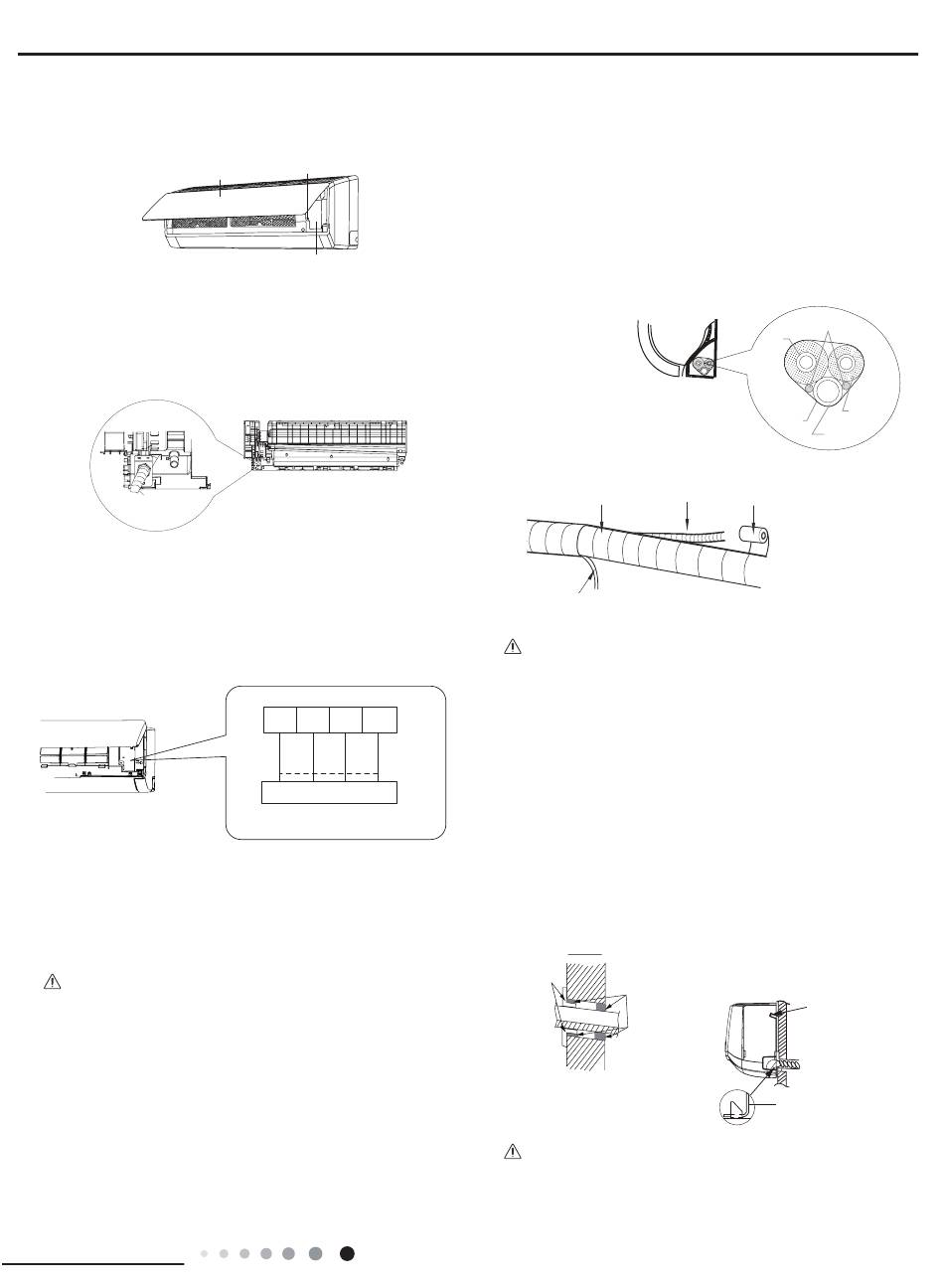

7. Connect Wire of Indoor Unit
(1) Open the panel, remove the screw on the wiring cover
and then take down the cover. (As shown in Fig.11)
Fig.11
(2) Fix the wire crossing board on connection wire sleeve at
the bottom case. Let the connection wire sleeve go through the
wire crossing hole at the back of indoor unit, and then pull it out
from the front.(As shown in Fig.12)
connection wire sleeve
(3) Remove the wire clip; connect the power connection wire
to the wiring terminal; tighten the screw and then fix the power
connection wire with wire clip.(As shown in Fig.13)
(4) Put wiring cover back and then tighten the screw.
(5) Close the panel.
Note:
(1) All wires of indoor unit and outdoor unit should be
connected by a professional.
(2) If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the wire by
yourself.
(3) For the air conditioning unit a with plug, the plug should be
reachable after finishing installation.
(4) For the air conditioning unit without a plug, an air switch
must be installed in the line. The air switch should be all-pole
parting and the contact parting distance should be more than
3/32 inch.
Installation and Maintenance
Screw
Panel
Wiring cover
Fig.12
L1'
S
L2'
white
black
red
(blue)
(brown)
Outdoor unit connection
Fig.13
8. Bind up Pipe
(1) Bind up the connection pipe, power cord and
condensate hose with the band. (As shown in Fig.14)
(2) Reserve a certain length of condensate hose and
power cord for installation when binding them. When binding
to a certain degree, separate the indoor power and then
separate the condensate hose.(As shown in Fig.15)
(3) Bind them evenly.
(4) The liquid pipe and gas pipe should be bound separately at
the end.
Connection pipe
Indoor power cord
Note:
(1) The power cord and control wire can't be crossed
or wound together.
(2) The condensate hose should be bound at the bottom.
G
9. Hang the Indoor Unit
green
(yellow-
green)
(1) Put the bound pipes in the wall pipe and then make them
pass through the wall hole.
(2) Hang the indoor unit on the wall-mounting frame.
(3) Stuff the gap between pipes and wall hole with
(4) Fix the wall pipe.(As shown in Fig.16)
(5) Check if the indoor unit is installed firmly and close to the
wall.(As shown in Fig.17)
Indoor
Wall pipe
Fig.16
Note:
Do not bend the condensate hose too excessively in order to
prevent blocking.
Indoor unit
Fig.14
Drain hose
Band
Outdoor
Sealant
Indoor and
outdoor power cord
Gas
pipe
Liquid
pipe
Band
Drain hose
Fig.15
sealant.
Fig.17
Upper hook
Lower hook of
wall-mounting frame
6
