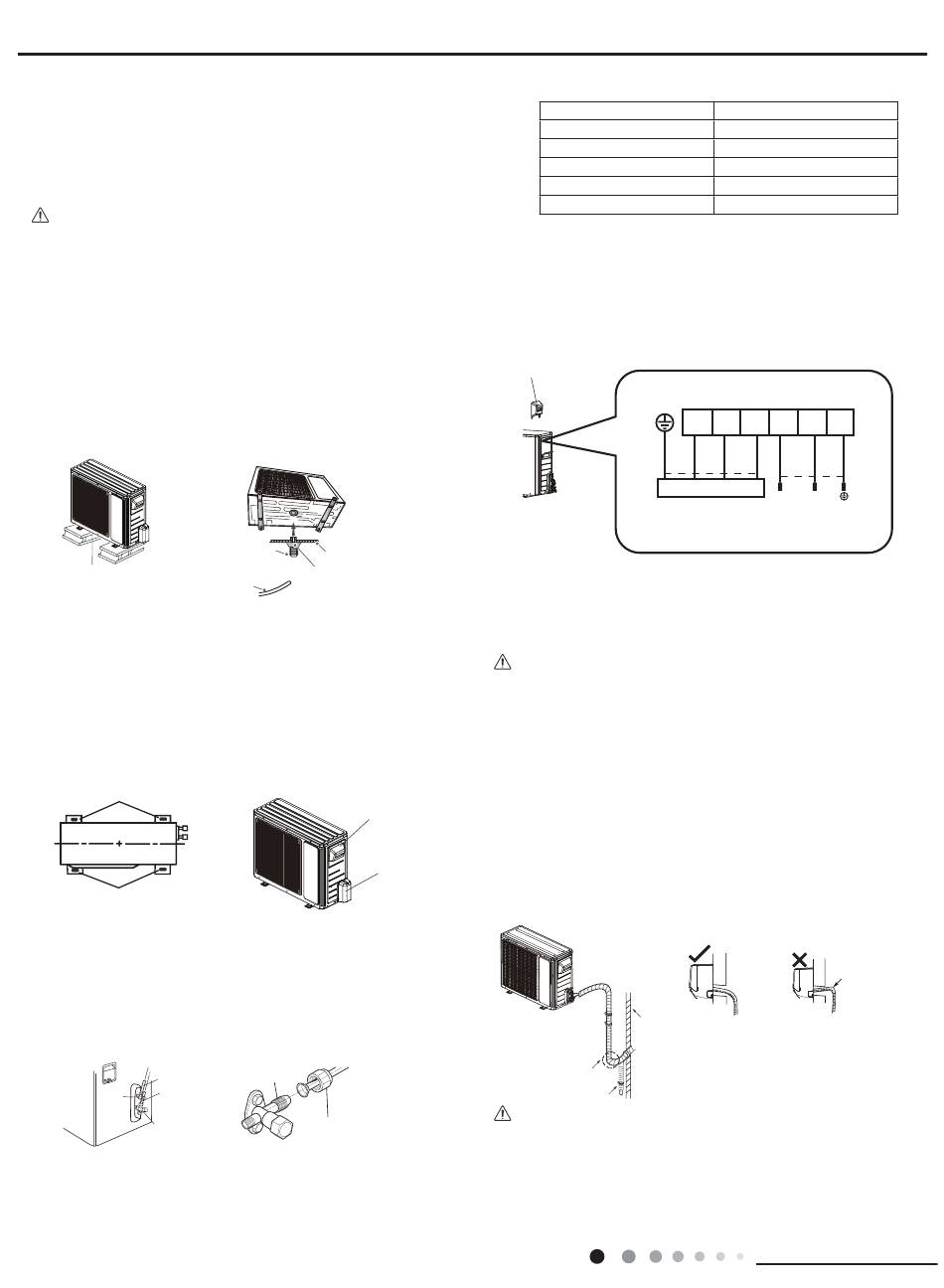

2.9 Installation of Outdoor Unit

1. Fix the Support of Outdoor Unit(Install above local
snow line.)
(1) Select installation location according to the house structure.
(2) Fix the support of outdoor unit on the selected location with
expansion screws.
Note:
(1) Take sufficient protective measures when installing the
outdoor unit.
(2) Make sure the support can withstand at least four times the
unit weight.
(3) The outdoor unit should be installed at least 1 3/16 inch
above the floor in order to install drain joint.(As shown in
Fig.18)
(4) For the unit with cooling capacity of 2300W~5000W,
six expansion screws are needed; for the unit with cooling
capacity of 6000W~8000W, eight expansion screws are
needed; for the unit with cooling capacity of
10000W~16000W, 10 expansion screws are needed.
At least 1 3/16 inch above the floor
Fig.18
2. Install Drain Joint(only for cooling and heating unit)
(1) Connect the outdoor drain joint into the hole on the
chassis.(2) Connect the condensate hose into the drain vent.
(As shown in Fig.19)
3. Fix Outdoor Unit
(1) Place the outdoor unit on the support.
(2) Fix the foot holes of outdoor unit with bolts.
(As show in Fig.20)
Foot holes
Foot holes
Fig.20
4. Connect Indoor and Outdoor Pipes
(1) Remove the screw on the right handle and valve cover of
outdoor unit and then remove the handle and valve cover.
(As shown in Fig.21)
(2) Remove the screw cap of valve and aim the pipe joint at the
bellmouth of pipe.(As show in Fig.22)
Liquid pipe
Liquid
gas pipe
valve
gas valve
Fig.22
(3) Pretighten the union nut by hand.
(4) Tighten the union nut with torque wrench .
7
Drain vent
Chassis
Outdoor drain join t
Drain hose
Fig.19
Handle
Valve cover
Fig.21
Pipe joint
Union nut
Refer to the following table for wrench tightening:
Hex nut diameter(inch)
Φ1/4
Φ3/8
Φ1/2
Φ5/8
Φ3/4
5. Connect Outdoor Electric Wire
(1) Let the connection wire sleeve go through the two holes of
baffle; tighten the connection joint of sleeve and baffle; remove
the wire clip; connect the power connection wire and power
cord to the wiring terminal according to the color; fix them with
screws.(As shown in Fig.23)
Handle
18、24K：
green white
(yellow- (blue)
green)
Indoor unit connection
Fig.23
(2) Fix the power connection wire and power cord with wire clip.
(3) Fix the stopper on handle with screw.
Note:
(1) After tightening the screw, pull the power cord slightly to
check if it is firm.
(2) Never cut the power connection wire to prolong or shorten
the distance.
6. Neaten the Pipes
(1) The pipes should be placed along the wall, bent reasonably
and hidden if possible. Min. semidiameter of bending the pipe
is 3 15/16inch.
(2) If the outdoor unit is higher than the wall hole, you must set
a U-shaped curve in the pipe before pipe goes into the
room, in order to prevent rain from getting into the room.(As
shown in Fig.24)
Wall
U-shaped curve
Fig.24
Drain hose
Note:
(1) The through-wall height of condensate hose shouldn't be
higher than the outlet pipe hole of indoor unit.(As show n in
Fig.25)
(2) Slant the condensate hose slightly downwards. The
condensate hose can't be curved, raised and fluctuant, etc.(As
shown in Fig.26)
Tightening torque(ft·Ibf)
11.10~14.75
22.12~29.50
33.19~40.56
44.24~47.94
51.32~55.31
L1' S L2' L2 L1 G
red black white green
black (brown) (brown) (blue) (yellow-
green)
L2 L1
POWER
The drain hos
can't raise
upwards
Fig.25
