2. Installation

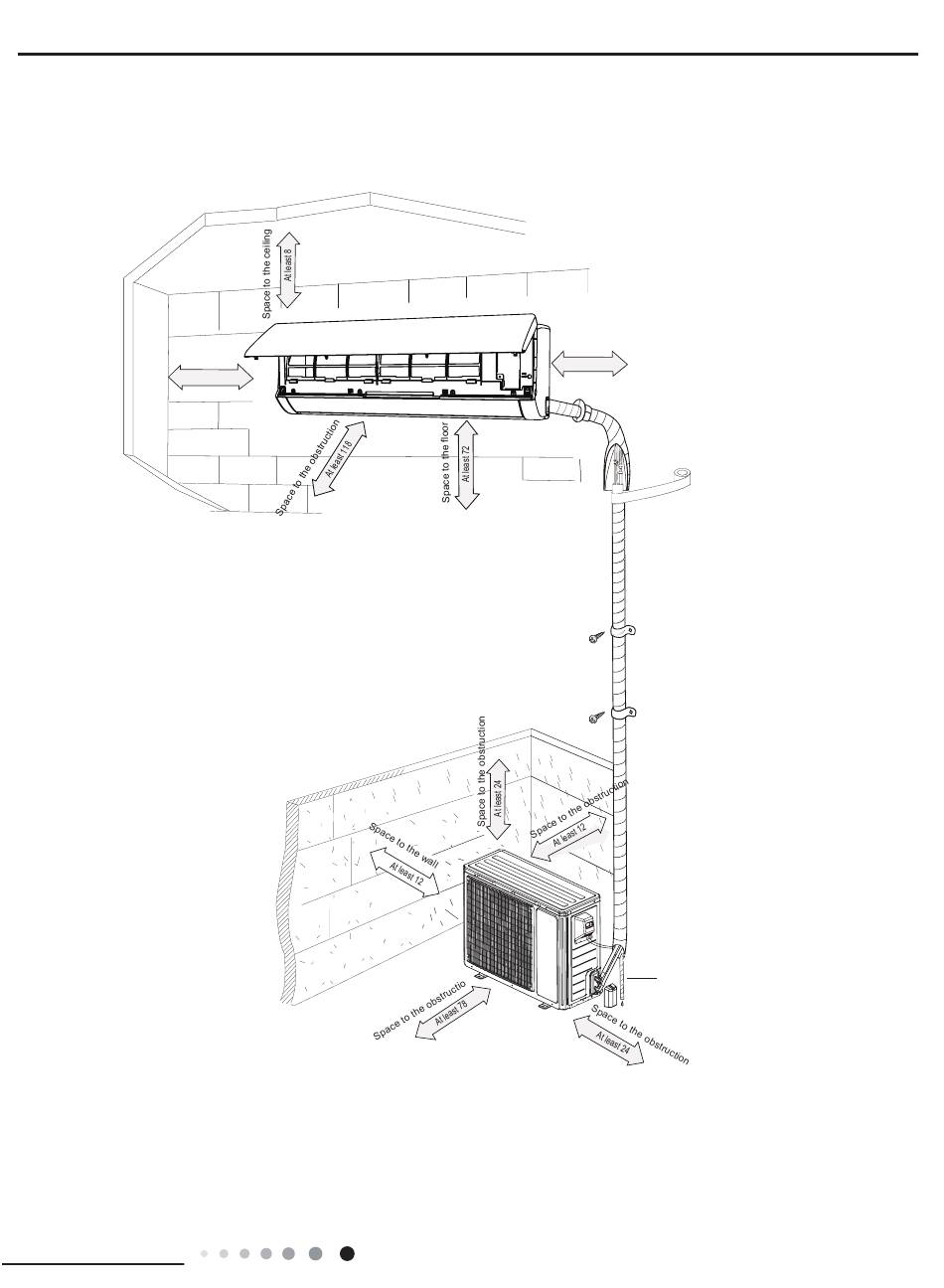

2.1 Installation Dimension Diagram

Space to the wall
Space to the wall
At least 6
At least 6
Condensate pipe
unit:inch
1
Installation and Maintenance
