2. Installation

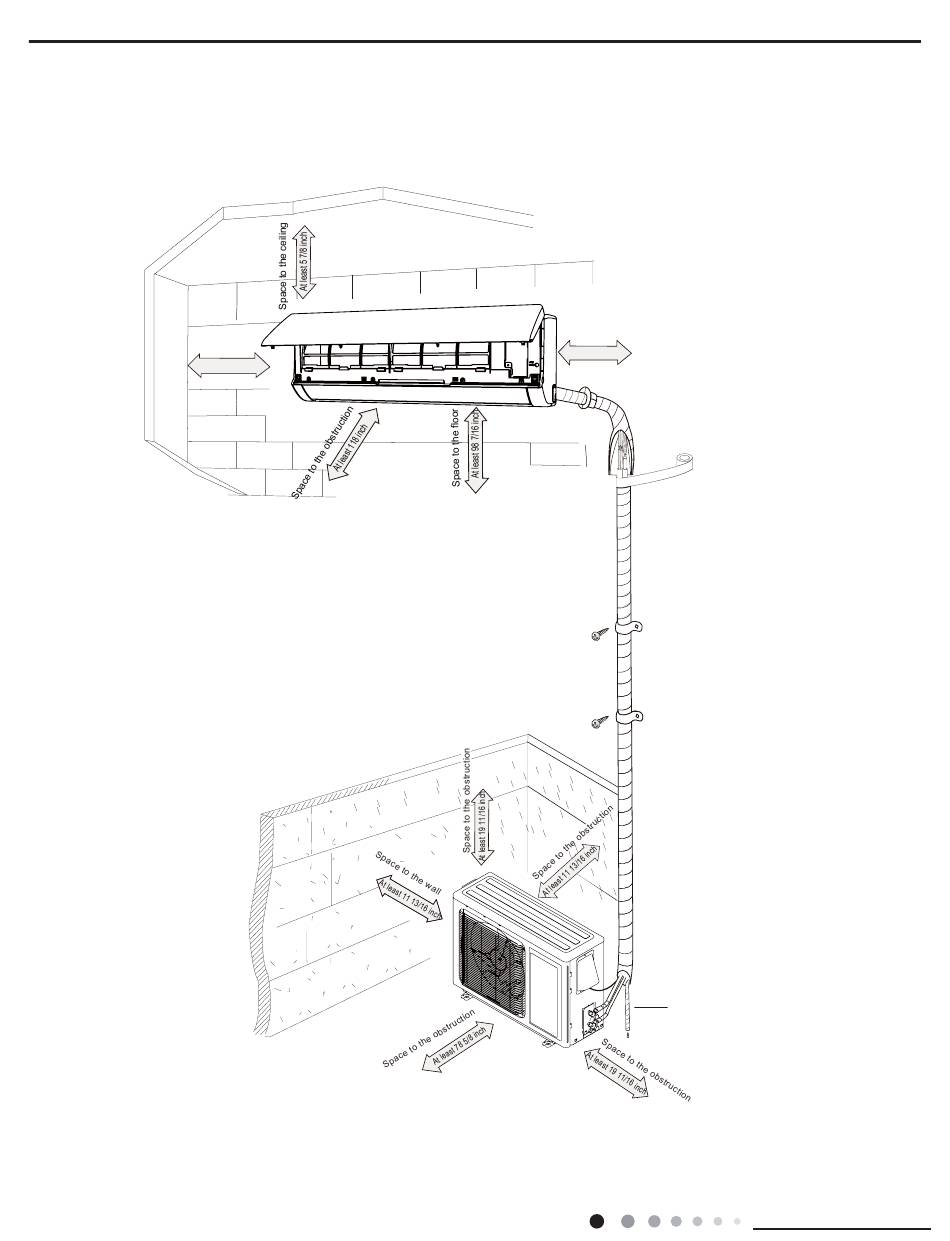

2.1 Installation Dimension Diagram

Space to the wall
Space to the wall
At least 5 7/8 inch
At least 5 7/8 inch
Condensate pipe
1
