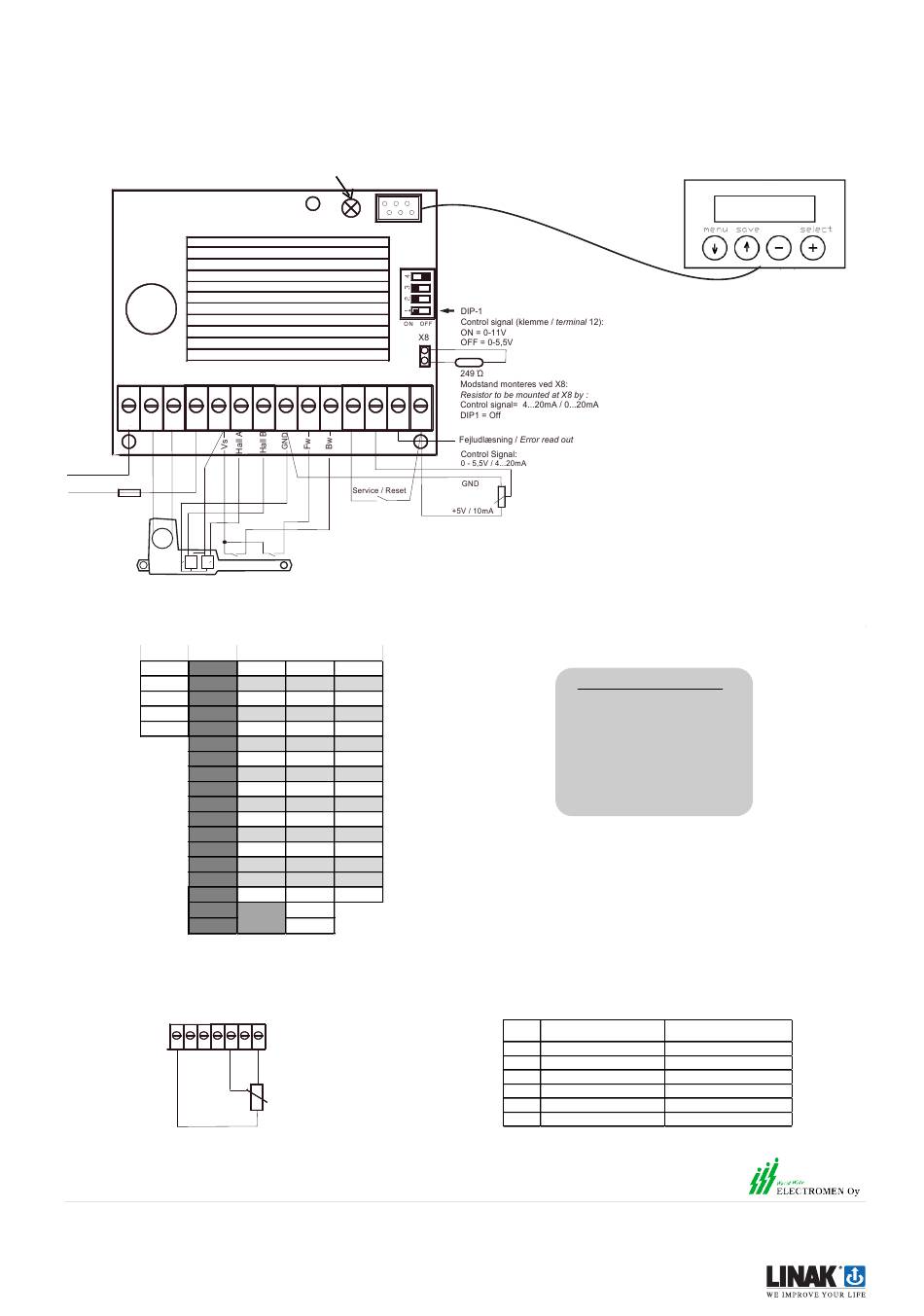

Q U I C K G U I D E

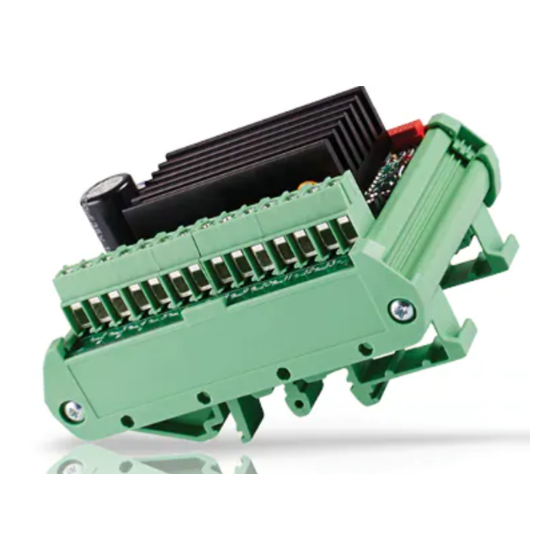

Motorstyring / Motor Controller
Type TR-EM-288-SPF
Tilslutning /
Connection
EM-288 PCB
1
2
3
4
5
0V -
24V+
fuse
SUPPLY
M
H
H
Tilslutning af aktuatorer ved hjælp af ledningsfarver
Connection of Actuators by the help of wire colors
Terminal
1
0V -
2
Actua tor -
Actua tor +
3
4
24V +
5
6
7
8
9
10
11
12
13
14
4 +
1
-
Tilslutning af potentiometer til manuel betjening /
Connection of a potentiometer controled by hand
8 9 10 11 12 13 14
Specifikationerne kan ændre sig uden forudgående varsel. Det er brugerens ansvar at fastslå
LINAK produktets egnethed til en specifik applikation. LINAK vil ved levering ombytte/reparere
defekte produkter, som er dækket af garanti, hvis de straks returneres til LINAK Danmark A/S.
Der påtages intet ansvar udover denne ombytning/reparation.
Specifications subject to change without prior notice. It is the responsibility of the product user to
determine the suitability of the products for a specific application. LINAK Danmark will at point of
delivery replace/repair defective products covered by the warranty if promptly returned
to LINAK Danmark. No liability is assumed beyond such replacement/repair.
Fejl LED / Error LED
6
7
8
9
10
11
12
13
LA23 Hall
LA31 Hall
LA36 Hall
BL
BL
BL
BR
R
BR
R
OR
R
GU
GU
GR
GR
GU
S
S
+ BR
EM-311-DK
- S
14
Farvekoder / Color codes
R
= Rød / Red
S
= Sort / Black
OR = Orange
BL = Blå / Blue
BR = Brun / Brown
GR = Grøn / Green
GU = Gul / Yellow
HV = Hvid / White
Note 1)
Til aktuatorer produceret før d.15-10-2014
anvend Hvid leder.
Use the White wire for Actuators produced
before 15-10-2014.
Fejludlæsning /
Blink/
Betydning
Flashes
Flashes
1
Strømgrænse nået (overstrøm)
2
Fejl på tilbagemeldingen
3
Slået fra pga. varme
4
Slået fra pga. overstrøm
5
Time out
6
Fejl under læringsprocedure
Produceret af /
Forhandler /
LINAK Danmark A/S
Mønstedsvej 9
DK-8600 Silkeborg
Tlf. +45 86803611 - www.linak.dk
TR-EM-236
NB! Styringen skal være
tilsluttet forsyningsspænding
for indlæsning af parameter.
NB! The PCB has to be
connected to power supply
before entering the parameters
is possible.
Error read out
M eaning
Power limit reached (overcurrent)
Pulse lost
Cut off on over heat protection
Cut off on overvoltage
Time out
Learn corrupted
Produced by
Electromen OY
Distributor:
