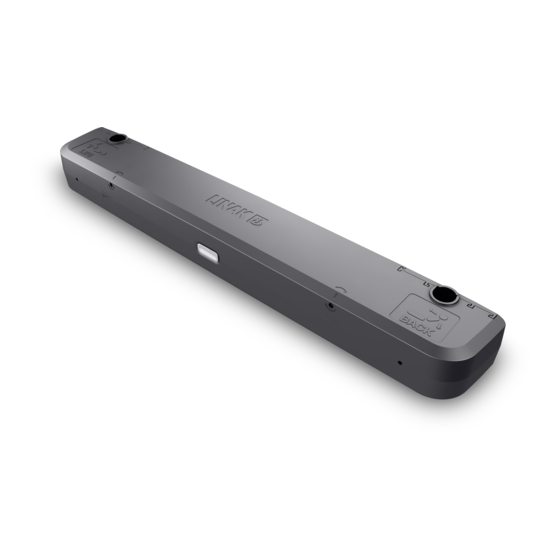

TWINDRIVE
TD4 Standard
®
User manual
LINAK.COM/HOMELINE
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOMELINE TWINDRIVE TD4 Standard and is the answer not in the manual?

Questions and answers

Related Manuals for Linak HOMELINE TWINDRIVE TD4 Standard

Summary of Contents for Linak HOMELINE TWINDRIVE TD4 Standard

  • Page 1 TWINDRIVE TD4 Standard ® User manual LINAK.COM/HOMELINE Page 1 of 32...

  • Page 2: Table Of Contents

    Mounting instructions and parallel tolerance ................21 Welding instructions ........................22 Functional description ........................23 Labels ............................. 24 Disposal of LINAK products ......................25 Main groups of disposal ........................ 26 Disposal of batteries ........................26 Drawing appendix .......................... 29 Addresses ............................32...

  • Page 3: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 4: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 5: Safety Issues

    Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. Safety issues The builder of the equipment shall ensure that the use of the component complies with relevant standards –...
  • Page 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
  • Page 7 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

  • Page 8: Before Installation, Reinstallation Or Troubleshooting

    Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Page 8 of 32...

  • Page 9: Only For Eu Markets

    Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 10: Informations Importantes

    Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit.

  • Page 11: Avant L´installation, Ré-Installation Ou Le Dépannage

    Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Page 11 of 32...

  • Page 12: Seulement Pour Les Marchés Au Sein De L´ue

    Seulement pour les marchés au sein de l´UE: Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié...

  • Page 13: Repairs

    Products under warranty must also be returned to authorised LINAK service centres. Further information on LINAK HOMELINE warranty can be found on the LINAK website www.linak.com/warranty.
  • Page 14 Smedevænget 8 DK - 6430 Nordborg ® Herewith declares that LINAK dual actuator system TWINDRIVE TD410000B****00 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) Complies with Low Voltage Directive 2014/35/EU according to the standard:...

  • Page 15: Misc. On The Twindrive ® Td4 Standard System

    This system is a TWINDRIVE system developed for leisure beds and for indoor use in private homes. Warranty This HOMELINE product is subject to warranty pursuant to the terms of LINAK HOMELINE Warranty Paper, available on the LINAK website www.linak.com/warranty.

  • Page 16: Mounting Instructions For The Twindrive ® System

    Mounting instructions for the TWINDRIVE system: ® Mounting is made by pushing the TD4 unit into the bed bracket and thereafter slide the closing devices on. It is IMPORTANT to be completely sure that the closing devices are in place before using the TD4. Do not drive the TD4 Standard system without the closing devices mounted The bed brackets must have a smooth surface without burs and welding blobs in the area where the TD4 Standard is mounted.

  • Page 17: Start-Up (How To Pair Bluetooth ® Connection)

    Bed Light will flash to indicate this. Take your LINAK hand control and press the two top buttons at the same time. Now the light will give a long blink and indicate that the control and the TD4 are paired up.

  • Page 18: Pairing Your Smartphone Or Your Tablet

    2. Pairing your smartphone or your tablet Enable Bluetooth on your smartphone/tablet. Open the Bed Control App. Connect the TD4 to the mains via the ® mains cable. Now the TD4 will be in pairing mode for 3 minutes and the Under Bed Light flashes to indicate this. The smartphone/tablet and the TD4 will automatically pair and the app display the operation page.

  • Page 19: Pairing Another Device Later

    3. Pairing another device later If you want to connect another control or a smartphone/tablet to the TD4 later, just disconnect the TD4, wait 1 minute and connect the TD4 to the mains to get it in pairing mode again. See instructions 1 or 2 above to find out how to pair the device, you want.

  • Page 20: Mechanical Emergency Lowering

    Mechanical Emergency lowering Emergency lowering is meant for lowering the bed if a power failure occurs and the bed needs to be driven down into horizontal position. Disconnect the TD4 from the mains. Take the hex key on the side of the TD4. Underneath the TD4 are two gaps for mechanical lowering –...

  • Page 21: Cable Strain Relief

    Cable strain relief It is important to use the cable relief on the TD4. By using the relief you avoid that the mains cable plug is pulled out of the TD4 resulting in a malfunction. Depending on the thickness of the cable, you can choose to lead the cable through all 3 or just around the middle relief.

  • Page 22: Mounting Instructions And Parallel Tolerance

    TD4 Twist Bracket - Mounting instructions and parallel tolerance When bed is horizontal (starting position) : + 0.3 The diameter of the shaft must be Ø25.2 - 0.2 Page 22 of 32...

  • Page 23: Welding Instructions

    TD4 Twist Bracket - Welding instructions: No bracket or welding outside this area 52” from vertical axis. The dimension of the bracket including welding may not exceed 38 mm. To maintain the correct rotation angle of the head-rest and the foot-rest it is important that the Twist bracket is mounted and welded according to the above instructions.

  • Page 24: Functional Description

    Functional description Hand Control HC05BL: Up – down back motor Up – down leg motor Common operation up/down (option) Light Button Hand Control HC10BL/HB10BL: Up – down back motor Up – down leg motor Common operation up/down (option) Light Button Hand Control HC40BL Up –...
  • Page 25 Label for TD4 Standard Label for HC10BL Label for HC05BL Label for HB10BL Label for HC40 FRAME Standard Label for HC40 TWIST Standard Page 25 of 32...

  • Page 26: Disposal Of Linak Products

    Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As examples of main groups within waste fractions we can mention: Metal, plastic, cable shoe, combustible waste and collection for recovery.

  • Page 27: Main Groups Of Disposal

    Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through the local recycling system. Please do not throw used or leaking batteries in normal household waste or in nature.

  • Page 28: Drawing Appendix

    DRAWING APPENDIX TWINDRIVE TD4 Standard system ® Page 28 of 32...
  • Page 29 Hand Control HC05BL Hand Control HC10BL Drawing No.: HB12RF0100_SALG Drawing No.: HB12RF0100_SALG Hand Control HB10BL Page 29 of 32...
  • Page 30 HC40 FRAME Standard HC40 TWIST Standard Page 30 of 32...
  • Page 31 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
  • Page 32 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
