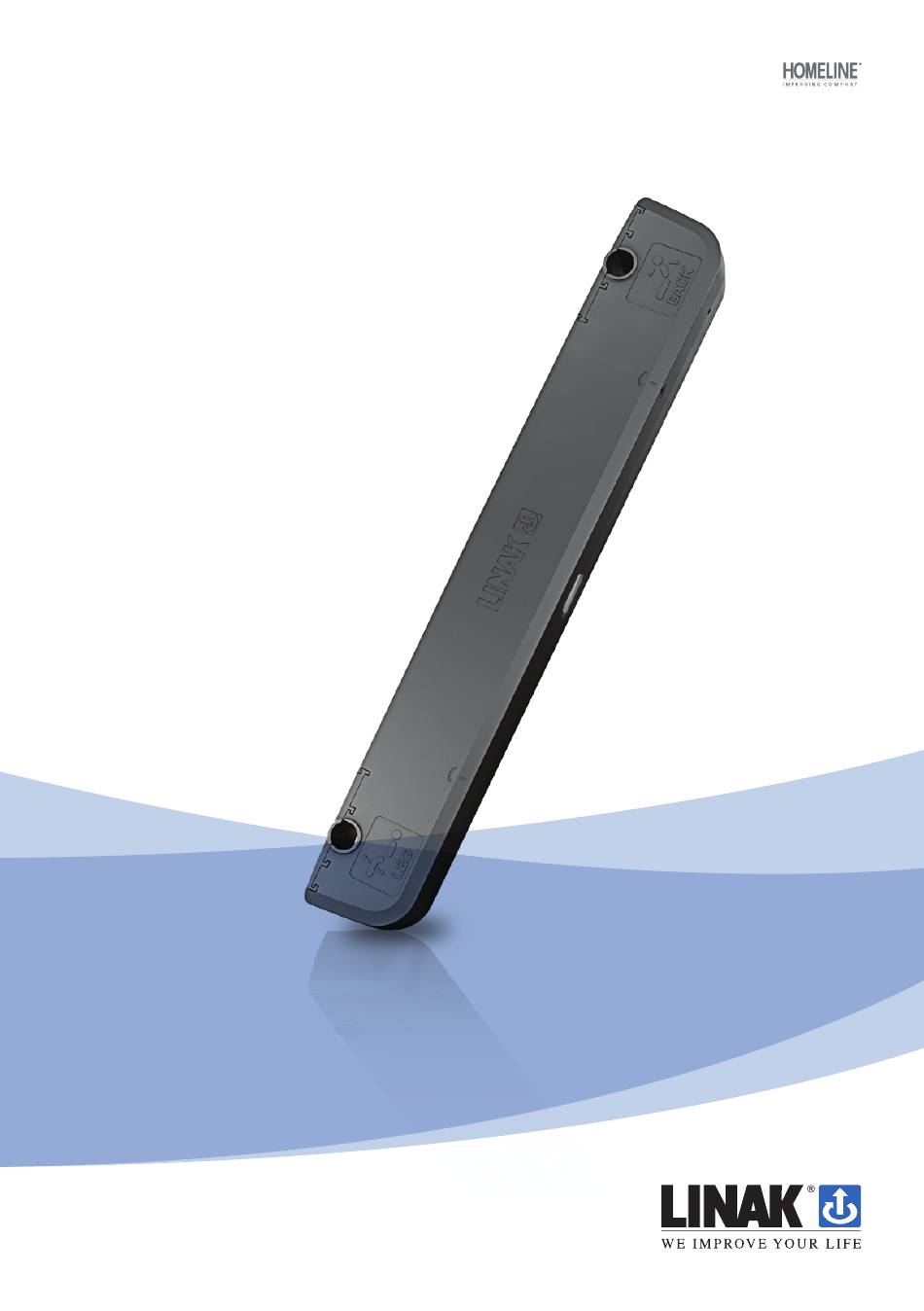

- Page 1 TWINDRIVE TD5 Standard ® User manual LINAK.COM/HOMELINE Page 1 of 31...
-
Page 2: Table Of Contents
Mounting instructions and parallel tolerance ................21 Welding instructions ........................22 Functional description ........................23 Labels ............................. 24 Disposal of LINAK products ......................25 Main groups of disposal ........................ 26 Disposal of batteries ........................26 Drawing appendix .......................... 27 Addresses ............................31... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Safety Issues
Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. Safety issues The builder of the equipment shall ensure that the use of the component complies with relevant standards –... - Page 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
- Page 7 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
-
Page 8: Before Installation, Reinstallation Or Troubleshooting
Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Page 8 of 31... -
Page 9: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 10: Informations Importantes
Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit. -
Page 11: Avant L´installation, Ré-Installation Ou Le Dépannage
Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Page 11 of 31... -
Page 12: Seulement Pour Les Marchés Au Sein De L´ue
Seulement pour les marchés au sein de l´UE: Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié... -
Page 13: Repairs
Repairs In order to avoid the risk of malfunction, all TWINDRIVE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. TWINDRIVE under warranty must also be returned to authorised LINAK workshops. -
Page 14: Misc. On The Twindrive ® Td5 Standard System
There is 36 months’ warranty on the TWINDRIVE products against manufacturing faults calculated from the production ® date of the individual products (see label). The LINAK warranty is only valid in so far as the equipment has been used and ®... -
Page 15: Mounting The Td5 Standard
Mounting the TD5 Standard Mounting is made by pushing the TD5 unit into the bed bracket and thereafter slide the closing devices on. It is IMPORTANT to be completely sure that the closing devices are in place before using the TD5. Recommendations •... -
Page 16: Cable Strain Relief
Cable strain relief It is important to use the cable relief on the TD5. By using the relief you avoid that the mains cable plug is pulled out of the TD5 resulting in a malfunction. Depending on the thickness of the cable, you can choose to lead the cable through all 3 or just around the middle relief. -
Page 17: Start-Up (How To Pair Bluetooth ® Connection)
2. TD5 is in pairing mode for three minutes and Under Bed Light flashes to indicate this. hand control at the same time. 3. Press the two top buttons on LINAK ® The Under Bed Light gives one long flash to indicate that the hand control and the TD5 are paired up. -
Page 18: Pairing Your Smartphone Or Your Tablet
Pairing your smartphone or tablet 1. Enable Bluetooth on smartphone/tablet. ® 2. Open Bed Control App. 3. Connect TD5 to mains via mains cable. 4. TD5 is in pairing mode for three minutes and Under Bed Light flashes to indicate this. 5. -
Page 19: Pairing Another Device Later
Pairing another device later It is possible to connect another control or a smartphone/tablet to the TD5 later. 1. Disconnect TD5 from mains. 2. Wait 1 minute. 3. Reconnect TD5 to mains to get it in pairing mode again. 4. Follow instrutions above to pair other devices. Previously paired devices will not be deleted until a maximum of 8 devices are paired. -
Page 20: Mechanical Emergency Lowering
Mechanical emergency lowering Emergency lowering is meant for lowering the bed if a power failure occurs and the bed needs to be driven down into horizontal position. 1. Disconnect TD5 from mains. 2. Take hex key on side of TD5. Underneath the TD5 are two gaps for mechanical lowering. -
Page 21: Mounting Instructions And Parallel Tolerance
TD5 Twist Bracket - Mounting instructions and parallel tolerance When bed is horizontal (starting position) : + 0.3 The diameter of the shaft must be Ø25.2 - 0.2 Page 21 of 31... -
Page 22: Welding Instructions
TD5 Twist Bracket - Welding instructions: No bracket or welding outside this area 52” from vertical axis. The dimension of the bracket including welding may not exceed 38 mm. To maintain the correct rotation angle of the head-rest and the foot-rest it is important that the Twist bracket is mounted and welded according to the above instructions. -
Page 23: Functional Description
Functional description Up – down back motor Hand Control HB10 Wireless Up – down leg motor Common operation up/down (option) Light Button Up – down back motor Up – down leg motor Hand Control HC05 Wireless Common operation up/down (option) Light Button Up –... -
Page 24: Labels
Label for TD5 Standard Label for HC05BL Label for HC10BL Label for HB10BL Label for HC40 FRAME Standard Label for HC40 TWIST Standard Page 24 of 31... -
Page 25: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As examples of main groups within waste fractions we can mention: Metal, plastic, cable shoe, combustible waste and collection for recovery. -
Page 26: Main Groups Of Disposal
Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through the local recycling system. Please do not throw used or leaking batteries in normal household waste or in nature. -
Page 27: Drawing Appendix
DRAWING APPENDIX TWINDRIVE TD5 Standard system ® Page 27 of 31... - Page 28 Hand Control HC05BL Hand Control HC10BL Drawing No.: HB12RF0100_SALG Drawing No.: HB12RF0100_SALG Hand Control HB10BL Page 28 of 31...
- Page 29 HC40 FRAME Standard HC40 TWIST Standard Page 29 of 31...
- Page 30 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 31: Addresses
Therefore, LINAK cannot guarantee the correct and actual status of said information on its products. While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product.
