If you wish to assign a channel, use the SET-button to select the
appropriate function, then move the stick, rotary knob or switch which you
wish to assign. Make sure beforehand that the transmitter control in
question is already assigned to a channel at the transmitter.
Note: automatic detection only works reliably if only one channel per
transmitter control is assigned at the transmitter. For example, if separate
channels are assigned to each aileron at the iGyro, use buttons I and II for
the assignment procedure.
The settings can be checked in the GYRO SETTINGS menu: select the
corresponding axis and move your gain slider or rotary knob: the Gain
display should now vary between 0% and 100%. The flight mode switch
must shift the number following FM between 1 - 2 - 3.

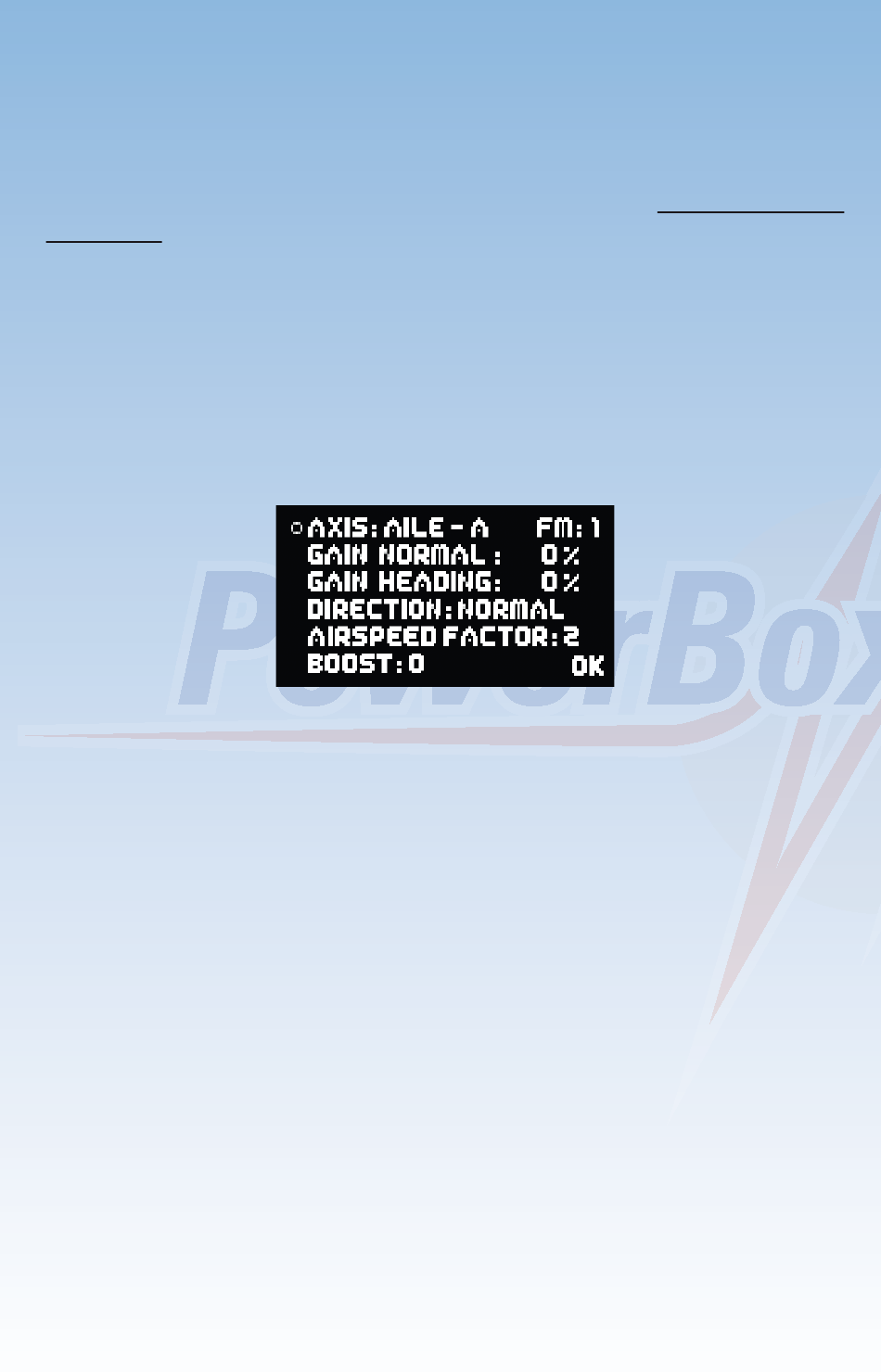

5.6. Settings in the Gyro Settings menu
- AXIS:
At this point you select the axis you wish to adjust. There are 2 x ailerons
(AILE), 2 x elevators (ELEV) and 2 x rudder (RUDD). However, the
second rudder can only be used if the Bus output is active. For example:
in conjunction with an SRS PowerBox, a PowerBus or a Futaba Bus
system.
- FM:
The position of the flight mode switch is displayed at this point.
- Gain Normal:
Here you see the Normal gain setting for the axis you have set up. At this
point it is possible at any time to alter the gain manually using the
SensorSwitch. Changing this value manually automatically erases the
gain channel assignment in the Input Mapping menu.
