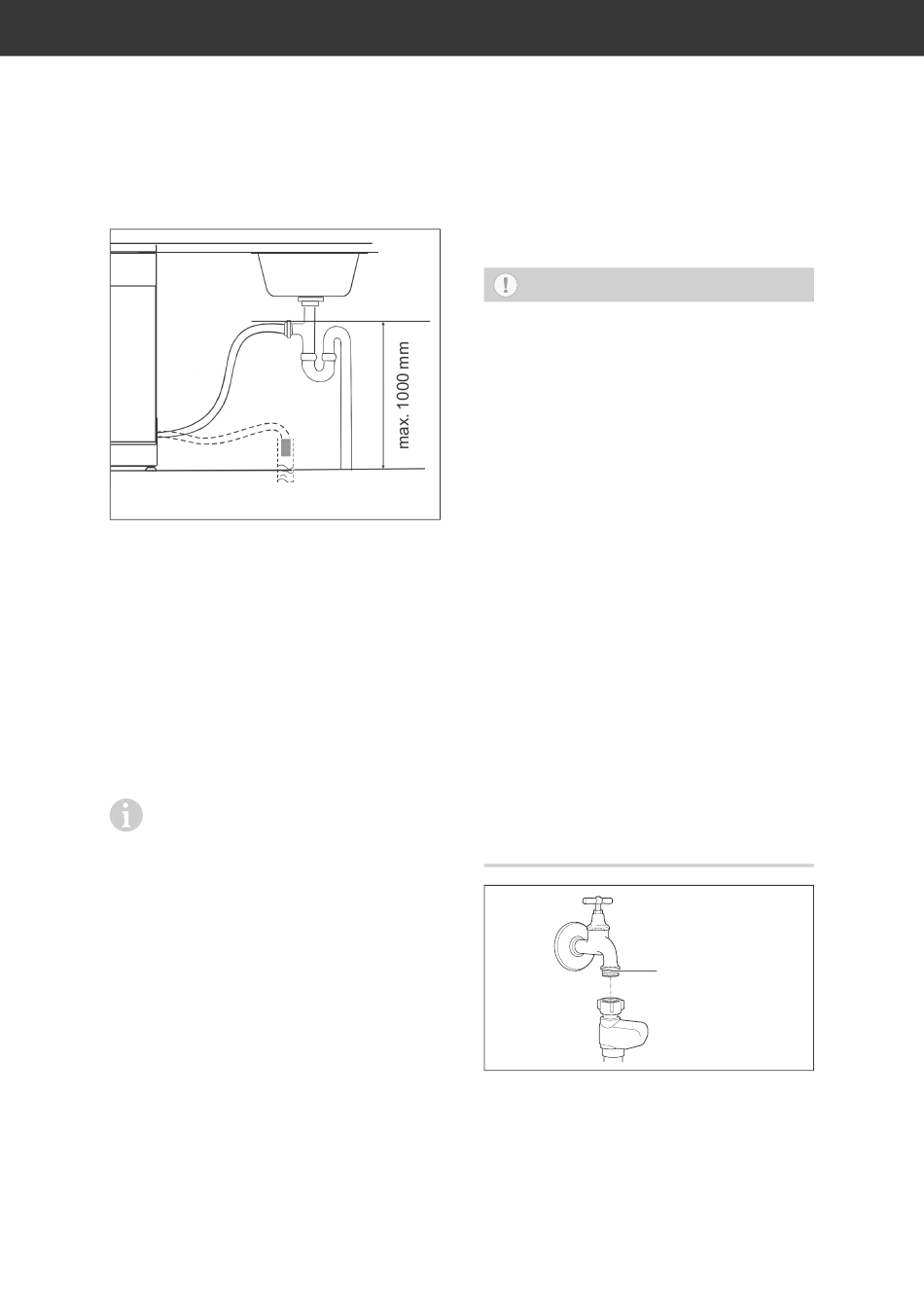

Page EN-30 Installation, fitting, connection
B
A
Ø 40 mm
The outlet hose (26) can be connected in two
ways:
– Option A:
Connection to a floor drain.
– Option B:
Direct connection to the odour seal (siphon)
of your washing/dishwashing basin.
The outlet hose must be a maxi-
mum of 1000 mm above the floor.
Technical measures must be taken for con-
nection. For this reason, only plumbing ex-
perts or members of our service team may
connect the outlet hose (see page EN-40).
There is a washer in an unused exhaust
manifold that prevents water from escaping
here. This washer must be replaced by a seal
ring before connecting the outlet hose.

Connecting the inlet hose

NOTICE
Risk of damage!
The dishwasher is set up for a water
pressure of 0.4 bar to 10 bar (0.04 MPa
to 1.0 MPa). Water must always be able
to run freely into the dishwasher, oth-
erwise this can damage the appliance.
If the water pressure is higher than this,
■
install a pressure reducer. If in doubt,
enquire about the water pressure
with the water supply company.
Never connect the appliance to the
■
water tap or the mixing arm of a wa-
ter heater (continuous fl ow heater,
pressure-free boiler etc.).
Ensure that the inlet hose is not
■
kinked and is carefully connected.
Do not cut through the inlet hose.
■
It contains electrical components.
If the inlet hose is damaged, have it
repaired by a specialist ("Service" see
page EN-40).
Do not use old or previously installed
■
inlet hoses.
3
¾ inch
Inlet hose
